- Page 1 LO W-VO LTAG E L I N E A R Installation Guide Models CM-LS0 HW-LS0...
-
Page 2: Table Of Contents
Turn power OFF at circuit breaker or remove fuse. Damage to this product caused by wiring with power on voids the warranty. FCC/IC Information For FCC/IC information, please visit: www.lutron.com/fcc-ic P/N 3662562 Rev A 2 | LS0 INSTALLATION GUIDE © 2021 Lutron Electronics Co., Inc. All rights reserved. -
Page 3: Product Overview

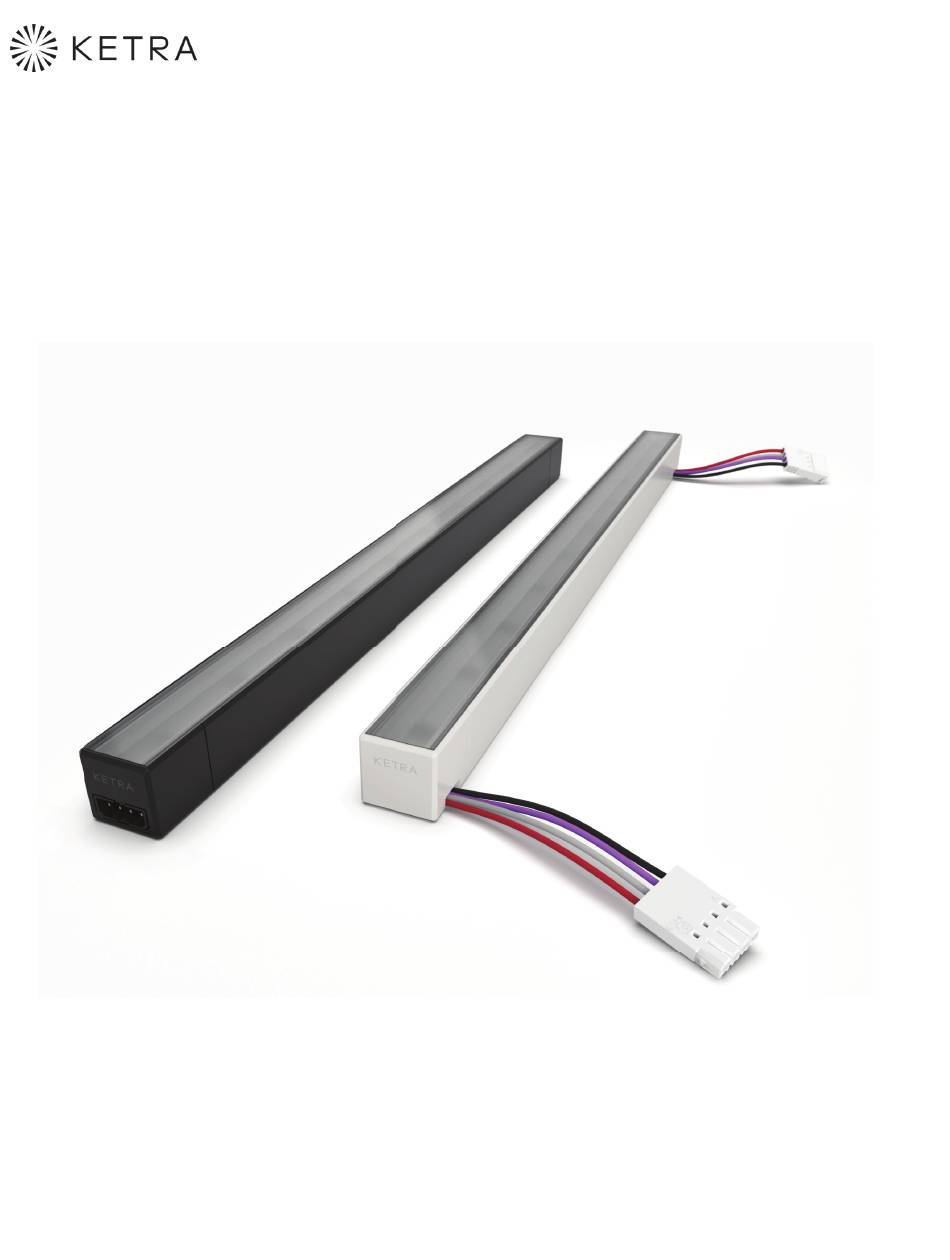

Flexible Connector output and Straight Connector output and Straight Connector input Flexible Connector input * Available in custom order * Available in custom and standard order P/N 3662562 Rev A © 2021 Lutron Electronics Co., Inc. All rights reserved. 3 | LS0 INSTALLATION GUIDE... -
Page 4: Included Components
Included Components Other System Components (ordered separately): LS0 Linear Segment X96 Ketra Controller 4-wire cable ex. QSH-CBLP-M-500 Screws & Mounting Bracket Adapter Type A Adapter Type B Right Angle End Covers P/N 3662562 Rev A 4 | LS0 INSTALLATION GUIDE © 2021 Lutron Electronics Co., Inc. All rights reserved. -
Page 5: Pre-Installation
The X96 Ketra controller provides low-voltage power and communication to the LS0 luminaires. The X96 needs to be between the AC mains power source and the run of LS0 linear. Mount such that the total cable length from the X96 controller to the last LS0 segment is no more than 50 ft (15.2 m). - Page 6 120-277 V~ 60 Hz Mains Supply 120-277 V~ 60 Hz Mains Supply Star or parallel wiring installations are not supported DO NOT WIRE IN PARALLEL P/N 3662562 Rev A 6 | LS0 INSTALLATION GUIDE © 2021 Lutron Electronics Co., Inc. All rights reserved.
- Page 7 • 4-conductor cable (16 AWG or 12 AWG [1.5 mm or 3.5 mm ]) (ex. QSH-CBLP-M-500) • 10 in (0.3 m) to 15 ft (4.6 m) or 24 ft (7.3 m) LS0 linear fixtures • Adapters • Right angle covers P/N 3662562 Rev A ©...
-
Page 8: Installation
Determine Product Location Identify the location of each LS0 luminaire. Each segment box in a run will be labeled and numbered in the order of the run layout. i.e., Segment #1 of 3, Segment #2 of 3, Segment #3 of 3 in a run with 3 segments. -
Page 9: Connect Linears
Apply power to the X96 controller. S T E P 5 Configure Device using the Design Software This step will be completed by a trained Lutron engineer. P/N 3662562 Rev A © 2021 Lutron Electronics Co., Inc. All rights reserved. 9 | LS0 INSTALLATION GUIDE... -
Page 10: Example System Connection
Example System Connection Troubleshooting Ketra’s LS0 linear should power on to a default white state. If it powers on to some other color, that means there’s a problem in the installation conditions. See the table below for the meaning of each color. -
Page 11: Warranty & Tech Support
For questions and technical support, please contact: (844) 588-6445 ketrasupport@lutron.com Ketra is a trademark or registered trademark of Lutron Electronics Co., Inc. in the US and/or other countries. P/N 3662562 Rev A © 2021 Lutron Electronics Co., Inc. All rights reserved. - Page 12 6231 E. Stassney Ln. www.ketra.com Bldg. 13, Suite 400 512.872.4349 Austin, TX 78744 P/N 3662562 Rev A...
