Videx 3676 Installation Manual

3600 Series
Art. 3676

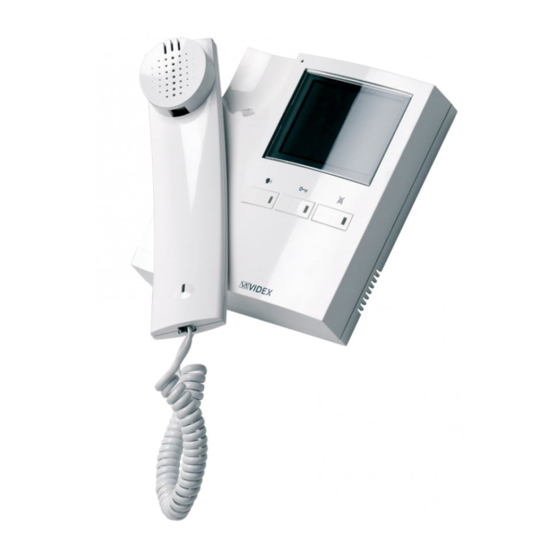

Digital videophone for VX2200 Digital System
161

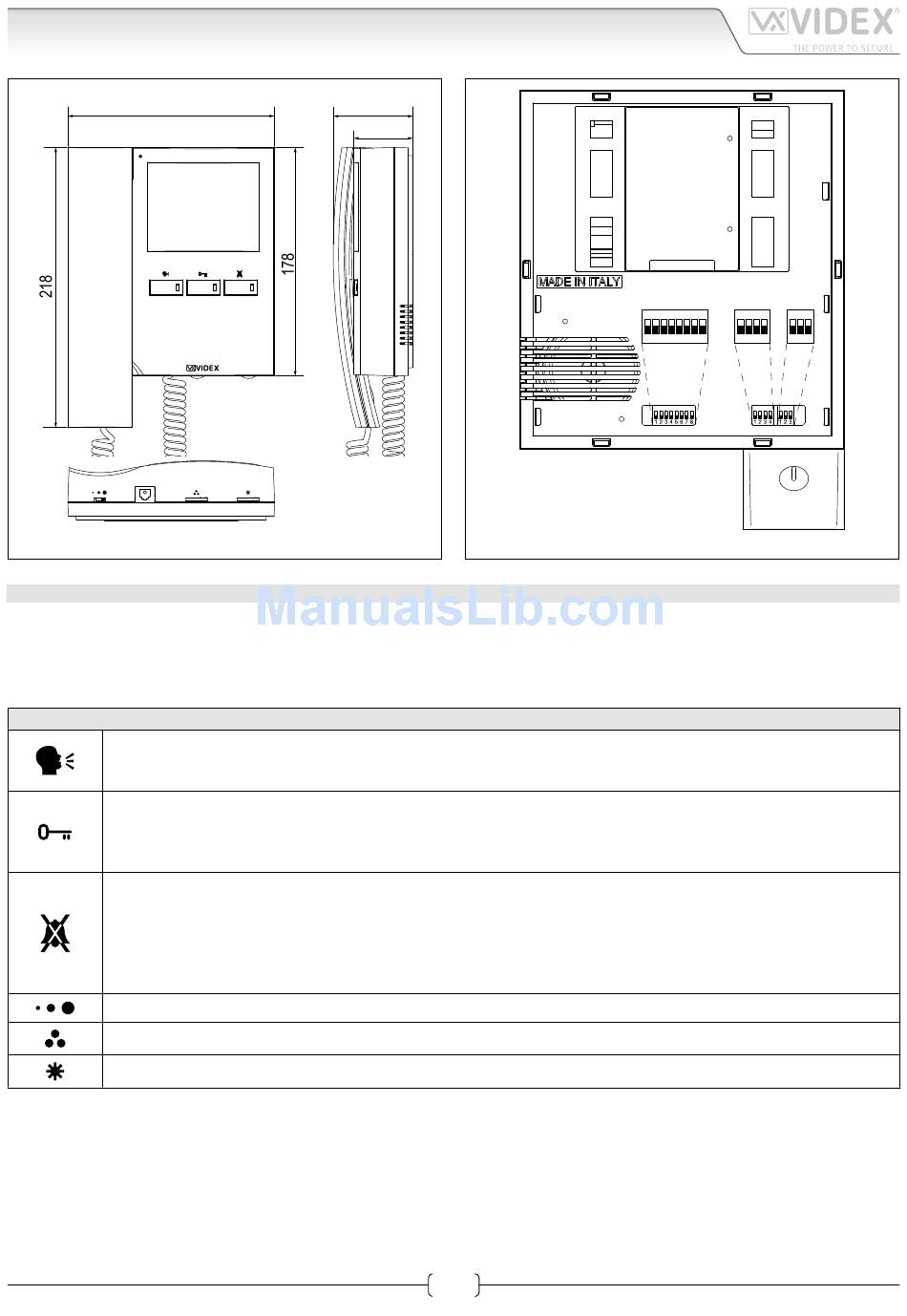

Fig. 1
DESCRIPTION
Intelligent videophone for the VX2200 digital system incorporating a 3,5" full colour active matrix LCD monitor, with "camera recall",
"door open", "privacy/service" buttons plus 3 LEDs related to the operation of the buttons. Programmable settings: video mode
(coax or balanced), melody, number of rings and privacy duration.
Adjustments: call tone volume (3 levels), hue and brightness. Connection terminals are compatible with Art. 3678.
PUSH BUTTONS AND CONTROLS - OPERATION
Camera recall button.
When the system is in standby, (No calls on the system) operation of this button will open the speech to the door station.
The related LED will illuminate. Press as many time as the ID value of the door panel to connect to.
Door-open button.
• During a conversation, operation of this button will release the door from where the call originated. This will be con-
firmed by an acoustic tone. If terminal "DL" is connected, the "door open" LED next to the button will also be illuminated.
• When the system is in stand-by, a button press will book a call to the concierge (If available).
Privacy ON-OFF button.
• When the system is in stand-by, press this button to enable the service for the programmed time: the related LED
will illuminate to signal the service enabled. During an incoming call, with the service enabled, the device does not
emit any acoustic signal. The service is disabled when the programmed time expires or pressing again the button.
• During a conversation, press this button to enable the auxiliary service: by pressing the button terminal "12/SB" is
internally linked to ground for 2 seconds.
Adjusts call tone volume (3 levels): low, medium and high.
Adjusts the picture hue: right rotation to increase, left rotation to decrease.
Adjusts the picture brightness: right rotation to increase, left rotation to decrease.
Art. 3676 - Installation instructions
62
46
Fig. 2
1
SW1 SW2 SW3
ON ON ON
1 2 3 4 5 6 7 8 1 2 3 4 1 2 3
66251010-EN - V2.1 - 31/05/16
