Page 2

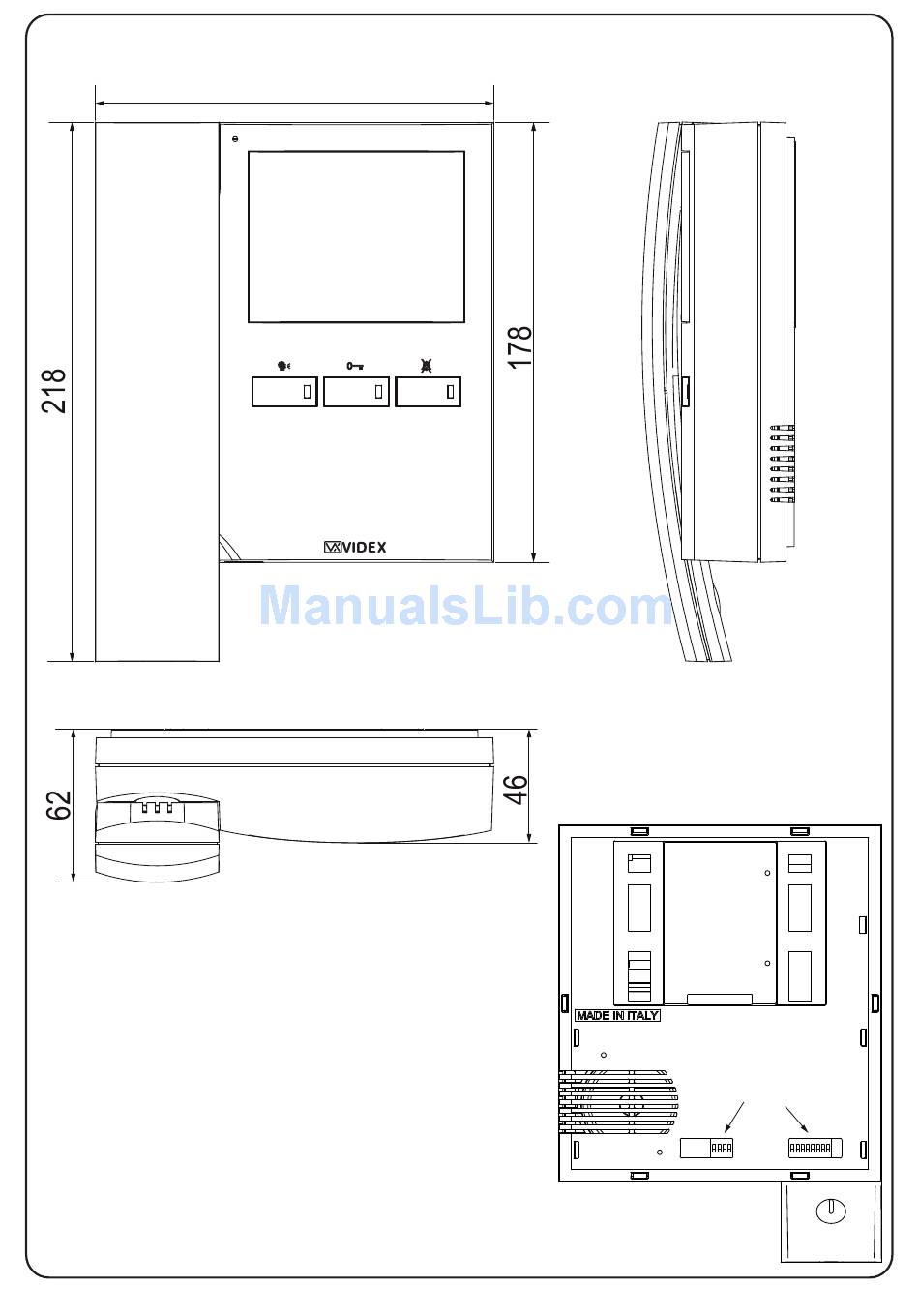

VX2200 “2 WIRE” Bus Digital System VIDEX ELECTRONICS S.p.A. ART.3678 VIDEOCITOFONO CON FUNZIONE VIVA- ART.3678 VIDEOPHONE WITH HANDS FREE FACIL- VOCE Descrizione Description Videocitofono specifico per il sistema VX2200 con monitor a colori LCD Intelligent videophone for the VX2200 digital system incorporating a 3,5”...
Page 3
VX2200 “2 WIRE” Bus Digital System VIDEX ELECTRONICS S.p.A. Programmazioni e Regolazioni Programming and Adjustments Il videocitofono ha due differenti menù per operazioni di programmazione e The videomonitor has two different menus for programming and adjustment regolazione: functions: Un menù viene attivato dalla condizione di stand-by e consente di im- One menu operates when the system is in stand-by and allows to set: ...
Page 4
Switches 3,4 Termination Coassiale Abilitata Coax Enabled Bilanciato Disabilitata Balanced Disabled Art.3678 - SEGNALI SCHEDA DI CONNESSIONE Art.3678 - PCB CONNECTION BOARD SIGNALS Morsetto Descrizione Description Terminal Ingresso alimentazione video 17÷20Vdc +20V Video power supply 17÷20Vdc Ingresso alimentazione video 17÷20Vdc +20V Video power supply 17÷20Vdc...
Page 5
VX2200 “2 WIRE” Bus Digital System VIDEX ELECTRONICS S.p.A. Art.3678 Istruzioni di fissaggio a parete Art.3678 Wall mounting instructions Fig.1 Fig.2 Fig.3 Fig.4 Dovendo passare attraverso la fessura “e” (fig.2A) della placca di fissaggio Cables must be fed through the opening “e” (Fig. 2A) of the mounting a parete, consigliamo di canalizzare i conduttori in maniera tale da lasciare plate “c”, which should be fitted approximately 135cm from finished floor...
