SOLIS Mini-700-4G Installation And Operation Manual

Pv grid tie inverter 4g series mini single phase
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ningbo Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
PV Grid Tie Inverter

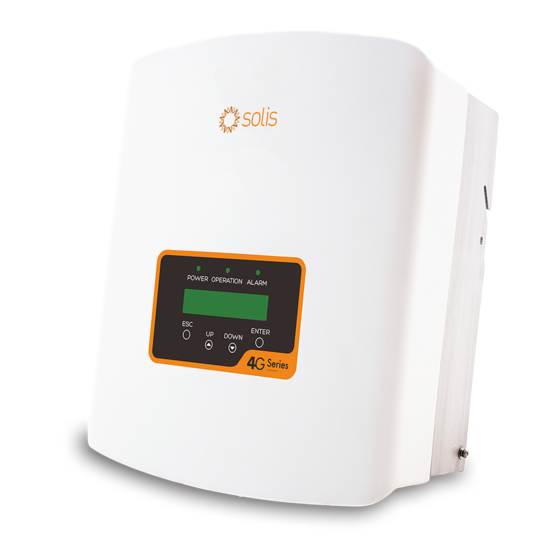

Solis 4G Mini Single Phase Inverter
Installation and Operation Manual
Solis-mini-700-4G, Solis-mini-1000-4G, Solis-mini-1500-4G, Solis-mini-2000-4G,
Solis-mini-2500-4G, Solis-mini-3000-4G, Solis-mini-3600-4G
2016, Ningbo Ginlong Technologies Co., Ltd.
C
Ver 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-700-4G and is the answer not in the manual?

Questions and answers

Brian Purden
May 23, 2025

Can you please tell what type of RCD is recommended to use with a Solis mini 1500 4G?

0
1 comments:
Mr. Anderson
May 25, 2025

The recommended RCD type for use with a Solis Mini-700-4G is not specified in the provided context.

This answer is automatically generated

0

Related Manuals for SOLIS Mini-700-4G

Summary of Contents for SOLIS Mini-700-4G

  • Page 1 PV Grid Tie Inverter Solis 4G Mini Single Phase Inverter Installation and Operation Manual Solis-mini-700-4G, Solis-mini-1000-4G, Solis-mini-1500-4G, Solis-mini-2000-4G, Solis-mini-2500-4G, Solis-mini-3000-4G, Solis-mini-3600-4G Ningbo Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806...

  • Page 2: Table Of Contents

    Contents ……………………………………………… 1. Introduction 1.1 Product Description ………………………………… ………………………………………… 1.2 Packaging ……………………………………… 2. Safety Instructions …………………………………… 2.1 Safety Symbols 2.2 General Safety Instructions ……………………… ……………………………………… 2.3 Notice For Use ……………………………………………… 3. Overview ……………………………… 3.1 Front Panel Display ……………………… 3.2 LED Status Indicator Lights 3.3 Keypad ……………………………………………...

  • Page 3: Introduction

    1. Introduction Contents ………………………………………… 6.1 Main Menu 1.1 Product Description ……………………………………… 6.2 Information Solis 4G mini series single phase inverters integrate DRM and backflow power control …………………………………… 6.2.1 Lock screen function, thatcould suitable for smart grid requirement. 6.3 Settings ………………………………………………...

  • Page 4: Packaging

    CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety instructions, which if not correctly followed, could result in electric shock. PV Grid Tie Inverter Solis 4G Mini Single Phase Inverter Installation and Operation Manual Solis-mini-700-4G, Solis-mini-1000-4G, Solis-mini-1500-4G, Solis-mini-2000-4G, Solis-mini-2500-4G, Solis-mini-3000-4G, Solis-mini-3600-4G...

  • Page 5: Notice For Use

    Inverter. The DC OCPD shall be installed per local requirements. All photovoltaic source and output circuit conductors shall have disconnects that comply with the NEC Article 690, Part II. All Solis single phase inverters feature an integrated DC switch. CAUTION: Risk of electric shock.

  • Page 6: Keypad

    3. Overview 4. Installation 3.3 Keypad 4.1 Select a Location for the Inverter To select a location for the inverter, the following criteria should be considered: There are four keys in the front panel of the Inverter(from left to right): Do not install in small closed spaces where air can not circulate freely.

  • Page 7: Mounting The Inverter

    4. Installation 4. Installation Installonawallorstrongstructurecapableofbearingtheweight. 4.2 Mounting the Inverter Install vertically with a maximum incline of +/- 5°.If the mounted inverter is tilted to an angle greater than the maximum noted, heat dissipation can be inhibited, and may result Dimensions of wall bracket: in less than expected output power.

  • Page 8: Electrical Connections

    Hang the inverter on the within the limit of the inverter mounting bracket and make sure the inverter is secure (see Figure 4.6) Maximum 600Voc for Solis-mini-700-4G, Solis-mini-1000-4G, Solis-mini-1500-4G, Solis-mini-2000-4G, Solis-mini-2500-4G, Solis-mini-3000-4G, Solis-mini-3600-4G Locking screws Please don’t connect PV array positive or negative pole to the ground, it could...
  • Page 9 4. Installation 4. Installation iii) Crimp the contact pin to the wire using a proper wire crimper. Please use approved DC cable for PV system. Cross section Cable type Recommended Range value Industry generic PV cable 4.0~6.0 4.0（12AWG） （model:PV1-F） （12~10AWG） Table 4.1 DC cable Figure 4.10 Crimp the contact pin to the wire The steps to assemble the DC connectors are listed as follows:...

  • Page 10: Connect Grid Side Of Inverter

    Figure 4.16 Connect Wires to the Terminal c) Tighten up the cap on the terminal (as shown in Figure 4.15). Each Solis Mini Single Phase Inverter is supplied with an AC grid terminal connector. Figure 4.17 Tighten up the Cap on the Terminal Figure 4.14 AC Grid Terminal Connector...

  • Page 11: External Ground Connection

    Connect the OT terminal with ground cable to the right side of inverter. The torque is 20 in-lbs (2Nm). 4.3.5 Inverter monitoring connection The inverter can be monitored via Wi-Fi or GPRS. All Ginlong Solis communication devices are optional (Figure 4.9). For connection instructions, please refer to the Ginlong Solis Monitoring Device installation manuals.

  • Page 12: Electrical Connection Diagram

    4. Installation 4. Installation 1. The RCD should not be placed between the consumers mains and the solar supply. Smart phone monitoring 2. More than one RCD may be used. Each RCD can protect one or more circuits. GPRS monitoring 4.3.7 CT connections(optional) Internet This inverter has integrated export limitation functionality.

  • Page 13: Start & Stop

    4. Installation 5. Start & Stop NOTE: 5.1 Start the Inverter Ginlong 4G inverter is designed to provide 12V power for DRED. To start up the Inverter, it is important that the following steps are strictly followed: Please follow below steps to assemble Rj45 connector. 1.

  • Page 14: Operation

    3. Advanced Info. 4. Advanced Settings 6.2 Information The Solis Mini Single Phase 4G Inverter main menu provides access to operational data and information. The information is displayed by selecting "Information" from the menu and then by scrolling up or down.

  • Page 15: Lock Screen

    The address number can be assigned from “01”to “99”(see Figure 6.4). The default address manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous number of Solis Single Phase Inverter is “01”. menu. Alarm001: OV-G-V Time: 27-11 Data: 7171 Figure 6.6 Alarm Message...

  • Page 16: Running Message

    6. Operation 6. Operation 6.4.2 Running Message Press DOWN key to move the cursor, press UP key to change the digit. Press Enter after the month/year is fixed. This function is for maintaince person to get running message such as internal temperature, Standard NO.

  • Page 17: Clear Energy

    UL-208V-A, UL-240V, UL-208V, MEX-CFE, G83/2 (for 1-3.6kW models), G59/3 (for 4-5kW This function is used to start up or stop the power generation of Solis Mini Single Phase models), EN50438 DK, EN50438 IE, EN50438 NL and “User-Def” function). Press the 4G Inverter (see Figure 6.17).

  • Page 18: Calibrate Energy

    This sub menu is enabled when the grid standard is set to AS4777. To comply with New AUS/ Set P_Limit2: 20%-100%, Default 100% NZ 4777.2, Ginlong Solis 4G inverter could set different work mode to work with different Set Voltage3: 235-255V, Default 250V grid requirement.
  • Page 19 6. Operation 6. Operation The other 3 setting in AUS STD. setting are as below: 1. Power Rate limit 6.5.8.2 CT Sampling Ratio Wgra: 0-100%, Default 16% This function is used for change CT Sampling Ratio if customer select different CT. 2.

  • Page 20: Maintenance

    7. Maintenance 6.5.8.4 CT Link Test 7.Maintenance Solis Mini Single Phase 4G Inverter does not require any regular maintenance. However, Before pressing the CT Link Test menu, please check as follow: 1.Load power ≥ 500W cleaning the dust on heat-sink will help the inverter to dissipate the heat and increase its 2.Inverter should be set Grid Off...
  • Page 21 1.Reduce the module number in series 1. Serial number of Solis Single Phase Inverter; Over DC bus voltage OV-BUS 1.Check inverter inductor connection 2. The distributor/dealer of Solis Single Phase Inverter (if available); 2.Check driver connection Under DC bus voltage UN-BUS01/02 3. Installation date.

  • Page 22: Technical Data

    9.1 Technical data Model Solis-mini-700-4G Model Solis-mini-1000-4G Max power per MPPT (Watts) Max power per MPPT (Watts) 1200 Max voltage (Volts) Max voltage (Volts) Startup voltage (Volts) Startup voltage (Volts) Operating MPPT voltage range (Volts) 50...500 Operating MPPT voltage range (Volts) 50...500...
  • Page 23 Solis-mini-3000-4G Model Solis-mini-2500-4G Model Solis-mini-1500-4G Solis-mini-2000-4G Max power per MPPT (Watts) 3000 3500 Max power per MPPT (Watts) 1800 2300 Max voltage (Volts) Max voltage (Volts) Startup voltage (Volts) Startup voltage (Volts) Operating MPPT voltage range (Volts) Operating MPPT voltage range (Volts) 50...500...
  • Page 24 Model Solis-mini-3600-4G Max power per MPPT (Watts) 4000 Max voltage (Volts) Startup voltage (Volts) Operating MPPT voltage range (Volts) 80...500 Max. Inverter Backfeed Current to the Array (Adc) Max usable input current per MPPT (Amps) Max short circuit input current (Amps)
