SOLIS Hub-200A-US Quick Installation Manual

Quick Installation Manual
Version 1.0
Solis Hub-200A-US
Ginlong Technologies Co., Ltd.
Introduction
1

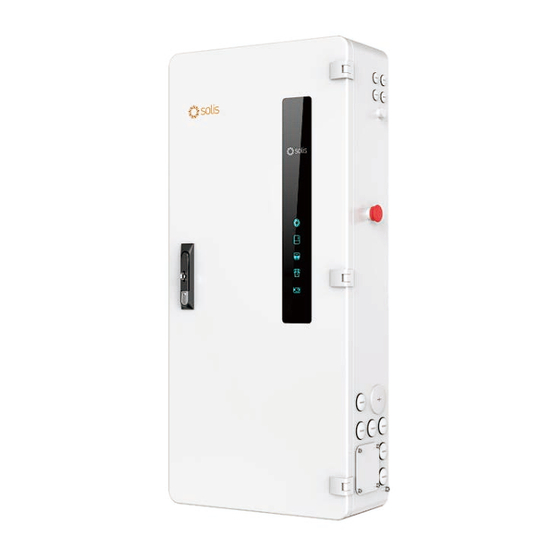

Solis Hub-200A-US is the Microgrid Interconnect Device (MID) for
the PV, battery, generator, grid and home loads. It is designed to
work with Solis S6 hybrid inverters to provide smart controls and
whole-home backup solution.
500mm
Overview
Communication output
φ22.5
φ16.5
Emergency stop switch
Inverter input φ50.4
Generator input φ63
Independent load output φ34.9
200A load output φ77.7
Left
Package List
2
NO.
3 GL.WB10.00.004
3.1 250*170*0.07-LDPE
3.2
4 GL.WB10.00.005
Grid input
4.1 250*170*0.07-LDPE
φ77.7
T20-M4*16-SS-
4.2
Top LED Indicator Lights
3
Display
Independent load output φ34.5
Load output φ63
Bottom
Generator status
Right
Model Name
Accessory bag (Key)
Ziplock bag
Key
Accessory bag
(backplane screws)
Ziplock bag
Flower-shaped pan
head screw assembly
C1-φ12
M4*16
Name OFF ON
Running lights No power Running
Inverter The inverter
Unused/
communication communicates
No inverter
light normally
Meter
Unused/ The meter is
communication
Not connected normal
lights
No power grid/ There is grid
Grid status
Not connected access
There is
No generator/
generator
Not connected
access
Number
1
1
1
1
1
2
