Update Desistance in the Full Online Edition
LOGICVIEW will not be in the Full Online Edition, but online. Clicking on Retry, with the
communication restored between the LOGICVIEW and DF65, it can choose between Online Edition
and Full Online Edition.
It is important to remember even the communication between the DF65and LOGICVIEW is lost, but
the Accept Changes button has already been selected, these changes will be save in the CPU,
independently of the chosen option after the communication restore.
In order to desist of doing the updates in the configuration, the user must click on the toolbar, on the
Full Online Edition button to go out from this mode. The following window will be displayed, offering
three options to the user:
If the Remove All option was chosen, all the changes done in the configuration will be removed.
LOGICVIEW will be online and the user can chose between Online Edition and Full Online Edition.
If the user chooses Go Offline, the following message appears.

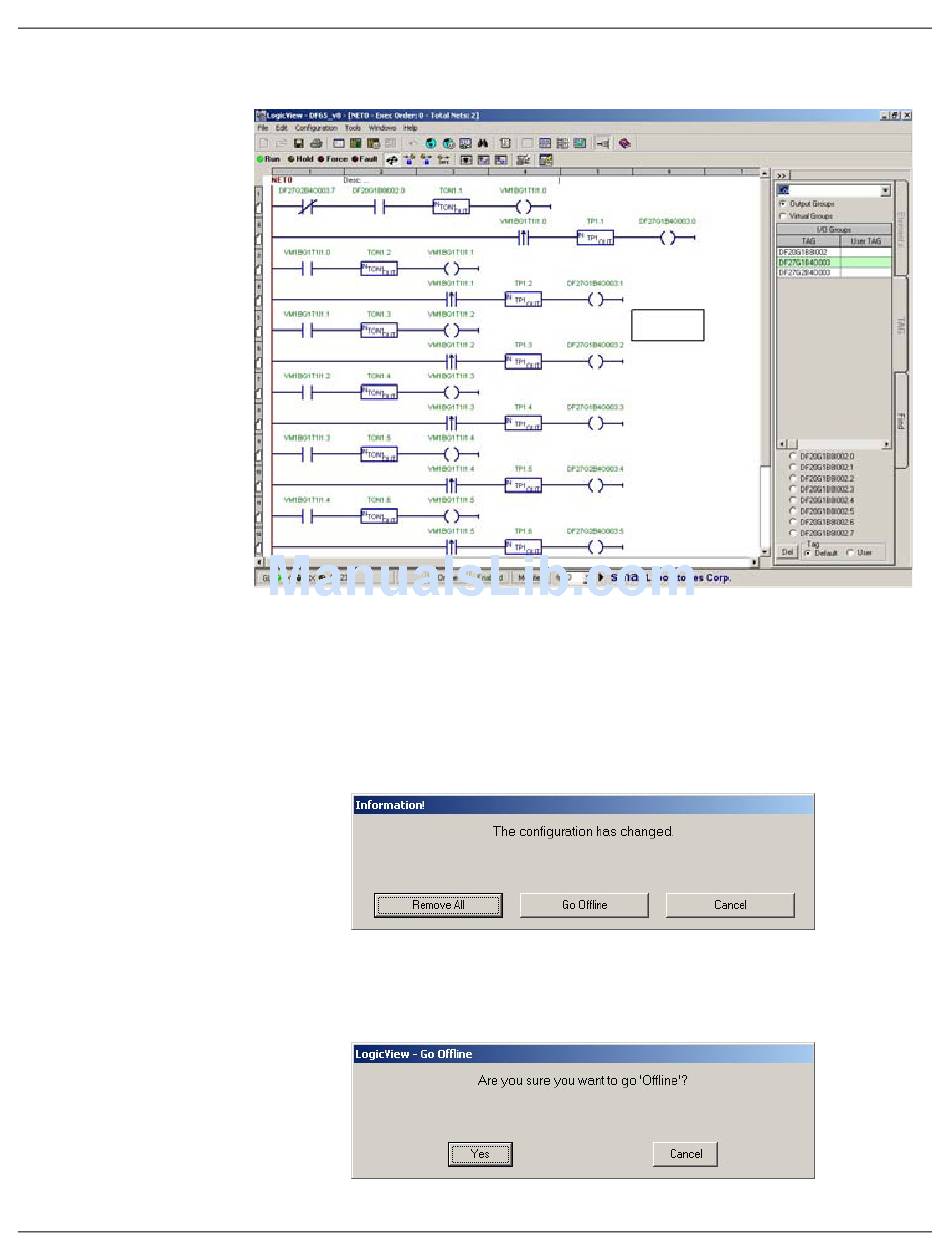

Fig 3.127- Accept Changes
Fig 3.128- Update Desistance
Fig 3.129- Go to Offline mode
LogicView
3.91
