ONLINE Mode

3.70
To temporarily stop monitoring simply click on the 'Pause' button
To start monitoring again click on the 'Continue' button (which is same as the pause button)
,
To stop monitoring click on the stop button
which shows all of the points.
The points selected before will remain selected so the user doesn't have to select them again if it is
necessary to monitor. Even if the user closes the window and comes back at a later time the points
are still selected for the user convenience, simply click the 'Clear' button to clear the selection.
The user can also select multiple points by using the <shift> key. Select a point, press the <shift>
key and select another point, all of the points in-between will also be selected.
The DF65 controller supports two online edition modes: "Online Edit" and "Full Online Edition".
These two modes are different and competitive, the option to use one or the other depends on the
situation.
- Online Edit .
- Full Online Edition .
In order to make the Ladder configuration easy to read in both online modes, the user can configure
two different background colors for the Ladder in each online mode. In the toolbar, click on the Tool
option and choose Preferences. Click on the tab Color. The following picture will be showed.
. This will take the user back to the old window,

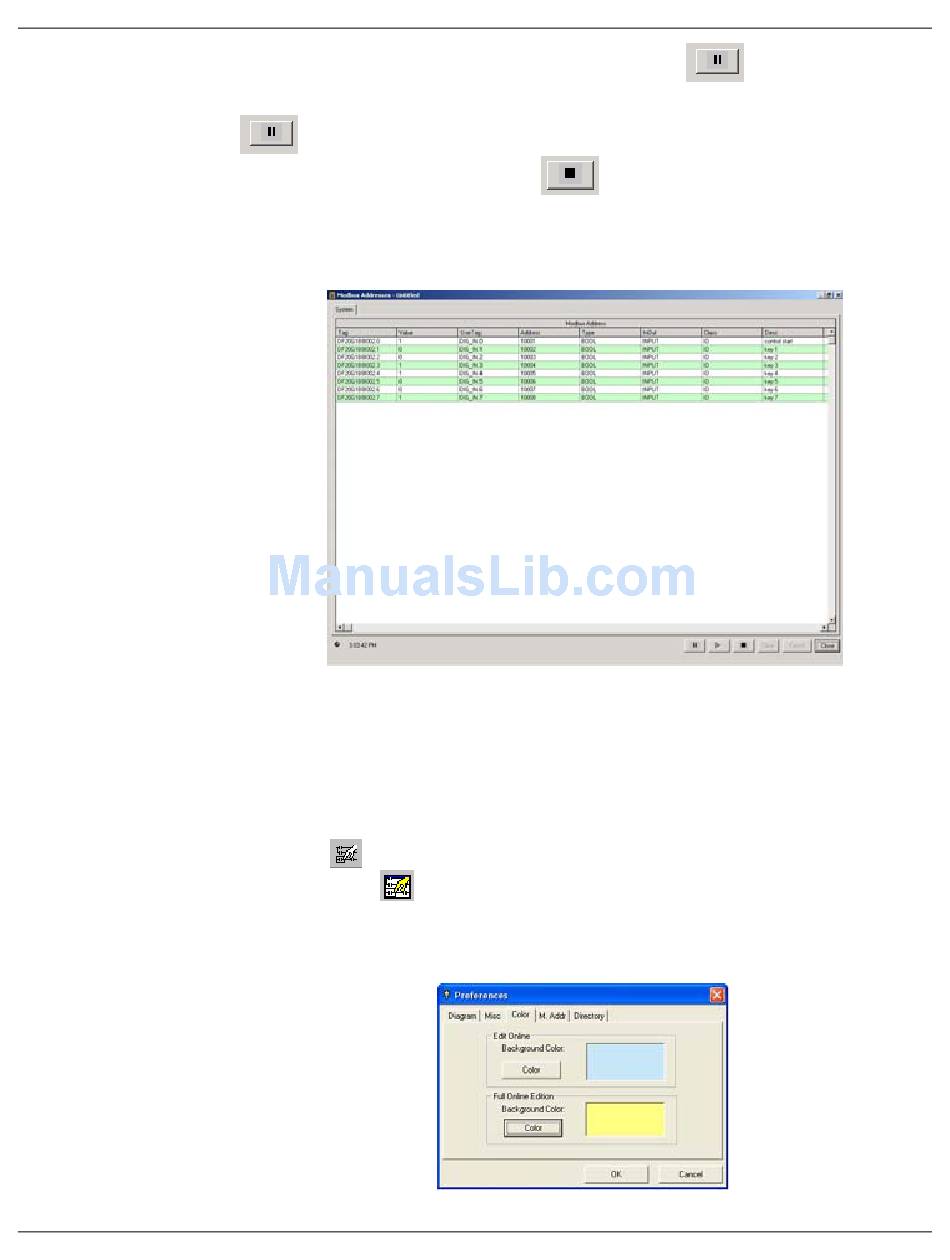

Fig 3.88- Selected MODBUS Variable Points
Fig 3.89- Changing the background color
.
