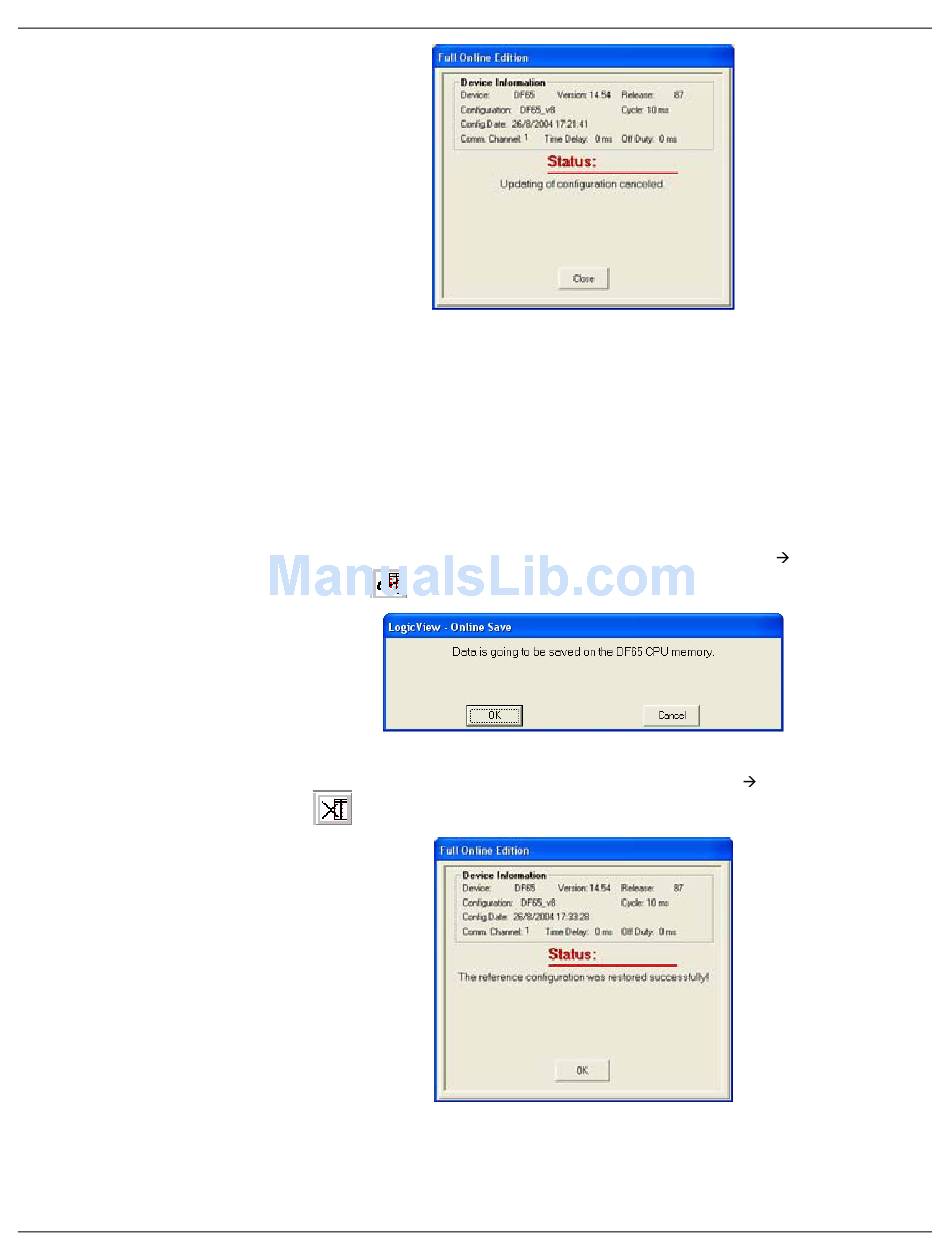

Fig 3.112- Canceled Update

System Test after the update

After a successful update LOGICVIEW stays in "test" state. In this state, the monitoring is enabled
again and the user can observe the system conditions with the updates, thus, the user can choose
one of the following options:
Confirm the changes done. Thus, the system executes the control with the new configuration and
removes the previous configuration.
Cancel the changes done, keeping the actual values of dynamic variables. In this case, the system
returns to execute the previous configuration and delete the new configuration. The existent
dynamic variables of the previous configuration are updated with the actual values.
To confirm the changes, it must select in the toolbar the Full Online Edition Accept Changes, or
click on the button .
Fig 3.113- Online Save
To cancel the changes, it must selected in the toolbar Full Online Edition Remove All, or click on
the button .
Fig 3.114- Remove the Changes in the Configuration
In case the user doesn't make none of the two options and go to the Off-line Mode, the DF65
automatically will accept the changes after 5 minutes.
3.83
