LogicView

On-line Monitoring

This is really an important tool for verifying how the control strategy is working in a complete
relationship with the DF65.
Monitoring is only possible if the LOGICVIEW is already On-line. See the Go Online is enabled click
on this button. Otherwise it is necessary to upload the configuration present in the CPU.
The DF65must be in the RUN mode for monitoring purposes. See that the RUN LED is on,
otherwise go menu: Tools/Run or click on .

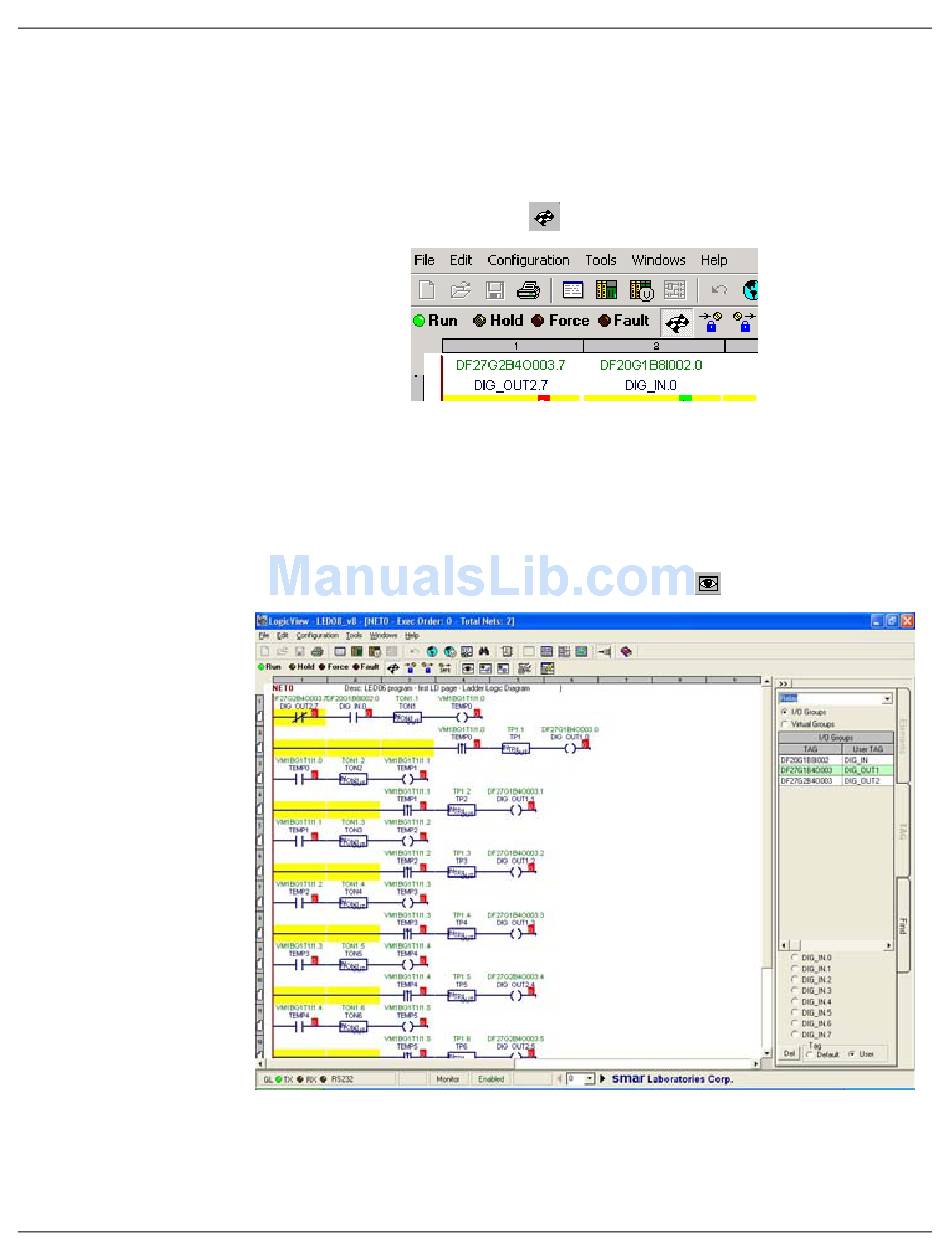

Fig 3.82- The Run Led

DF65 in the RUN Mode

Monitoring allows the user to see how each individual network is performing and make sure it is
working the way it was desired during programming.
Inputs and outputs of function blocks can also be monitored. While in the Monitoring mode right click
on the function block to be monitored and choose the option Yes on the preceding dialog box.
After the upload is complete go to menu: Tools/Monitor or click on .
Fig 3.83- DF65 in Run Mode
3.67
