thomann Blinder 4-Lite User Manual

Hide thumbs Also See for Blinder 4-Lite:
Table of Contents

Advertisement

Quick Links

Blinder 4-Lite
blinder
user manual

Advertisement

Table of Contents
loading

Related Manuals for thomann Blinder 4-Lite

Summary of Contents for thomann Blinder 4-Lite

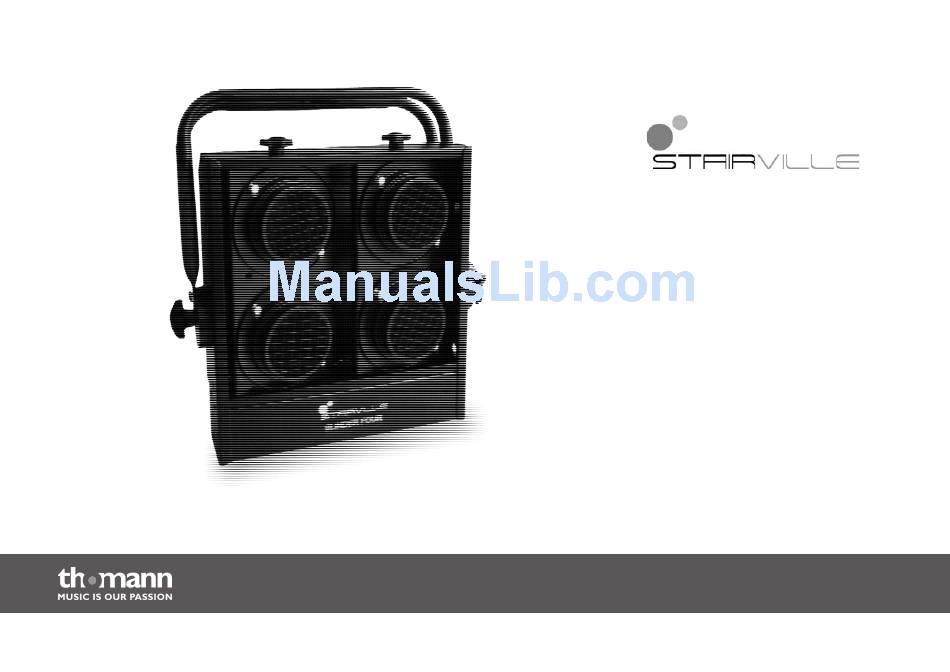

  • Page 1 Blinder 4-Lite blinder user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 18.12.2012...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 12 Installation..............................13 Wiring................................15 Starting up..............................17 Connections and operating elements................... 18 Cleaning............................... 22 Technical specifications........................23 Protecting the environment......................24 Blinder 4-Lite...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner.
  • Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Blinder 4-Lite...
  • Page 6 General notes Warning signs Type of danger Warning – hot surface. Warning – suspended load. Warning – danger zone. blinder...

  • Page 7: Safety Instructions

    Failure to do so may result in electric shock and risk of fire and death. Before starting work on the electrical installation, the device must be unplugged from the power grid. Blinder 4-Lite...
  • Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.
  • Page 9 Never look directly into the light source. WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes. Blinder 4-Lite...
  • Page 10 Safety instructions NOTICE! Risk of overheating The distance between the light output and the illuminated surface must be more than 0.5 m (19.7 in). Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Risk of fire Do not cover the device nor any ventilation slots.
  • Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Blinder 4-Lite...

  • Page 12: Features

    Features Features The blinder is particularly suitable for the illumination of areas and specific lighting effects in the auditorium at events, rock concerts as well as in theatres and musicals. Special features of this device: Two rotatable elements with shatter protection for 2 × 2 DWE illuminants (illuminants not included) Double round-tube bracket for secure and solid mounting.

  • Page 13: Installation

    Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Blinder 4-Lite...
  • Page 14 Installation NOTICE! Risk of overheating The distance between the light source and the illuminated area must be greater than 0.5 m. Make sure there is always sufficient ventilation. The ambient temperature must always be below 40 °C Never operate the unit for more than 15 minutes continuously and stick to appro‐ priate cool-down times.

  • Page 15: Wiring

    Run the cables provided through the two holes inside the housing. Wire the Illuminants according to the following diagram. Finally, assemble the cable cover on the rear panel of the unit and the shatter protection grilles of the illuminant elements. Blinder 4-Lite...
  • Page 16 Wiring Schematic for four lamps blinder...

  • Page 17: Starting Up

    Connect the power cable to a grounded outlet to start up the unit. NOTICE! Risk of overheating Never operate the unit for more than 15 minutes continuously and stick to appro‐ priate cool-down times. Blinder 4-Lite...

  • Page 18: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel blinder...
  • Page 19 Connections and operating elements 1 Round-tube bracket. 2 Shatter protection. 3 Knurled-head screws for fixing the shatter protection. 4 Handscrews for fixing the round-tube bracket. 5 Handscrews for positioning of the rotatable elements. Blinder 4-Lite...
  • Page 20 Connections and operating elements Rear panel blinder...
  • Page 21 Connections and operating elements 1 Round-tube bracket. 4 Handscrews for fixing the round-tube bracket. 5 Handscrews for positioning of the rotatable elements. 6 Retaining screws of the cable compartment cover. 7 Fuse holder. 8 Power supply cable. 9 Ground connection. Blinder 4-Lite...

  • Page 22: Cleaning

    Cleaning Cleaning Clean the unit only with a soft, dry cloth. More stubborn stains can be cleaned with a slightly damp cloth. Never use cleaners such as alcohol or thinner. blinder...

  • Page 23: Technical Specifications

    4 × PAR 36 DWE, 120 V/650 W maximum, screw connector Operating supply voltage AC 230 V , 50 Hz Fuse 2 × 250 V, 10 A Dimensions (W × D × H) 455 mm × 115 mm × 533 mm Weight 5.2 kg, without illuminant Blinder 4-Lite...

  • Page 24: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 25 Notes Blinder 4-Lite...
  • Page 26 Notes blinder...
  • Page 28 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
