thomann Stairville RevueLED 150 Profile 3200K 26 User Manual

Led spotlight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

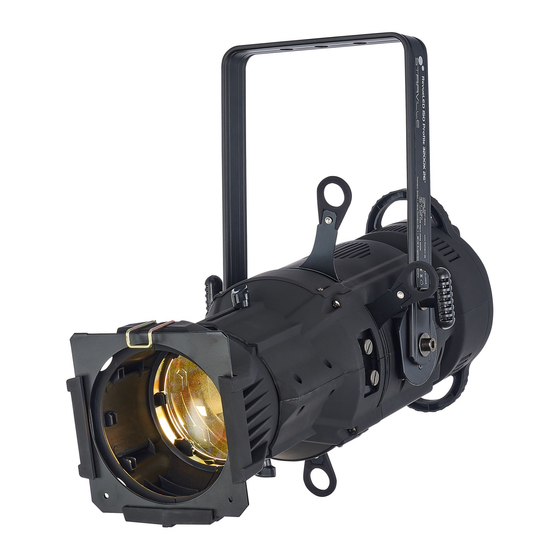

RevueLED 150 Profile 3200K 26°
LED Spotlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stairville RevueLED 150 Profile 3200K 26 and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Stairville RevueLED 150 Profile 3200K 26

Summary of Contents for thomann Stairville RevueLED 150 Profile 3200K 26

  • Page 1 RevueLED 150 Profile 3200K 26° LED Spotlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 09.05.2022, ID: 412974 (V2)

  • Page 3: Table Of Contents

    Table of Contents Table of Contents General information..........................6 1.1 Further information........................... 7 1.2 Notational conventions........................8 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 15 Installation..............................16 Starting up..............................20 Connections and controls........................23 Operating..............................27 7.1 Starting the device........................... 27 7.2 Main menu............................
  • Page 4 Table of Contents Plug and connection assignments....................34 Troubleshooting............................35 Cleaning............................... 37 Protecting the environment......................38 RevueLED 150 Profile 3200K 26° LED Spotlight...
  • Page 5 RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. RevueLED 150 Profile 3200K 26°...

  • Page 7: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 8: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
  • Page 9 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 11: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
  • Page 13 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only.
  • Page 14 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 15: Features

    Features Features Special features of the device: 1 × warm white LED, 120 W Colour temperature: 3200 K Beam angle: 26° Operation in stand-alone or DMX mode (two channels) Operating via buttons and display on the unit robust space-saving housing with mounting bracket temperature-controlled fan cooling suitable for use in clubs, bars, stages, exhibitions, etc.

  • Page 16: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 18 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the unit in hanging or standing position.
  • Page 19 Installation Please note that this device must not be connected to a dimmer. RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 20: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. RevueLED 150 Profile 3200K 26° LED Spotlight...
  • Page 21 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 22 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 23: Connections And Controls

    Connections and controls Connections and controls & ö RevueLED 150 Profie 3200K 26° DMX IN DMX OUT RevueLED 150 Profile 3200K 26° LED Spotlight...
  • Page 24 Connections and controls 1 Display with function buttons. [ENTER] Confirms a selected value. [UP], [DOWN] Increases / decreases the displayed value by one. [MENU] Calls up the main menu or a submenu. 2 [DMX OUT] DMX output 3 [DMX IN] DMX input 4 Power-Twist connector for the power supply of the device.
  • Page 25 Connections and controls RevueLED 150 Profile 3200K 26° LED Spotlight...
  • Page 26 Connections and controls 7 Holder for colour films or filters. 8 Locking screw for focus. 9 Individually operable aperture slider. 10, 11 Screws for fine tuning the focus. To adjust, loosen the screws on both sides and move the lens to the desired posi‐ tion.

  • Page 27: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. The device is immediately opera‐ tional and operates in the last mode with the settings last selected. 7.2 Main menu Menu control Press [MENU] to open the main menu. Use [UP] or [DOWN] to select the desired parameter or to change the respectively indicated value.
  • Page 28 Operating DMX address Press [MENU]. Press [UP] or [DOWN] repeatedly until the display shows ‘A001’ and confirm with [ENTER]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [UP] or [DOWN] to select a value between 1 and 511 (highest possible DMX address for 2-channel operation).
  • Page 29 Operating Dimmer setting Press [MENU]. Press [UP] or [DOWN] repeatedly until the display shows ‘r’ . Press [ENTER]. Use [UP] or [DOWN] to select a value between ‘0’ (LED off) and ‘255’ (full brightness). This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value press [ENTER] to confirm the selection and then [MENU] to return to the parent menu.

  • Page 30: Menu Overview

    Operating 7.3 Menu overview A001 SL 0 St 00 A512 SL 3 St 99 r 255 RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 31: Functions In Dmx Mode

    Operating 7.4 Functions in DMX mode Channel Value Function 0 … 255 Dimmer (0 % to 100 %) 0 … 255 Stroboscope effect (0 % to 100 %) RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 32: Technical Specifications

    Technical specifications Technical specifications Light source 1 × LED warm white, 120 W Light source properties Colour temperature 3200 K Colour rendering index 89 CRI Ra Optical properties Beam angle 26° Control Buttons and display on the unit Number of DMX channels Input connections Power supply Lockable input socket (Power...
  • Page 33 Technical specifications Supply voltage 100 - 230 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Degree of protection IP20 Mounting options Hanging, standing Dimensions (W × H × D) 360 mm × 465 mm × 643 mm Weight 7.5 kg Ambient conditions...

  • Page 34: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 35: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 36 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. RevueLED 150 Profile 3200K 26° LED Spotlight...

  • Page 37: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 38: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
