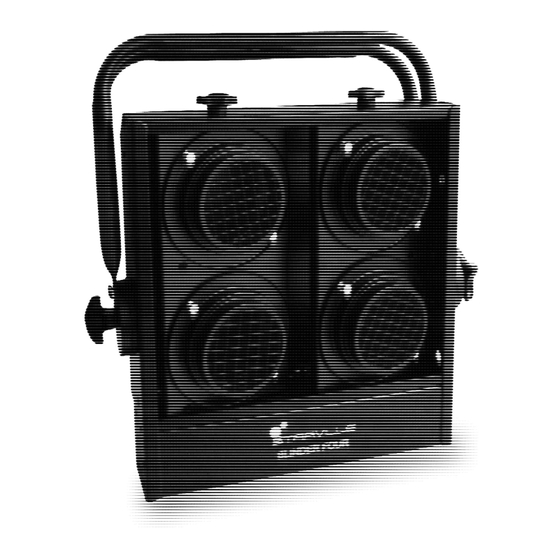

Blinder 4-Lite
blinder
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE Blinder 4-Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann STAIRVILLE Blinder 4-Lite

Summary of Contents for thomann STAIRVILLE Blinder 4-Lite

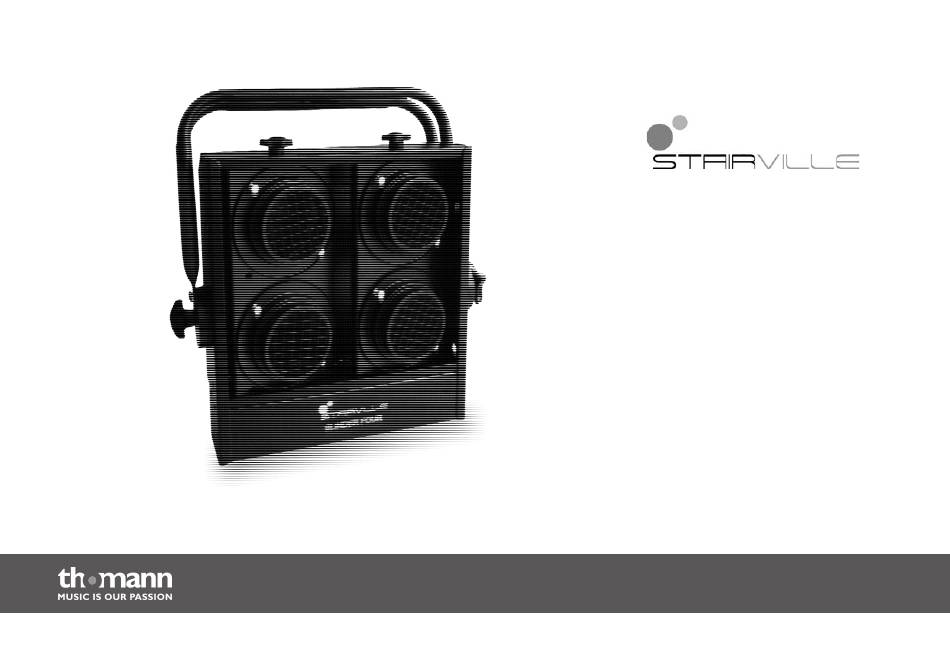

  • Page 1 Blinder 4-Lite blinder user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Deutschland Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.12.2014, ID: 180225 (V2)

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 1.1 Further information........................... 5 1.2 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Installation..............................14 Wiring................................16 Starting up..............................18 Connections and operating elements................... 19 Cleaning............................... 23 Technische Daten............................ 24 Protecting the environment......................

  • Page 4: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Symbols And Signal Words

    General notes 1.2 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
  • Page 7 General notes Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – suspended load. Warning – danger zone. Blinder 4-Lite...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an illumination effect. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 10 Safety instructions WARNING! Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes.
  • Page 11 Safety instructions NOTICE! Risk of overheating The distance between the light output and the illuminated surface must be more than 2.0 m (78.7 in). Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Risk of fire Do not cover the device nor any ventilation slots.
  • Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 13: Features

    Features Features The blinder is particularly suitable for the illumination of areas and specific lighting effects in the auditorium at events, rock concerts as well as in theatres and musicals. Special features of this device: Two rotatable elements with shatter protection for 2 × 2 DWE illuminants (illuminants not included) Double round-tube bracket for secure and solid mounting.

  • Page 14: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation NOTICE! Überhitzungsgefahr Der Abstand zwischen der Lichtquelle und der beleuchteten Fläche muss größer als 2 m sein. Sorgen Sie stets für ausreichende Belüftung. Die Umgebungstemperatur muss immer unter 40 °C liegen. Betreiben Sie das Gerät niemals länger als 15 Minuten durchgehend und halten Sie entsprechende Abkühlzeiten ein.

  • Page 16: Wiring

    Wiring Wiring DANGER! Dangerous voltages The rewiring, exchanging of light bulbs and general electrical maintenance of this product should only be carried out by electrical specialists. Failure to follow these safety precautions can result in electric shock, fire and/or death. The product must be switched off and de-energised (mains plug / power supply disconnected) before carrying out any maintenance / repair work.
  • Page 17 Wiring Schematic for four lamps Blinder 4-Lite...

  • Page 18: Starting Up

    Starting up Starting up Make sure that the unit is properly installed and wired. Fix the lamp holders in the desired position using the hand screws. Connect the power cable to a grounded outlet to start up the unit. NOTICE! Risk of overheating Never operate the unit for more than 15 minutes continuously and stick to appro‐...

  • Page 19: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel Blinder 4-Lite...
  • Page 20 Connections and operating elements 1 Round-tube bracket. 2 Shatter protection. 3 Knurled-head screws for fixing the shatter protection. 4 Handscrews for fixing the round-tube bracket. 5 Handscrews for positioning of the rotatable elements. blinder...
  • Page 21 Connections and operating elements Rear panel Blinder 4-Lite...
  • Page 22 Connections and operating elements 1 Round-tube bracket. 4 Handscrews for fixing the round-tube bracket. 5 Handscrews for positioning of the rotatable elements. 6 Retaining screws of the cable compartment cover. 7 Fuse holder. 8 Power supply cable. 9 Ground connection. blinder...

  • Page 23: Cleaning

    Cleaning Cleaning Clean the unit only with a soft, dry cloth. More stubborn stains can be cleaned with a slightly damp cloth. Never use cleaners such as alcohol or thinner. Blinder 4-Lite...

  • Page 24: Technische Daten

    Technische Daten Technische Daten Leuchtmittel 4 × PAR 36 DWE, 120 V/650 W maximal, Schraubanschluss Energieversorgung 230 V (AC), 50 Hz Sicherung 2 × 250 V, 10 A Abmessungen (B × H × T) 455 mm × 533 mm × 115 mm Gewicht 5,2 kg, ohne Leuchtmittel blinder...

  • Page 25: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 26 Notes blinder...
  • Page 28 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
