NovaStar VX4S Quick Start Manual

Hide thumbs Also See for VX4S:

Power switch

①:

②:

③:

. To press knob means Enter or OK, rotating knob represents selection

or adjustment.

④:

. Escape current operation or selection.

After starting the controller, the main interface of the

as follows:

Knob

2. Press the

to enter the Main Menu.

Knob

3. Rotate the

enter the Submenu of

www.novastar.tech

Screen Settings

to select

Screen Settings

Operation screen

and then press the

Knob

Table of Contents

Do you have a question about the VX4S and is the answer not in the manual?

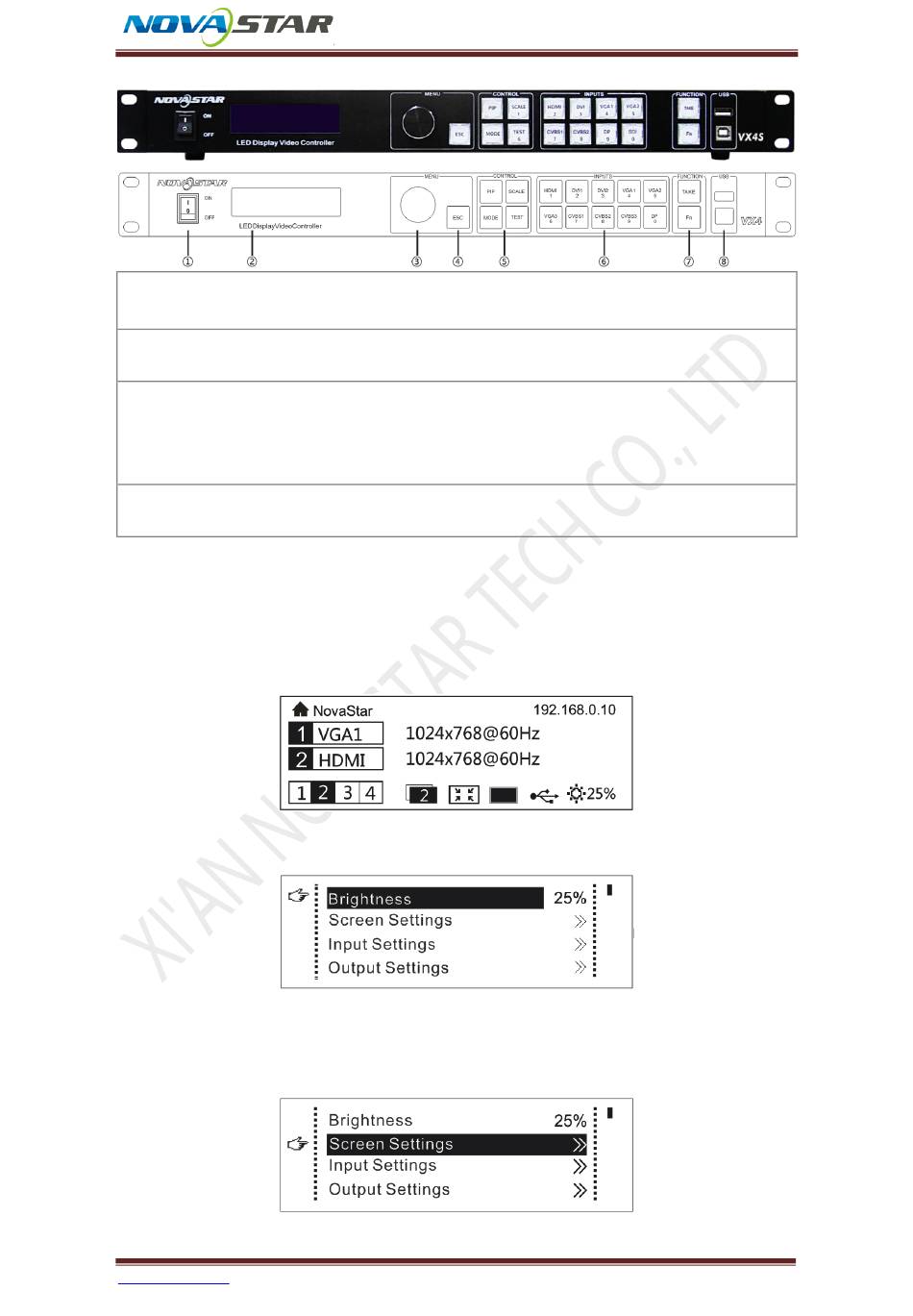

Page 1 After starting the controller, the main interface of the as follows: Knob 2. Press the to enter the Main Menu. Knob Screen Settings Knob 3. Rotate the to select and then press the Screen Settings enter the Submenu of www.novastar.tech...
Page 2 If the number of ports with loads is n (n≤4), the first n-1 ports must load the same number of cabinets, which must also be an integral multiple of the number of cabinet rows or columns and be greater than or equal to the number of cabinets for the n port. www.novastar.tech...
Page 3 The real cabinet connection of each port must follow the same one of the eight preset data flow layout. You must ensure that Port 1 is the start position of the whole data flow connection. 9. Press the to return to the main interface. www.novastar.tech...
