DVC2000 Digital Valve Controller
July 2017
The factory default characteristic is LINEAR. You can also use a QUICK OPEN, EQUAL %, or CUSTOM function. However,
the custom function is initially configured linear, unless you use a HART based host to reconfigure the custom points.
Custom configuration can be selected, but the curve cannot be modified with the local interface.

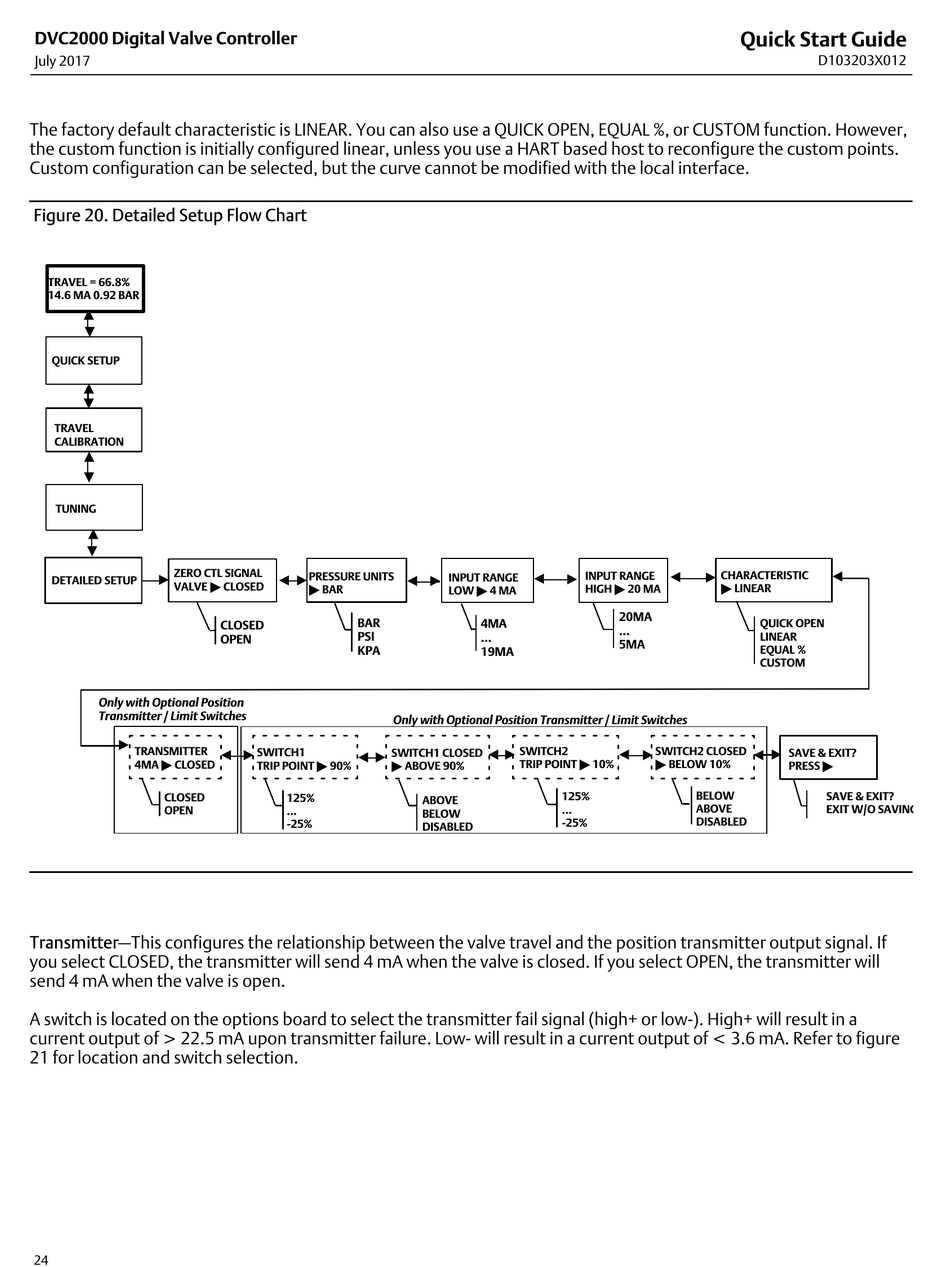

Figure 20. Detailed Setup Flow Chart
TRAVEL = 66.8%
14.6 MA 0.92 BAR
Y
B
QUICK SETUP
Y
B
TRAVEL
CALIBRATION
Y
B
TUNING
Y
B
ZERO CTL SIGNAL
"
DETAILED SETUP
VALVE " CLOSED
Only with Optional Position
Transmitter / Limit Switches
"
TRANSMITTER
4MA " CLOSED
CLOSED
OPEN
Transmitter—This configures the relationship between the valve travel and the position transmitter output signal. If
you select CLOSED, the transmitter will send 4 mA when the valve is closed. If you select OPEN, the transmitter will
send 4 mA when the valve is open.
A switch is located on the options board to select the transmitter fail signal (high+ or low-). High+ will result in a
current output of > 22.5 mA upon transmitter failure. Low- will result in a current output of < 3.6 mA. Refer to figure
21 for location and switch selection.
24
PRESSURE UNITS
A "
" BAR
BAR
CLOSED
PSI
OPEN
KPA
Only with Optional Position Transmitter / Limit Switches
A " SWITCH1 SWITCH1 CLOSED
A "
TRIP POINT " 90%
" ABOVE 90%
125%
...
-25%
INPUT RANGE
A "
INPUT RANGE
A "
HIGH " 20 MA
LOW " 4 MA
4MA
...
19MA
SWITCH2
A "
TRIP POINT " 10%
125%
ABOVE
...
BELOW
-25%
DISABLED
Quick Start Guide
A
" CHARACTERISTIC

" LINEAR

20MA
QUICK OPEN
...
LINEAR
5MA
EQUAL %
CUSTOM
SWITCH2 CLOSED
A " " SAVE & EXIT?
A
" BELOW 10%
PRESS "
BELOW
ABOVE
DISABLED
D103203X012
A
SAVE & EXIT?
EXIT W/O SAVING
