Using with other equipment
Note
• It may take a short while until the image is displayed,
depending on the equipment connected.
• Make sure to use an HDMI compliant cable.
• When inputting 1080p signals, we recommend you use an
HDMI cable that supports HDMI Category 2.
• When connecting a PC to the HDMI terminal, use the HDMI
compliant PC or video card.
• When connecting a PC to the HDMI terminal using a DVI
output terminal, the plasma television may not display
properly. If that is the case, consult with your PC manufacturer.
• PC picture and/or sound may not be displayed or heard
properly depending on the PC used.

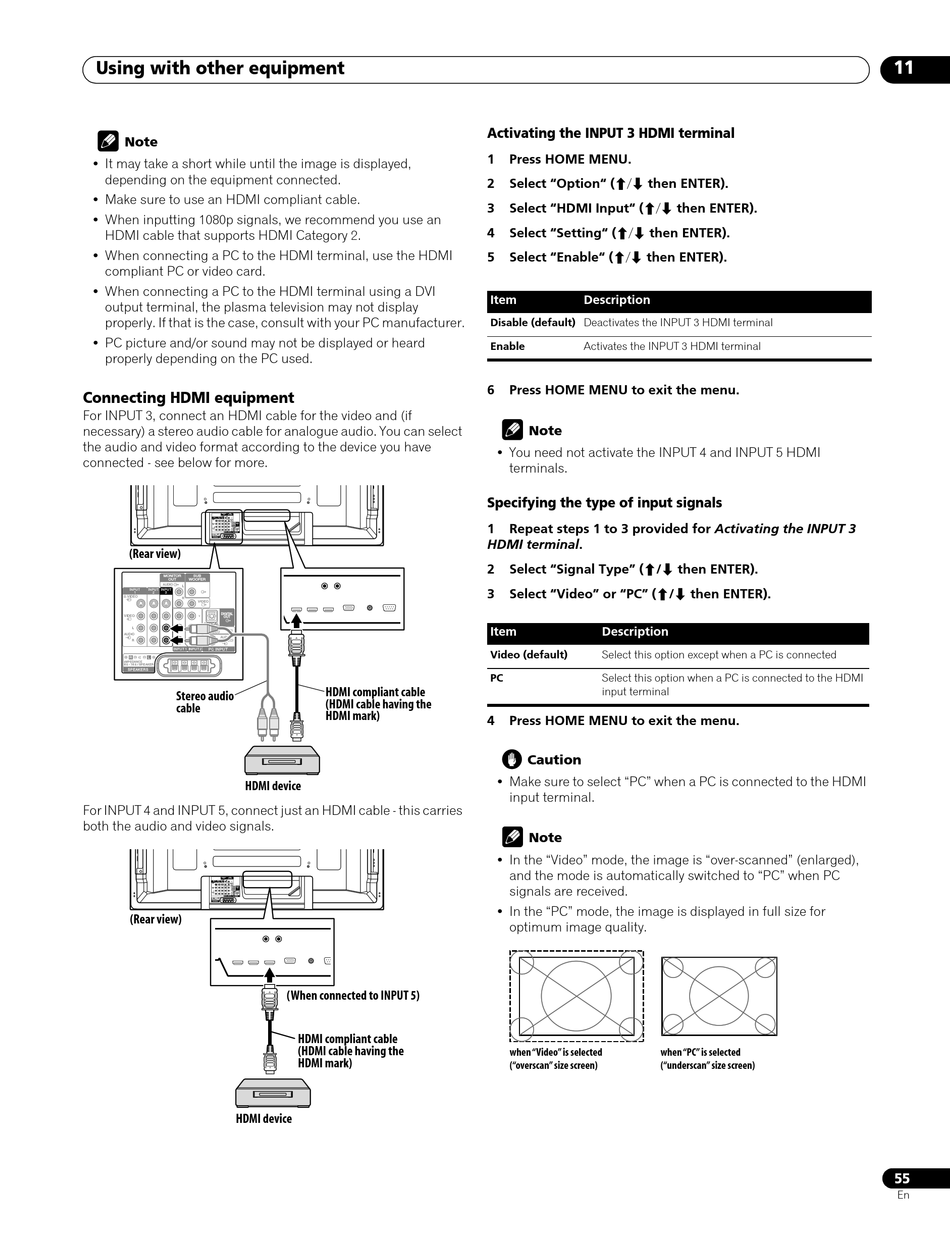

Connecting HDMI equipment

For INPUT 3, connect an HDMI cable for the video and (if
necessary) a stereo audio cable for analogue audio. You can select
the audio and video format according to the device you have
connected - see below for more.
MONITOR SUB
OUT WOOFER
DIGITAL DIGITAL
OUT OUT
OPTICAL OPTICAL
(Rear view)
MONITOR SUB
OUT WOOFER
DIGITAL DIGITAL
OUT OUT
OPTICAL OPTICAL
Stereo audio
cable
HDMI device
For INPUT 4 and INPUT 5, connect just an HDMI cable - this carries
both the audio and video signals.
MONITOR SUB
OUT WOOFER
DIGITAL DIGITAL
OUT OUT
OPTICAL OPTICAL
(Rear view)
HDMI device
HDMI compliant cable
(HDMI cable having the
HDMI mark)
(When connected to INPUT 5)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
Activating the INPUT 3 HDMI terminal
1 Press HOME MENU.
2 Select "Option" (/ then ENTER).
3 Select "HDMI Input" (/ then ENTER).
4 Select "Setting" (/ then ENTER).
5 Select "Enable" (/ then ENTER).
Item Description
Disable (default) Deactivates the INPUT 3 HDMI terminal
Enable Activates the INPUT 3 HDMI terminal
6 Press HOME MENU to exit the menu.
Note
• You need not activate the INPUT 4 and INPUT 5 HDMI
terminals.
Specifying the type of input signals
1 Repeat steps 1 to 3 provided for Activating the INPUT 3
HDMI terminal.
2 Select "Signal Type" (/ then ENTER).
3 Select "Video" or "PC" (/ then ENTER).
Item Description
Video (default)
Select this option except when a PC is connected
PC
Select this option when a PC is connected to the HDMI
input terminal
4 Press HOME MENU to exit the menu.
Caution
• Make sure to select "PC" when a PC is connected to the HDMI
input terminal.
Note
• In the "Video" mode, the image is "over-scanned" (enlarged),
and the mode is automatically switched to "PC" when PC
signals are received.
• In the "PC" mode, the image is displayed in full size for
optimum image quality.
when "Video" is selected when "PC" is selected
("overscan" size screen) ("underscan" size screen)
11
55
En
