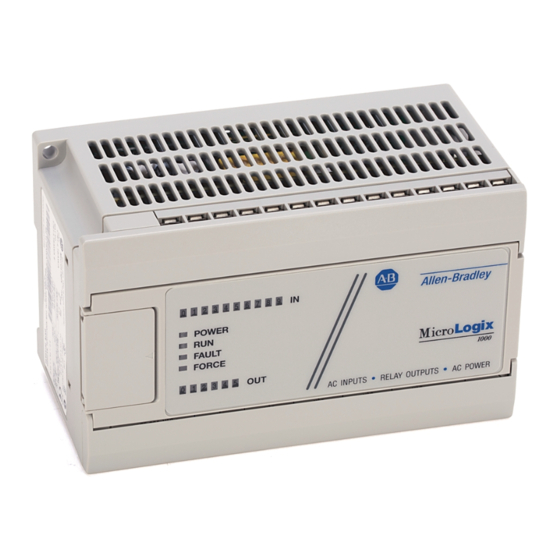

MicroLogix™ 1000 Programmable Controllers
Catalog Numbers 1761-L10BWA, -L10BWB, -L10BXB, -L16AWA, -L16BWA,
-L16BWB, -L16BBB, -L16NWA, -L16NWB, -L20AWA-5A, -L20BWA-5A,
-L20BWB-5A, -L32AAA, -L32AWA, -L32BWA, -L32BWB, -L32BBB
http://literature.rockwellautomation.com/idc/groups/literature/documents/in/
1761-in001_-mu-p.pdf
Cette publication est disponible en français sous forme électronique (fichier PDF). Pour la
FR
télécharger, rendez-vous sur la page Internet indiquée ci-dessus.
Questa pubblicazione è disponibile in Italiano in formato PDF. Per scaricarla collegarsi al sito
IT
Web indicato sopra.
Diese Publikation ist als PDF auf Deutsch verfügbar. Gehen Sie auf die oben genannte
DE
Web-Adresse, um nach der Publikation zu suchen und sie herunterzuladen.
Esta publicación está disponible en español como PDF. Diríjase a la dirección web indicada
ES
arriba para buscar y descarga esta publicación.
Esta publicação está disponível em portugués como PDF. Vá ao endereço web que aparece
PT
acima para encontrar e fazer download da publicação.
Installation Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rockwell Automation MicroLogix 1000
Summary of Contents for Rockwell Automation MicroLogix 1000
- Page 1 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive Installation Instructions MicroLogix™ 1000 Programmable Controllers Catalog Numbers 1761-L10BWA, -L10BWB, -L10BXB, -L16AWA, -L16BWA, -L16BWB, -L16BBB, -L16NWA, -L16NWB, -L20AWA-5A, -L20BWA-5A, -L20BWB-5A, -L32AAA, -L32AWA, -L32BWA, -L32BWB, -L32BBB http://literature.rockwellautomation.com/idc/groups/literature/documents/in/ 1761-in001_-mu-p.pdf Cette publication est disponible en français sous forme électronique (fichier PDF). Pour la télécharger, rendez-vous sur la page Internet indiquée ci-dessus.
- Page 2 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive...
-
Page 3: Table Of Contents
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive Installation Instructions MicroLogix™ 1000 Programmable Controllers Catalog Numbers 1761-L10BWA, -L10BWB, -L10BXB, -L16AWA, -L16BWA, -L16BWB, -L16BBB, -L16NWA, -L16NWB, -L20AWA-5A, -L20BWA-5A, -L20BWB-5A, -L32AAA, -L32AWA, -L32BWA, -L32BWB, -L32BBB Topic Page Important User Information Overview Catalog Number Detail Related Publications Safety Considerations Physical Dimensions Mounting Your Controller Horizontally... -
Page 4: Important User Information
Reproduction of the contents of this copyrighted publication, in whole or part, without written permission of Rockwell Automation, is prohibited. Throughout this publication, notes may be used to make you aware of safety considerations. -
Page 5: Overview
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Identifies information that is critical for successful application IMPORTANT and understanding of the product. Overview Install your controller using these installation instructions. The only tools you require are a Flat head or Phillips head screwdriver and drill. Catalog Number Detail The catalog number for the controller is composed of the following: 1761 - L 20 A W A - 5 A... -
Page 6: Related Publications
MicroLogix™ 1000 Programmable Controllers For More Information Related Publications Refer to this Document Pub. No. A description on how to use your MicroLogix 1000 MicroLogix 1000 Programmable 1761-6.3 programmable controllers. This manual also contains Controllers User Manual status file data and instruction set information. -
Page 7: Safety Considerations
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Safety Considerations This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or non-hazardous locations only (when product or packing is marked). Explosion Hazard: WARNING • Substitution of components may impair suitability for Class I, Division 2. - Page 8 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Sécurité Cet équipement est conçu pour être utilisé dans des environnements de Classe 1, Division 2, Groupes A, B, C, D ou non dangereux (si indiqué sur le produit ou l'emballage). Danger d'explosion : AVERTISSEMENT •...
-
Page 9: Physical Dimensions
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Physical Dimensions Controller: 1761- Length: mm (in.) Depth: mm (in.) Height: mm (in.) L10BWA 120 (4.72) 73 (2.87) 80 (3.15) L16BWA L16NWA L16AWA 133 (5.24) L20AWA-5A 200 (7.87) L20BWA-5A L32AWA L32BWA L32AAA L10BWB 120 (4.72) 40 (1.57) -
Page 10: Mounting Your Controller Horizontally
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Mounting Your Controller Horizontally The controller should be mounted horizontally within an enclosure using either the DIN rail or mounting screw option. Use the mounting template from the front of this document to help you space and mount the controller properly. Be careful of metal chips when drilling mounting holes for ATTENTION your controller. - Page 11 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers To remove your controller from the DIN rail: Side View 1. Place a screwdriver in the DIN rail latch at the bottom of the controller. DIN Rail 2. Holding the controller, pry downward on the latch until the controller is released from the DIN rail.
- Page 12 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Description: Specification: Operating Temperature 0°C to +40°C (+32°F to +113°F) Operating Shock 9.0g peak acceleration (11 ± 1 ms duration) Side Side (Panel mounted) 3 times each direction, each axis Operating Shock 7.0g peak acceleration (11 ±...
-
Page 13: Wiring Your Controller
Stranded #16 to #22 AWG The diameter of the terminal screw head is 5.5 mm (0.220 in.). IMPORTANT The input and output terminals of the MicroLogix 1000 controller are designed for the following spade lugs: Call-out Dimension 6.35 mm (0.250 in.) 10.95 mm (0.431 in.) maximum... - Page 14 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers If you use wires without lugs, make sure the wires are securely IMPORTANT captured by the pressure plate. This is particularly important at the four end terminal positions where the pressure plate does not touch the outside wall of the controller.
-
Page 15: Grounding Your Controller
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Grounding Your Controller In solid-state control systems, grounding helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw of the controller (third screw from left on output terminal rung) to the ground bus. -
Page 16: Surge Suppression
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Surge Suppression Inductive load devices such as motor starters and solenoids require the use of some type of surge suppression to protect the controller output contacts. Switching inductive loads without surge suppression can significantly reduce the life expectancy of relay contacts. - Page 17 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Suitable surge suppression methods for inductive load devices include a varistor, an RC network, or, for dc loads, a diode. These components must be appropriately rated to suppress the switching transient characteristic of the particular inductive device.
- Page 18 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Recommended Surge Suppressors We recommend the Allen-Bradley surge suppressors shown in the following table for use with Allen-Bradley relays, contactors, and starters. Device Coil Voltage Suppressor Catalog Number Bulletin 509 Motor Starter 120V ac 599-K04 Bulletin 509 Motor Starter...
-
Page 19: Sinking And Sourcing
- Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Sinking and Sourcing Any MicroLogix 1000 DC input can be configured as sinking or sourcing depending on how the DC COM terminal is wired. Mode: Definition: Sinking The input energizes when high-level voltage is applied to the input terminal (active high). -
Page 20: Wiring Your Analog Channels
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Wiring Your Analog Channels Analog input circuits can monitor current and voltage signals and convert them to serial digital data. The analog output can support either a voltage or a current function as shown in the following illustration. Sensor 2 Sensor 3 (V) Voltage... -
Page 21: Specifications
Several specific steps can be taken to help reduce the effects of environmental noise on analog signals: • install the MicroLogix 1000 system in a properly rated (i.e., NEMA) enclosure. Make sure that the MicroLogix 1000 system is properly grounded. - Page 22 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Description Specification Storage Temperature -40°C to +85°C (-40°F to +185°F) Operating Humidity 5 to 95% non-condensing • C-UL Class I, Division 2 Groups A,B,C,D certified Agency Certification (when product or packaging is •...
- Page 23 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Refer to page 12 for vertical mounting specifications. Relays are derated an additional 2.5g on 32 pt. controllers. Analog General Specifications Description: Specification: 1761-L 20AWA-5A 20BWA-5A 20BWB-5A Memory Size and Type 1 K EEPROM (approximately 737 instruction words: 437 data words) Power Supply Voltage 85-264V ac, 47-63 Hz 20.4-26.4V dc...
- Page 24 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Description Specification 100-120V ac Controllers 24V dc Controllers On Current 5.0 mA min. at 79V ac 47 Hz 2.5 mA min. at 14V dc 12.0 mA nominal at 120V ac 60 Hz 8.0 mA nominal at 24V dc 16.0 mA max.
- Page 25 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Description Specification 210K Ω Voltage Input Impedance Current Input Impedance 160Ω 16 bit Input Resolution Non-linearity 0.002% Overall Accuracy 0°C to +55°C ±.0.7% of full scale Overall Accuracy Drift 0°C to +55°C (max.) ±0.176% Overall Error at +25°C (+77°F) (max.) ±0.525%...
- Page 26 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Type Relay MOSFET Triac Off to On Response 10 ms max. 0.1 ms 8.8 ms at 60 Hz 10.6 ms at 50 Hz On to Off Response 10 ms max. 1 ms 11.0 ms Surge Current per Point Not Applicable 4A for 10 ms 10A for 25 ms...
- Page 27 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Notes: Publication 1761-IN001C-EN-P - March 2008...
- Page 28 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive MicroLogix™ 1000 Programmable Controllers Notes: Publication 1761-IN001C-EN-P - March 2008...
- Page 29 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive Mounting Template 192 mm 125 mm (7.55 in.) (4.92 in.) 112 mm (4.41 in.) Use this template to install your controller . For more information about your controller, refer to the first page of your native language section. Servez-vous de ce gabarit pour installer votre auto- mate.
- Page 30 efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive...
- Page 31 New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
