Controls and displays
Chapter 3
Controls and displays

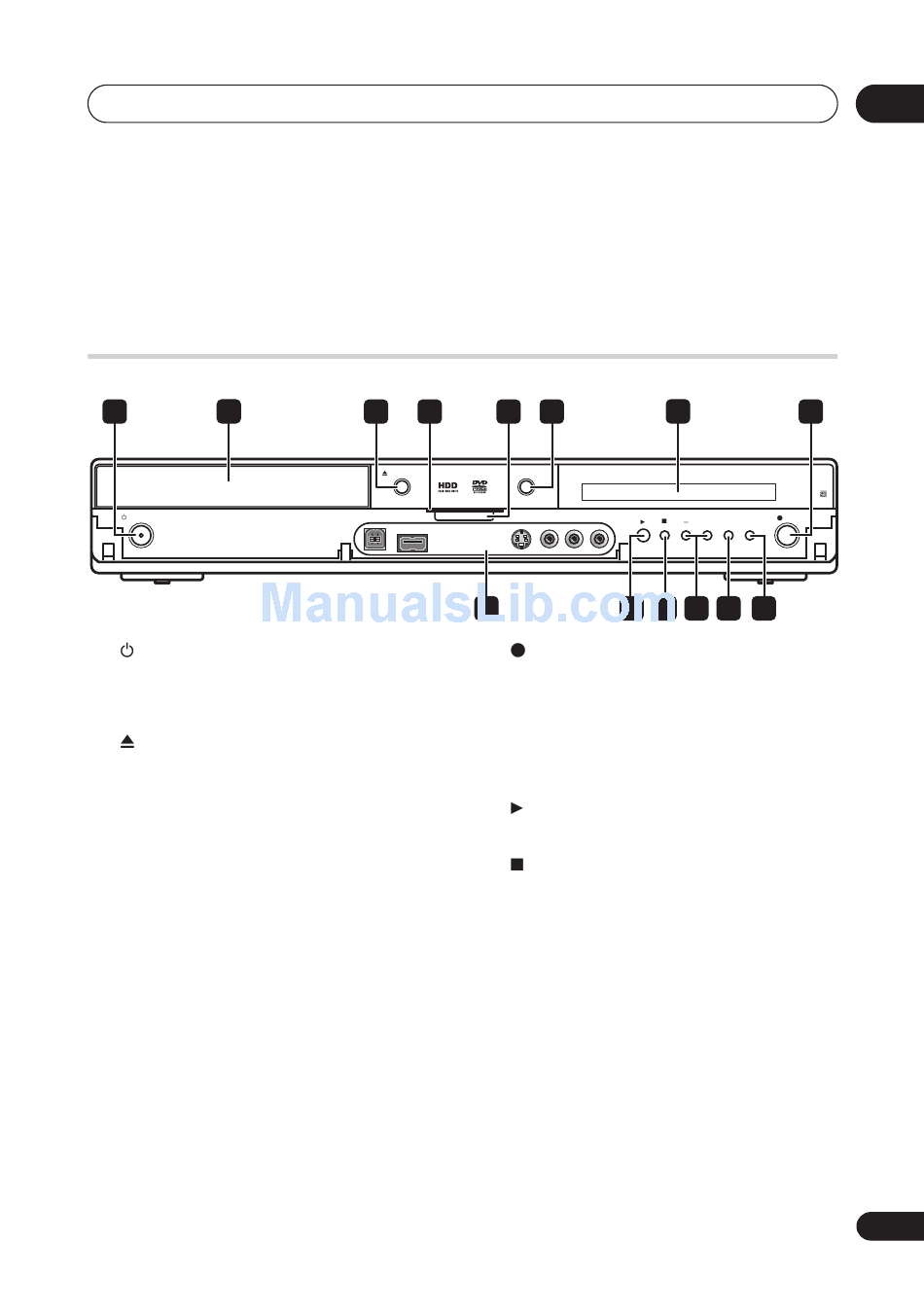

Front panel

1 2
STANDBY/ON
DVR-640H-S/DVR-543H-S
1 STANDBY/ON
Press to switch the recorder on/into standby.
2 Disc tray
3 OPEN/CLOSE
Press to open/close the disc tray.
4 HDD / DVD indicators
Indicator lights blue when the hard disk
(HDD) is selected; orange when the DVD
drive is selected.
5 HELP FUNCTION
Press to display the on-screen help.
6 HDD/DVD
Press to switch between HDD and DVD for
recording and playback.
7 Front panel display and IR remote
sensor
See Display on page 28 for details.
3 4 5
OPEN/CLOSE HDD/DVD
9
8 REC
Press to start recording. Press repeatedly to
set the recording time in 30 minute blocks.
9 Front panel inputs
See Front panel connections on page 17 for
more information on these.
10
Press to start or restart playback.
11
Press to stop playback.
12 CH +/–
Use to change channels, skip chapters/
tracks, etc.
13 ONE TOUCH COPY (page 81)
Press to start One Touch Copy of the
currently playing title to DVD or the HDD.
14 STOP REC
Press to stop recording.
6 7
– +
CH
10 11 12 13
03
8
ONE
REC
TOUCH STOP
REC
COPY
14
25
En
