ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver
.

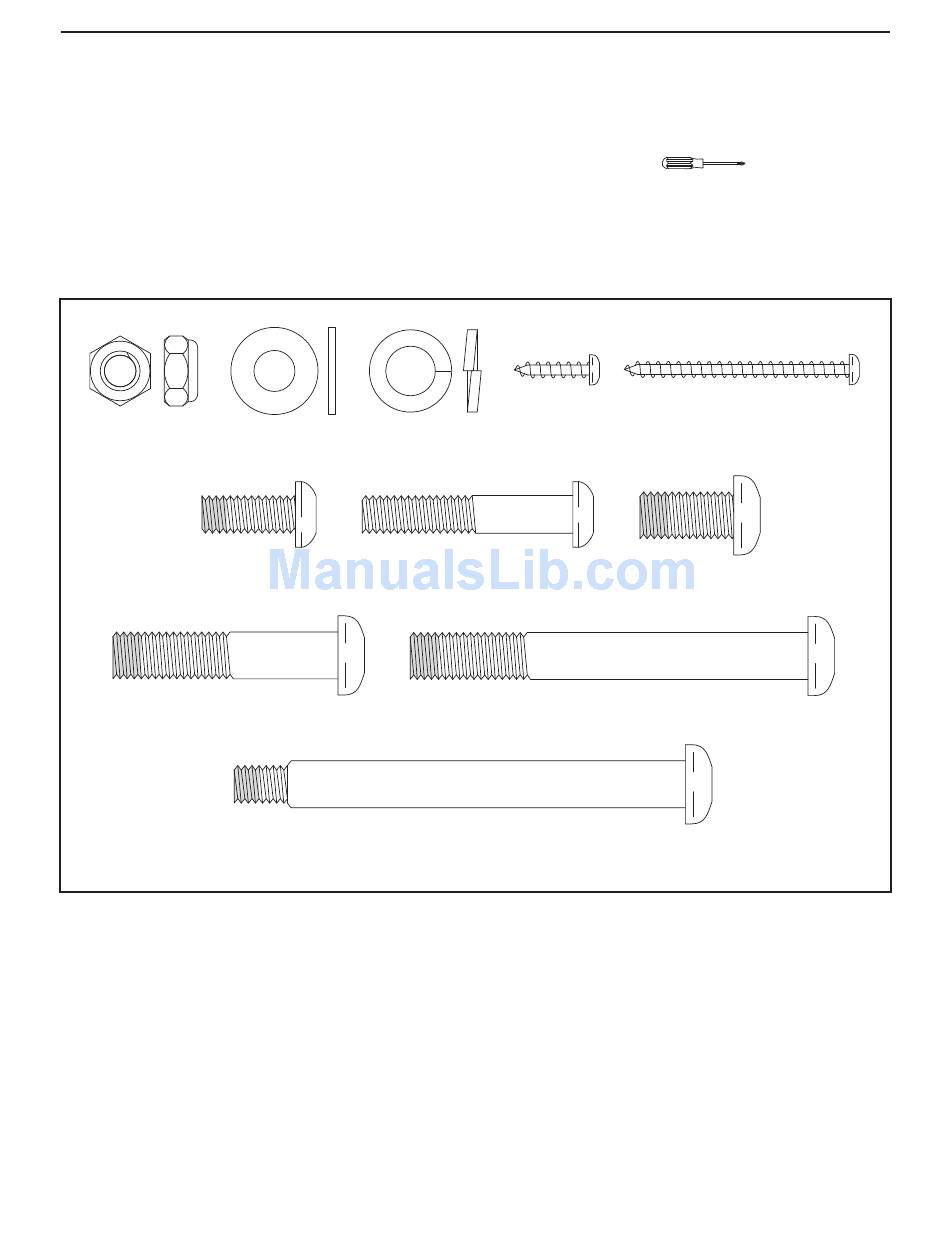

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled. If a part is missing, call 1-888-533-1333.
M4 x 16mm
M4 x 48mm
M8 Jam Nut
M8 Washer
M10 Split
Screw (89)–2
Screw (92)–7
(77)–4
Washer (78)–10
(33)–2
M8 x 20mm
M10 x 20mm Patch
M8 x 45mm Button
Patch Screw
Bolt (76)–4
Screw (79)–7
(80)–2
M10 x 48mm Patch
M10 x 85mm Patch Screw (82)–4
Screw (75)–6
Shoulder Patch Bolt (31)–2
5
