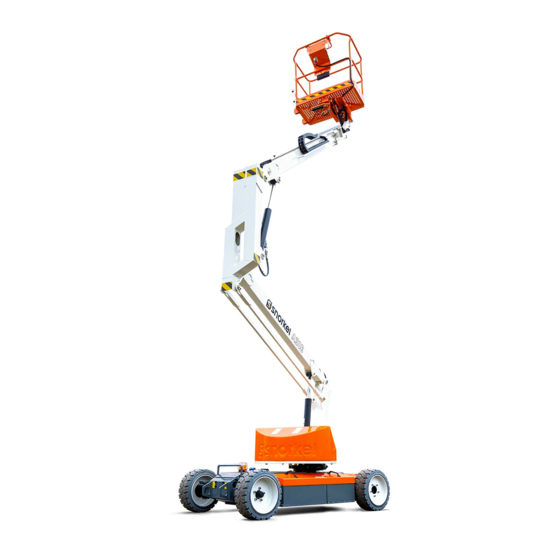

Snorkel A38E Operator's Manual

Aerial work platform serial number 007300 +
Hide thumbs Also See for A38E:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
OPERATORS
MANUAL
Part number 514252-000-EN
Nov 2016
Serial Number 007300 +

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A38E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snorkel A38E

Summary of Contents for Snorkel A38E

  • Page 1 OPERATORS MANUAL Part number 514252-000-EN Nov 2016 Serial Number 007300 +...
  • Page 3 The Serial Number of the Work Platform is also stamped on the inside of the Chassis, close to the Steering Cylinder. The A38E work platform meets and exceeds the requirements of both: En280:2001 and ANSI A92.5 (1992) A38E Work Platform...

  • Page 5: Safety Rules

    NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas. Modifications to the aerial work platform are prohibited or permissible only at the approval by Snorkel . AFTER USE, secure the work platform from unauthorized use by turning the keyswitch off and removing key.

  • Page 6: Table Of Contents

    Drive & Steer Systems ........................Page 4 Power System ..........................Page 4 Control System ..........................Page 4 Chassis ............................Page 4 A38E Purpose & Limitations ......................Page 4 Snorkel Guard Overide Switch ......................Page 4 Specifications ............................Page 5 Notes ..............................Page 6 Machine Preparation Preparation For Use ..........................

  • Page 7: Introduction & Specifications

    1.1 General Information cylinder features an integral holding valve to prevent uncontrolled descent in the case of a hose burst. The A38E is a quickly deployable self propelled ROTATION GEAR aerial work platform, designed to raise two operators The Booms & Posts Assembly can be rotated to with hand tools to a work height of up to 13.45 m...

  • Page 8: Drive & Steer Systems

    DRIVE & STEER SYSTEMS A38E PURPOSE & LIMITATIONS The A38E Work Platform is restricted to low speed The purpose of the A38E work platform is to provide drive when the Platform is raised above the Boom a quickly deployable variable height work platform.

  • Page 9: Specifications

    400 mm Diameter Steel Disc Wheel With 15.75 inch Diameter Steel Disc Wheel Solid All Surface Tyres With Solid All Surface Tyres Braking Automatic Spring Applied Hydraulic Automatic Spring Applied Hydraulic Release Release Max Noise Level 69.5 dB(A) 69.5 dB(A) A38E Work Platform Page 5...

  • Page 10: Notes

    Introduction & Specifications Section NOTES: Page 6 A38E Work Platform...

  • Page 11: Machine Preparation

    Four lifting straps capable of safely supporting the on to the vehicle in its freewheel state. total weight of the A38E ( (3,770 Kg /7,430 lbs CE Version & 4,010 Kg /8,840 lbs ANSI Version) and at Refer to Section 2.6 which follows.

  • Page 12: Manual Brake Release

    Machine Preparation Section When the A38E is on the Truck it should then be When towing is completed, turn both Allen made secure. head socket screws in a counter clockwise direction until they rest firmly against the locking circlip. Chock the wheels of the A38E.

  • Page 13: Charging

    • The LED charge indicators will be lit while the Use the following procedure to charge the batteries. batteries are charging. A38E Work Platform Page 9...
  • Page 14 Visually check the battery fluid level making sure the level is 3/8″ (10 mm) above the plates. If needed, add distilled water. 10. Tightly replace the caps on each battery Page 10 A38E Work Platform...

  • Page 15: Operation

    The Drive function is operated by utilising two drive Momentarily operate the drive function switch to motors which are controlled by a Electronic Traction drive and the A38E will also be able to steer. To steer Motor Controller. the machine the Rocker should be pushed to the...

  • Page 16: Design Features

    Note: Machines supplied to Australia require that the operation of the Function Selector switch must be The A38E Series Work Platform is equiped with a ‘held’ on until after the Joystick Interlock Switch is display in the chassis control panel which displays depressed.

  • Page 17: Safety Rules & Precautions

    A W A R N I N G A NEVER change or modify operating or safety systems. Before using the A38E Work Platform it is imperative to read, understand and follow the INSPECT the machine thoroughly for cracked welds, following Safety Rules and Precautions.

  • Page 18: Controls & Indicators

    3.2 Controls and Indicators The controls and indicators for operation of the A38E Work Platform are shown in Figures 3-1 & 3-2. The name and function of each control and indicator are listed in Tables 3-1. The index numbers in the figure correspond to the index numbers in the table.
  • Page 19 Operation Section 512937-000 512940-000 Table 3-1: Controls and Indicators A38E Work Platform Page 15...

  • Page 20: Pre-Operation Inspection

    Check for missing or loose If there are any concerns about the safe use parts. or operation of the A38E following this Pre- SYSTEM FUNCTION INSPECTION Operation Inspection DO NOT USE THE A38E Turn both Chassis and Platform Emergency WORK PLATFORM.

  • Page 21: Opertaion

    (twisted clockwise). LOWERED Enter Platform through the entrance at the side of the A38E and ensure that the drop bar is in Verify that the chassis Emergency Stop Button is in the ‘ON’ position (turn clockwise) and the lowered position. Lock the Entry Step in the raised position.

  • Page 22: Elevated

    Enter Platform through the entrance at the side obstructions, pot holes or ledges and is of the A38E and ensure that the drop bar is in capable of supporting the wheel loads. Also, the lowered position. Lock the Entry Step in check that the clearances above, below and to the raised position.

  • Page 23: Emergency Situations

    Note that during emergency operation, controls will operate at a fixed, slow speed and will not allow the raising or extending of the Booms. The Booms can be lowered or retracted. A38E Work Platform Page 19...

  • Page 24: After Use Each Day

    Remove wrench. If it is determined that all controls are released and operation can proceed, return the emergency stop to the on position, and activate the Snorkel Guard override switch. Apply Socket Here Activate the necessary functions to move the platform away from the obstacle that caused the Snorkel Guard activation.
  • Page 25 Operation Section Hand Pump Hydraulic Valve Tank Valve Block Hand Pump Handle Figure 3-5: Manual Telescopic Retraction A38E Work Platform Page 21...

  • Page 26: Daily Preventitive Maintenance Checklist

    Daily Preventative Maintenance Checklist DAILY PREVENTATIVE MAINTENANCE CHECKLIST MAINTENANCE TABLE KEY PREVENTATIVE MAINTENANCE REPORT Y = Yes/Acceptable Date: _____________________________________ N = No/Not Acceptable Owner: ___________________________________ R = Repaired/Acceptable Model No: _________________________________ Serial No:__________________________________ Serviced By: _______________________________ COMPONENT INSPECTION OR SERVICES Check electrolyte level.

  • Page 27: Notes

    Maintenance Section NOTES: A38E Work Platform Page 23...
  • Page 30 Local Distributor / Lokaler Vertiebshändler / Distributeur local El Distribuidor local / ll Distributore locale EUROPE, MIDDLE EAST AFRICA & ASIA PHONE: +44 (0) 845 1550 058 FAX: +44 (0) 845 1557 756 NORTH & SOUTH AMERICA PHONE: +1 785 989 3000 TOLL FREE: +1 800 255 0317 FAX: +1 785 989 3070 AUSTRALIA...
