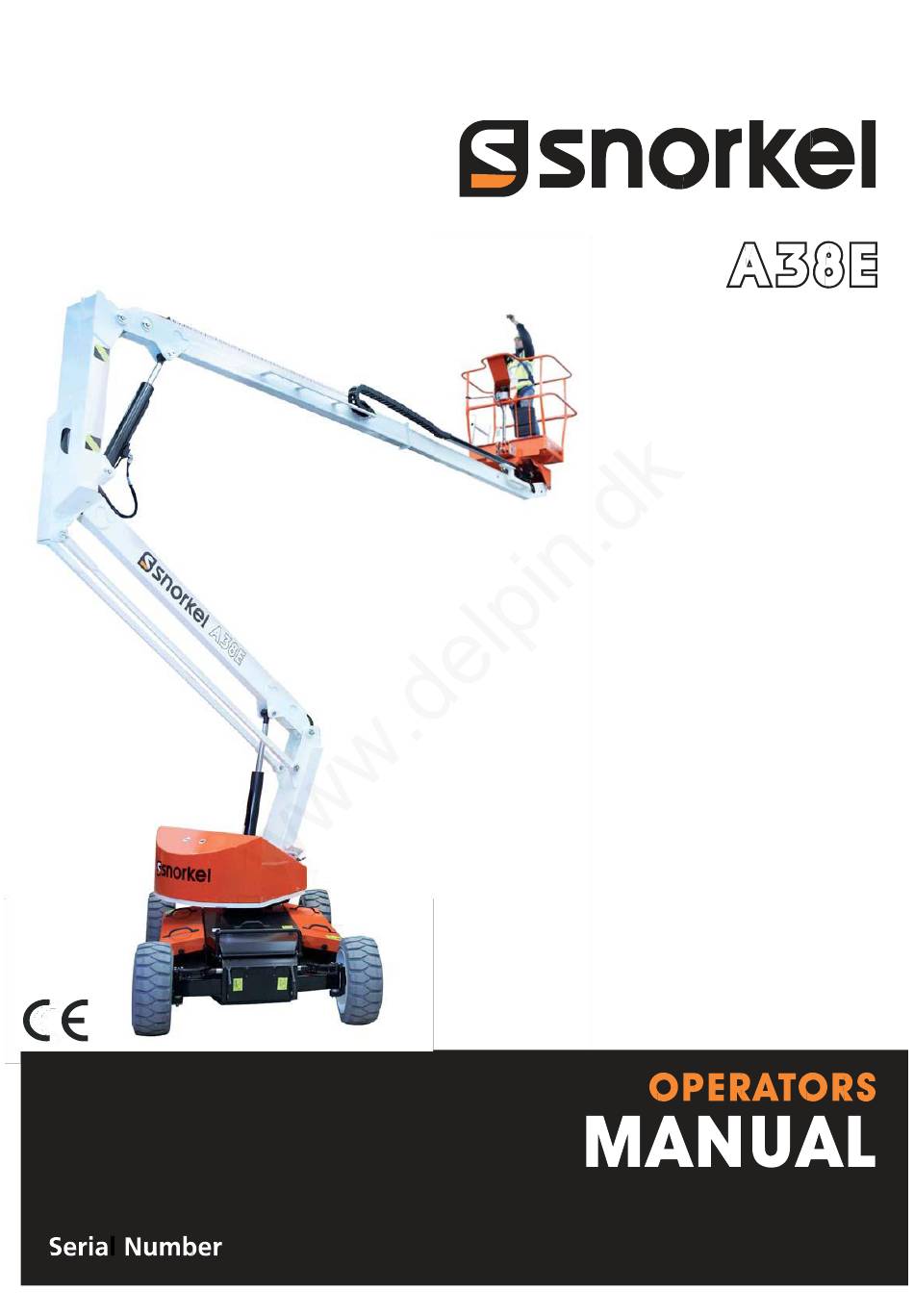

  • Page 1 Part number 514252-000-EN March 2014 006001 +...
  • Page 2 The Serial Number of the Work Platform is also stamped on the inside of the Chassis, close to the Steering Cylinder. The A38E work platform meets and exceeds the requirements of both: En280:2001 and ANSI A92.5 (1992) A38E Work Platform...
  • Page 3 NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas. Modifications to the aerial work platform are prohibited or permissible only at the approval by Snorkel . AFTER USE, secure the work platform from unauthorized use by turning the keyswitch off and removing key.

  • Page 4: Safety Rules

    Harness attachment points are provided in the platform and the manufacturer recommends the usage of a fall restraint harness, especially where required by national safety regulations. All harness attachment points on SNORKEL vehicles have been tested with a force of 3,650 lbs (16.3 KN) per person.

  • Page 5: Table Of Contents

    Page 4 A38E Purpose & Limitations ..............

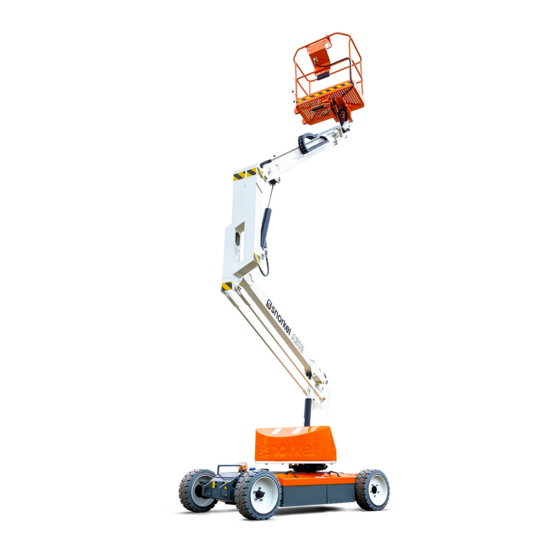

  • Page 6: Introduction & Specifications

    1.1 General Information cylinder features an integral holding valve to prevent uncontrolled descent in the case of a hose burst. The A38E is a quickly deployable self propelled aerial work platform, designed to raise two operators with ROTATION GEAR hand tools to a work height of up to 13.45 m (44.12 The Booms &...

  • Page 7: Drive & Steer Systems

    A38E PURPOSE & LIMITATIONS The A38E Work Platform is restricted to low speed The purpose of the A38E work platform is to provide a drive when the Platform is raised above the Boom quickly deployable variable height work platform. It is Rest Limit Switch.

  • Page 8: Specifications

    15.75 inch Diameter Steel Disc Wheel Wheels/Tyres With Solid All Surface Tyres With Solid All Surface Tyres Automatic Spring Applied Automatic Spring Applied Braking Hydraulic Release Hydraulic Release 69.5 dB(A) 69.5 dB(A) Max Noise Level A38E Work Platform Page 5...

  • Page 9: Notes

    Section Introduction & Specifications NOTES: Page 6 A38E Work Platform...

  • Page 10: Machine Preparation

    Four lifting straps capable of safely supporting the Refer to Section 2.6 which follows. total weight of the A38E ( (3,770 Kg /7,430 lbs CE A38E Work Platform Page 7...

  • Page 11: Manual Brake Release

    Section Machine Preparation When the A38E is on the Truck it should then be When towing is completed, turn both Allen head made secure. socket screws in a counter clockwise direction until they rest firmly against the locking circlip. Chock the wheels of the A38E.

  • Page 12: Notes

    Machine Preparation Section NOTES: A38E Work Platform Page 9...
  • Page 13 Section Machine Preparation NOTES: Page 10 A38E Work Platform...

  • Page 14: Operation

    Momentant betjening kørefunktionen skift til elektriske kredsløb, og dets komponenter, til en ECU. kørsel og A38E vil også være i stand til at styre. At styre maskinen ’Rocker’ skal enten skubbes til venstre eller højre, mens Joystick Interlock Switch er tændt.

  • Page 15: Design Features

    Hver INDIKATOR. Funktion vil have det tilsvarende graphicand lampe. Den A38E Series Work Platform er udstyret med et Denne omskifter indikerer til kontrolleren, som funktionen er påkrævet, og ved hjælp af joysticket display, som viser samlede køre timer & en kan hastigheden på...

  • Page 16: Safety Rules & Precautions

    / h - Beaufort force 6) WARNING ALDRIG ændre eller modificere drifts- eller sikkerhed. Før du bruger A38E arbejdsplatformen er det systemer. bydende nødvendigt at læse, forstå og følge Efterse maskinen grundigt for revnede svejsninger, følgende regler og sikkerhedsforanstaltninger.

  • Page 17: Controls & Indicators

    Section Operation 3.2 Controls and Indicators De kontrollere og indikatorer for drift af A38E arbejdsplatformen er vist i figur 3-1 og 3-2. Navn og funktion af hver kontrol og indikator er anført i tabel 3-1. Indeksnumrene i figuren svarer til indekset Tallene i tabellen.

  • Page 18: Pre-Operation Inspection

    Operation Section OU T 512937-000 512940-000 Figure 3-1: Controls & Indicators A38E Work Platform Page 15...

  • Page 19: Opertaion

    A38E efter denne SYSTEM FUNKTION INSPEKTION Pre- Operation Inspektion MÅ DER IKKE BRUGES Vend både chassis og Platform advarsel A38E arbejdsplatform. Kontakt din leverandør eller Stop skifter ON (drej med uret). Snorkel Product Support Department. Tænd Nøgleafbryder på nedre styreboks til "LOWER CONTROL”.

  • Page 20: Elevated

    ønskede retning Før Platformen i gennem indgangen ved siden langsomt. Jo længere du skubber eller trækker af A38E og sikre, at drop bar er i sænket Joystick fra midten, jo hurtigere maskinen vil position. Lock Entry Step i hævet stilling.

  • Page 21: Control From Ground Level

    Nivellering funktion fungerer kun, når Bommet Rest Betjen først ved at skubbe langsomt. Bommen vil Limit Switch er aktiveret dvs. når Bommet er I stige ned langsomt. Den nedadgående hastighed trandsportposition. styres ved at bibeholde tryk på ventilen - Page 18 A38E Work Platform...
  • Page 22 Drej nøglen til OFF og fjern nøglen til at Placer dækslet på Chassis. forhindre uautoriseret drift. Genoplad batteriet i overensstemmelse med instruktioner i afsnit 4.2. A38E Work Platform Page 19...

  • Page 23: Manual Telescopic Retraction

    Section Operation Hand Pump Hydraulic Valve Tank Valve Block Hand Pump Handle Figure 3-4: Manual Telescopic Retraction Page 20 A38E Work Platform...

  • Page 24: Notes

    Operation Section NOTES: A38E Work Platform Page 21...

  • Page 25: Daily Preventitive Maintenance Checklist

    Daily Preventative Maintenance Checklist AILY REVENTATIVE AINTENANCE HECKLIST AINTENANCE ABLE REVENTATIVE AINTENANCE EPORT Date: Y = Yes/Acceptable N = No/Not Acceptable Owner: R = Repaired/Acceptable Model No: Serial No: Serviced By: COMPONENT INSPECTION OR SERVICES Check electrolyte level. Battery Check battery cable condition. Check hoses for pinch or rubbing points.
  • Page 26 Maintenance Section NOTES: A38E Work Platform Page 23...
  • Page 27 Local Distributor / Lokaler Vertiebshändler / Distributeur local El Distribuidor local / ll Distributore locale EUROPE, MIDDLE EAST AFRICA & ASIA PHONE: +44 (0) 845 1550 058 FAX: +44 (0) 845 1557 756 NORTH & SOUTH AMERICA PHONE: +1 785 989 3000 TOLL FREE: +1 800 255 0317 FAX: +1 785 989 3070 AUSTRALIA...
