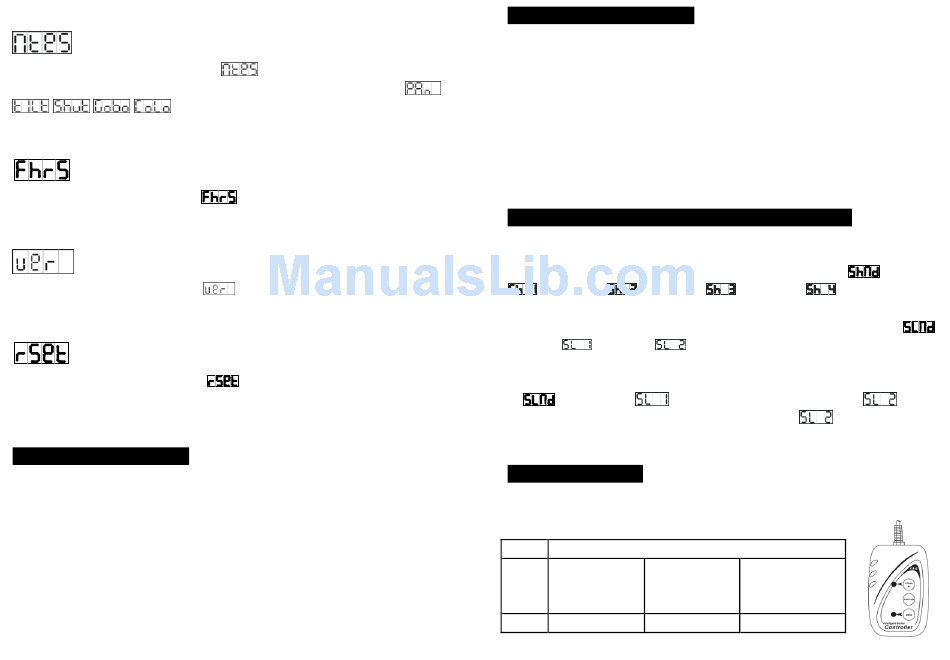

program. Back to the f unctions press MENU button again.
Master Mode
Press the MENU button up to when the
ENTER button and the display will blink. Use DOWN and UP button to select the
. Once the mode has been selected, press the ENTER
button to setup or automatically return to the main f unctions without any change after 8
seconds. To go back to the f unctions without any change press the MENU button again.
Fixture Hours
Press the MENU button up to when the
button and the display will show the number of working hours of the unit. To go back to the
f unctions press the MENU button again.
Sof tware version
Press the MENU button up to when the
button and the display will show the v ersion of software of the unit. To go back to the
f unctions press the MENU button again.
Reset
Press the MENU button up to when the
button and all channels of the unit will return to their standard position. To go back to the
f unctions without any change press the MENU button again.
4.3 Home Position Adjust
Press MENU button f or at least 5 seconds into offset mode to adjust the home position, use
DOWN and UP button up to when the function (Focus, Pan, Tilt, Color, Gobo) is shown on
the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to
adjust the home position. Once the position has been selected, press the ENTER button to
setup or automatically return to the offset f unctions without any change press the MENU
button again, To go back to the main f unctions without any change after 8 seconds.
is showing on the display. Pressing
is blinking on the display. Pressing ENTER
is blinking on the display. Pressing ENTER
is blinking on the display. Pressing ENTER
10-

5. How To Control The Unit

You can operate the unit in three way s:
1. By master/slav e built-in preprogram f unction
2. By easy controller
3. By iLead controller ( please refer to the user guide of iLead ) or univ ersal DMX controller
No need to turn the unit off when y ou change the DMX address, as new DMX address
setting will be effected at once. Ev ery time y ou turn the unit on, it will show 200S on the
display and mov e all the motors to their 'home' position and y ou may hear some noises for
about 20 seconds. After that the unit will be ready to receive DMX signal or run the built in
programs.
5.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slav e connection, the first unit will control the other units to
giv e an automatic, sound activated, synchronized light show. This f unction is good when you
want an instant show. You hav e to set the first unit in master mode
(show 1) or (show 2) or
DMX input jack will have nothing plugged into it, and Its master LED will be constantly on
and sound LED will flash to the music. The other units will hav e to set in slav e mode
and select (normal) or
the DMX input jacks (daisy chain) and the slav e led lights will constantly on.
2-light show
In (slave mode), means the unit works normally and
2-light show. In order to create a great light show, y ou can set
get contrast mov ement to each other, ev en if y ou hav e two units only.
5.2 Easy Controller
The easy remote control is used only in master/slave mode. By connecting to the 1/4"
microphone jack of the f irst unit, you will find that the remote control on the first unit will
control all the other units f unctions press the MENU button again.
Stand By Blackout the unit
Function 1. Sync. Strobe Select Show 1-4
2. Two-light strobe
3. Sound Strobe
Mode Sound (LED OFF) Show (LED Strobe)
(show 3) or (show 4) mode. Its
(2 light show) mode, Their DMX cables plugged into
on the second unit to
Select Gobo/Color
LED ON
