* Note:
- Do not install near magnetic activity, humid temperatures, extreme heating conditions,
under direct sunlight as these may damage the condition and performance of the prod
ucts.
- The position of the unit's body should fit the standard height from the range which is
recommended to be from 1450㎜ ~ 1500㎜.
Installation method of a camera unit.
* Note:
- Do not install the camera where it is exposed to direct sunlight.
- Keep cleaning up its lens to capture good views.

4. Wiring

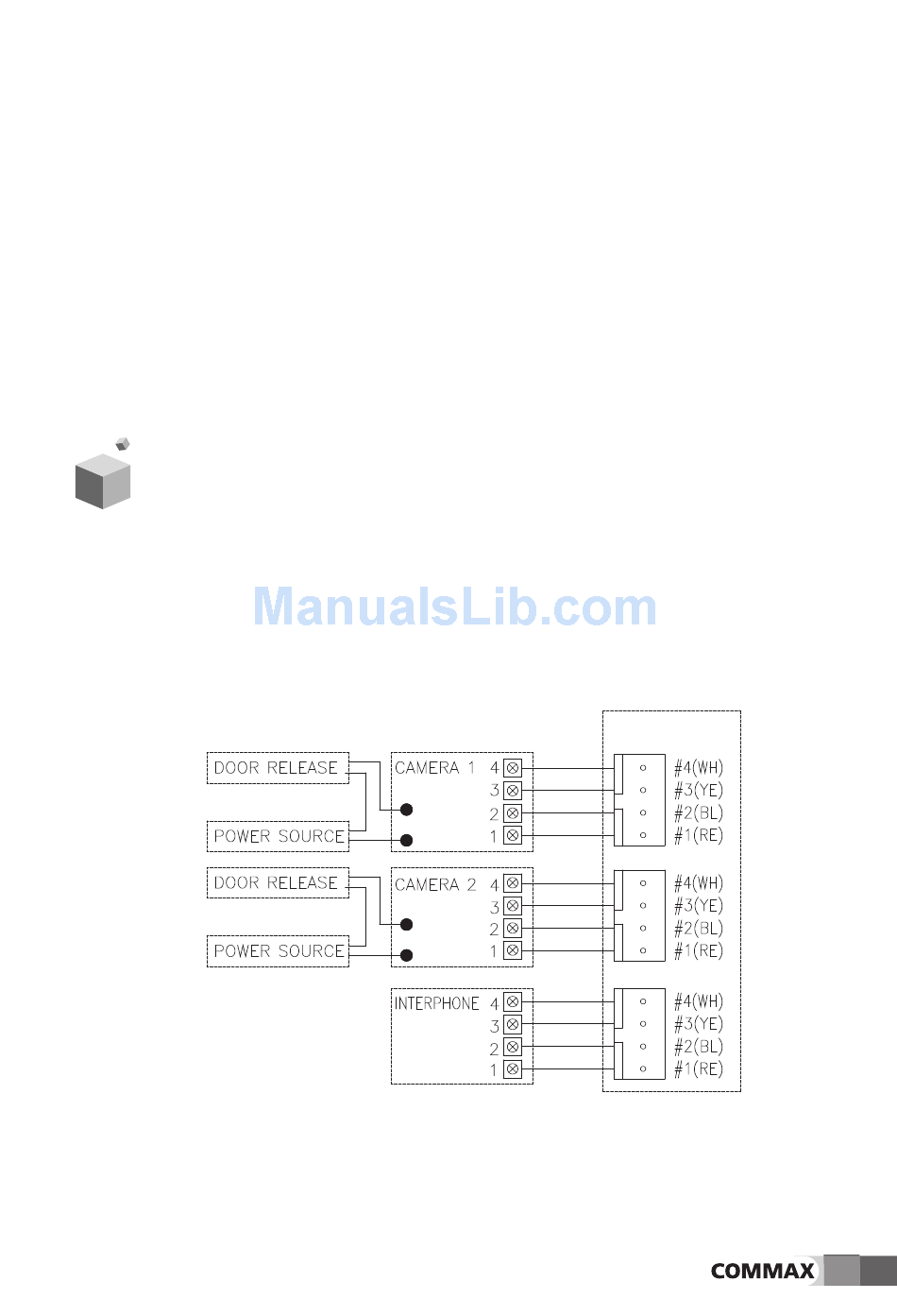

* Wires descriptions of camera.
1. Red: Voice 2. Blue: GND 3. Yellow: Power(+12V) 4. White: Video
- DPV-4BE
DPV-4BE
7
