User Manual

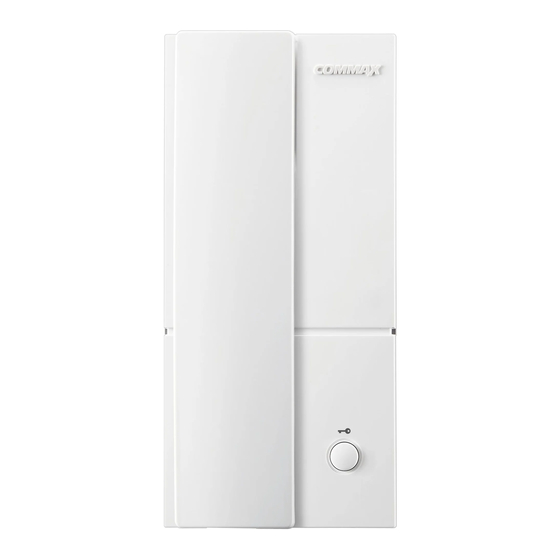

DOOR PHONE DP-201LA
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax DP-201LA
Summary of Contents for Commax DP-201LA
-
Page 1: User Manual
User Manual DOOR PHONE DP-201LA • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction .............2 2. Important Safeguards ........3 3. Overview............4 4. Operation ............5 5. Wiring..............6 6. Specifications..........7... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spilled or objects have fallen into the unit ⓒ... -
Page 5: Overview
3. Overview Controls and functions ROOM STATION DOOR STATION ① VOLUME SWITCH ① SPEAKER ② HANDSET ② CALL BUTTON ③ DOOR RELEASE BUTTON ③ WALL MOUNTING BRACKET ④ HANDSET CORD ④ MICROPHONE ⑤ POWER CORD... -
Page 6: Operation
4. Operation 1. When the call button(② on the door station) is pressed, the chime sounds. 2. Adjust the volume switch(① on the room station) to control the call sound. 3. Pick up the handset(② on the room station) to talk. 4. -
Page 7: Wiring
5. Wiring ① Connect two wires of door station (1) to the terminal ①, ② of room-station (2). ② Connect electrical door-lock(3) to the terminal ⑤, ⑥ as below picture. ③ When finished the connection, put in the power cord at AC outlet. -
Page 8: Specifications
6. Specifications POWER SOURCE 220V~, 50Hz High 300mW across 8 ohm OUTPUT POWER Low 50mW across 8 ohm DISTANCE 100m(Ø0.65mm), 150m(Ø0.8mm) DIMENSION 208(D) X 98 (W) X 65(H)mm / Room station. WEIGHT 700g DOOR-STATION DR-201D / DR-201H / DR-201A/DR-2R/DR-2L... - Page 9 MEMO...
- Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.06.105...
