User Manual
DOOR STATION DP-3HP
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax DP-3HP
Summary of Contents for Commax DP-3HP
-
Page 1: User Manual
User Manual DOOR STATION DP-3HP Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction ........... 3 2. Important Safeguards ........4 3. Part name and Function ........5 4. General Function .......... 6 5. Installation .............7 6. Wiring Diagram ..........8 7. Component Parts .......... 9 6. Specification ..........10... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: when the power is damaged. if liquid has been spiled or objects have hallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Part Name And Function

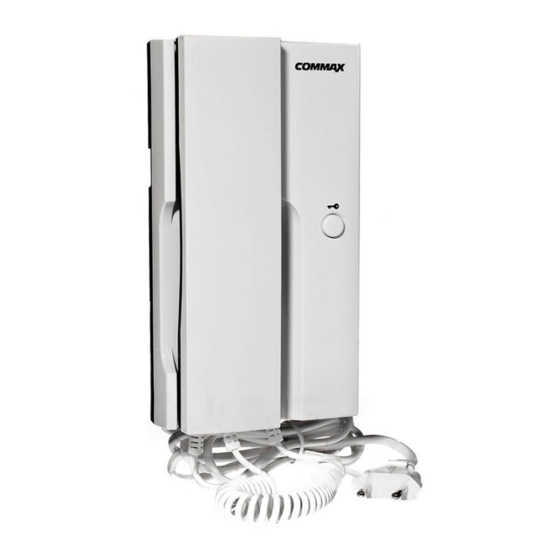

3. Part name and Function No. Part name Volume Controller Handset Door release button S-cord Power Cord... -
Page 6: General Function
While on the phone, press do or release button to open the door. d) Leave the handset to end the talk. ● CASE 2 : 2 Outdoor unit - Call a DP-3HP from common entrance (Outdoor unit 1) a) Ring a chime sound. b) Pick up a handset to talk. -
Page 7: Installation
5. Installation Caution - Please avoid direct ray of sun light to install this unit. - 1450~1500ᒠis right height from the floor. - Please avoid the place where being affected by gas, magnetic source and humid. -
Page 8: Wiring Diagram
6. Wiring Diagram Camera connect in polarity 1. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER (+12V) Warning 1. In case of installation around the area where pass the high-voltage line, please use metal tube with coaxial cable. 2. -
Page 9: Component Parts
7. Component Parts... -
Page 10: Specification
6. Specification MODEL DP-3HP Power Voltage AC220~, 50/60 Power Consumption MAX : 4 W (220V/60 ) Transmission To Outdoor unit : 3 wires (Polarity) Communication Method Handset Sound From Outdoor unit : Electronic Chime Time 20 sec Distance 28m( 0.5) / 50m( 0.65) / 70m( 0.8) - Page 11 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.07.105...
