User Manual
DOOR PHONE DP-LA101
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DP-LA101
Summary of Contents for Commax DP-LA101
- Page 1 User Manual DOOR PHONE DP-LA101 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
-
Page 2: Table Of Contents
Contents 1. Introduction .............2 2. Important Safeguards ........3 3. Overview............4 4. Operation ............5 5. Wiring..............6 6. Specifications..........7... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spilled or objects have fallen into the unit ⓒ... -
Page 5: Overview

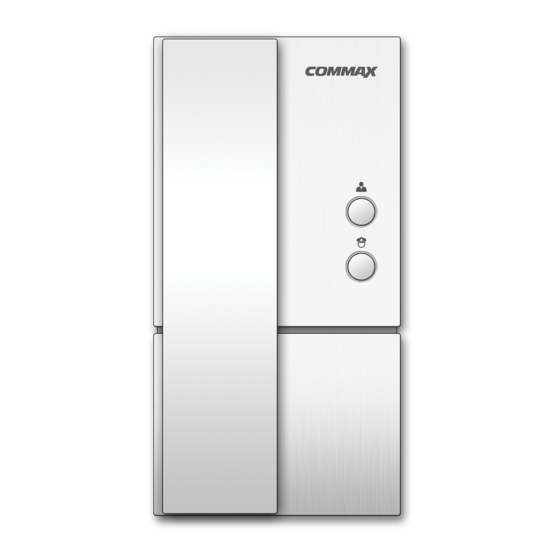

3. Overview ● Controls and functions ROOM STATION ROOM STATION ROOM STATION DP-LA101(M) DP-LA101(S) DOOR STATION ① VOLUME SWITCH ① CALL BUTTON TO ANOTH- ① SPEAKER ② HANDSET ER STATION (DP-LA101M) ② CALL BUTTON ③ CALL BUTTON TO ANOTH- ② DOOR RELEASE BUTTON ③... -
Page 6: Operation
4. Operation [Communication with the door station] 1. When a visitor press the calling button, both handset Master and Slave ring. (Volume can be adjusted by the switch on the side of handset: only DP-LA101M) 2. Pick up one handset between Master and Slave and start the communication. 3. -
Page 7: Wiring
5. Wiring... -
Page 8: Specifications
6. Specifications POWER SOURCE 220V~, 50Hz Call : High 400mW OUTPUT POWER Low 100mW Talk : 70mW 30m, 0.65ø(When talking to Master) DISTANCE 50m, 0.65ø(When talking to door station) DP-LA101M :208(D) X 98(W) X 60(H)mm DIMENSION DP-LA101S :208(D) X 98(W) X 65(H)mm DP-LA101M : 400g WEIGHT DP-LA101S : 700g... - Page 9 MEMO...
- Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.06.105...
