User Manual

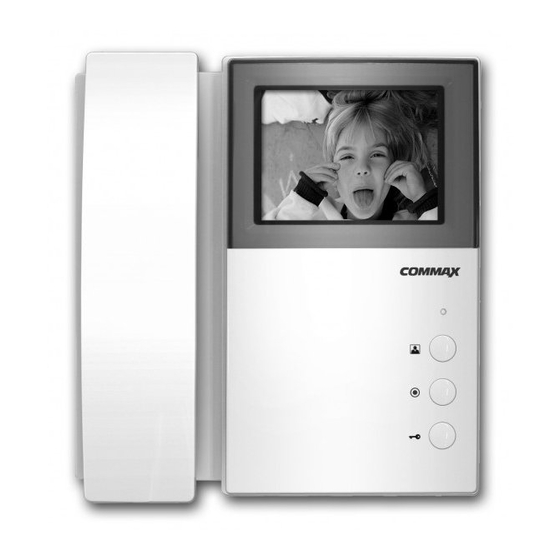

VIDEO DOOR PHONE DPV-4BE
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DPV-4BE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax DPV-4BE

Summary of Contents for Commax DPV-4BE

  • Page 1 All manuals and user guides at all-guides.com User Manual VIDEO DOOR PHONE DPV-4BE • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Table of Contents Warnings and caution 1. Parts Names & Functions 2. Operation 3. Installation Method 4. Wiring 5. Parts list 6. Specifications...

  • Page 3: Warnings And Caution

    All manuals and user guides at all-guides.com Warnings and caution Please follow the things described below in order to prevent any dan- ger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly.
  • Page 4 All manuals and user guides at all-guides.com Warnings and caution Warning If an abnormal sound, burning Please don’ t disassemble, Please don’ t insert any metal- Please use only the designated smell or smoke is coming out repair or rebuild this product lic or burnable materials into batteries for the products of of the product, please plug out...

  • Page 5: Parts Names & Functions

    All manuals and user guides at all-guides.com 1.Parts Names & Functions Name Description Handset Hook Switch Monitor Screen Connection Terminal Connect the Camera and the Interphone Power Status and the camera indication. Monitor Button Press the button when the householder wants to see the front door situation Interphone Button Call the Interphone after picking up a handset.

  • Page 6: Operation

    All manuals and user guides at all-guides.com 2. Operation 1. Calling from a Camera unit.( In case of install a camera) The visitor The visitor presses the presses the ※ A view of the front door can be seen anytime the call button on call button on the camera1...

  • Page 7: Installation Method

    All manuals and user guides at all-guides.com 2. Communication with the optional Interphone a chime rings simulta- neously from both the ▶ ▶ ▶ ▶ ▶ A visitor monitor and inter- calls from open the door phone a three-way conversation can take the entrance dialog begins place if the monitor or interphone is...

  • Page 8: Wiring

    - Do not install the camera where it is exposed to direct sunlight. - Keep cleaning up its lens to capture good views. 4. Wiring * Wires descriptions of camera. 1. Red: Voice 2. Blue: GND 3. Yellow: Power(+12V) 4. White: Video - DPV-4BE DPV-4BE...

  • Page 9: Parts List

    All manuals and user guides at all-guides.com * Wiring precautions 1. If high voltage cables are present in the vicinity, use a coaxial cable with metal outer casing. 2. If any internal wires is exposed through mis-wiring, it may cause a short and become a cause of malfunction or fire.

  • Page 10: Specifications

    All manuals and user guides at all-guides.com 6. Specifications Model DPV-4BE Rating Voltage AC 100 - 240V, 50/ 60Hz Consumption operation : 14W Wiring method To a Camera unit : 4 wires polarity, To an Interphone : 4 wires polarity Monitor 10.16Cm CRT...
  • Page 11 All manuals and user guides at all-guides.com 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.03.104...
