Summary of Contents for Jolly Mec UNIVERSAL JOLLYMedium

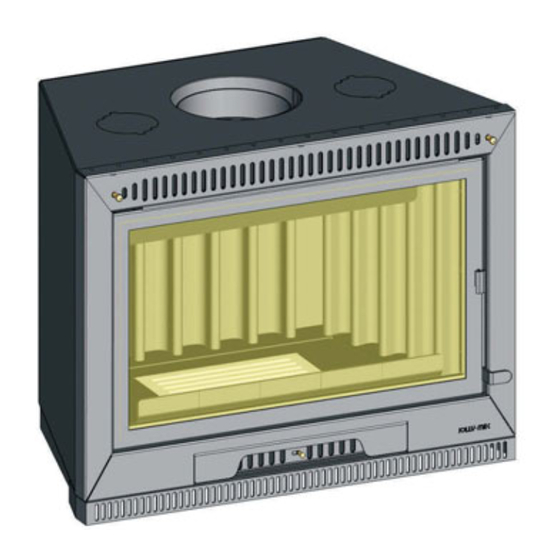

- Page 1 fireplace UNIVERSAL JOLLY ECO INSTALLATION, USE AND MAINTENANCE CARD To be carefully kept by the purchaser UNIVERSALJOLLY UNIVERSALJOLLY Forced air version with outside suction Do-it-yourself version with inside suction...
- Page 2 IMPORTANT • Familiarity and compliance with the instructions given in this guide will ensure quick installation and correct use of the appliance. • Read the sheet attentively before commencing installation, and must follow the directions it contains, otherwise the warranty could be invalidated and the performance and safety of the appliance jeopardized. •...
-
Page 3: Table Of Contents
CONTENTS USE AND MAINTENANCE INSTRUCTIONS FOR THE USER 1.1 UNIVERSALJOLLY Presentation ....................................................... 1.2 Fireplace identification ................................................. 1.3 Technical data ................................................................1.4 Example of fireplace installed and clad ..................................................1.5 Fireplace parts ................................................................1.6 Fireplace operation ..............................................................1.6.1 Starting with wood .................................................... -
Page 4: Universaljolly Presentation
It is the result of JOLLY MEC’s 30 years of experience; CREATED TO CONSUME LITTLE AND TO HEAT A LOT. designed and developed to meet the increasing demands of today’s market for high performance and for modern logistics... -
Page 5: Fireplace Identification
1.2 Fireplace identification The fireplace is equipped with a metallic label containing the following information: • CE marking. • Manufacturer’s name and address. • European homologation standards number. • Appliance type. • Fuel. • Nominal heat output. • CO (calculated at 13% of O •... -
Page 6: Technical Data
1.3 Technical data Approval EN 13229 Code Description Version Universaljolly Universaljolly Medium Maxi Burned power (by wood) Q 19,4 18,2 Thermal rated output (by wood) P 14,7 13,9 Consumption at max power B Kg/h Maximum output disposed of in the environment (by wood) P Power given to fluid (by wood) P Efficiency (by wood) η... -
Page 7: Example Of Fireplace Installed And Clad
1.4 Example of fireplace installed and clad Ducting of air to upper floors Optimising flue draught Ducting of hot air also to several The old flue serves for holding floors. the new piping which is sized The powerful 410 m to optimise the draught of the or 620 m /h (optional) fan allows... -
Page 8: Fireplace Parts
1.5 Fireplace parts Exchanger Support with grille for inside suction (only for do-it-yourself inside suction model) Ash pan Cast iron grate Fire bed with wood retainer Ash pan support Adjustable fume shutter automatic opening pin Fume outlet damper Precut plugs (knock out only for air ducting) Electronic controller Rock wool matting for boiler... -
Page 9: Fireplace Operation
1.6 Fireplace operation 1.6.1 Starting with wood • Clean the fire bed and empty the ash pan firelighters or similar products) • On the display, choose winter through the correct button. • Close the door. Press P and select the fan modality desired: Automatic or Manual. -
Page 10: Advice
1.6 Fireplace operation 1.6.3 Advice THE fan must be activated with the fireplace lit, as the ”UNIVERSALJOLLY” is a very powerful heat exchanger fireplace. WARNING! In case of a power failure, if the fireplace is lit and loaded with lots of wood, some electrical components could become damaged. -
Page 11: Routine Maintenance
1.7 Routine maintenance 1.7.1 Cleaning the fireplace • Cleaning the ash pan NOTE! Empty periodically when necessary. The flue must be installed so that it can be easily brushed or removed, and without any elbow bends or sections sloping in •... -
Page 12: Optionals
1.8 Optionals Exchanger guide support (only for version with outside air suction) Outlet with adjustable closure for hot air 180x120 Grille for outside air inlet 230x230 (only for version with outside air suction) Automatic closure box for outside air inlet (only for version with outside air suction) Connection for connecting automatic closure box to the fan... -
Page 13: Installation And Maintenance Card Use And Keeping
1.9 Installation and maintenance card use and keeping • Card recipients The installation and maintenance card is intended for users responsible for fireplace operation; particular attention must be paid the parts concerning safety. • Purpose of the card The card contains information on correct use of the fireplace, according to the purposes for which it was designed and built. It also provides information on weights, commissioning, repair and maintenance of the fireplace, in conformity with the limits set by the manufacturer, inside the card. -
Page 14: Ecological Regulations
1.10 Ecological regulations 1.10.1 DISCARDED MATERIALS AND THEIR DISPOSAL Spare parts replaced during the machine’s product life are to be considered waste and must be taken to special col- lection centres or entrusted to authorised disposal centres. Ashes must be placed in a metal container with a sealed lid. Until the coals definitively go out, the closed container must be placed on a non-combustible base and kept away from combustible materials. -
Page 15: Dimensions And Weights
2.1 Dimensions and weights 2.1.1 Universaljolly with outside suction The fireplace is supplied on pallets, packed with a cellophane hood and with the following parts: • Complete boiler body • Assembly card • 410 m /h fan (620 m /h optional by request) •... -
Page 16: Flue
2.2 Flue The flue is an all-important element for fireplace’s proper externally, it must be insulated to prevent the cooling of fumes functioning and must comply with the standards: and the formation of condensate. The same applies to the EN1856-1 -Fireplaces: requirements for metal fireplaces- section from the roof to the chimney cap. -
Page 17: Assembly Steps
2.3 Assembly steps • For the assembly steps, follow the numbers 1. Make the air inlet communicating with the outside of dimensions 7. If air ducting (with relevant optionals) to other rooms is provided 20x20 cm. or with a Ø 200 mm aluminium pipe (F .1). - Page 18 2.3 Assembly steps RECOMMENDED Connecting the flue with universal connection (optional) Apply the universal connection at a Flue Possible top access height within hand’s reach for filling by making a hole (with cement and plaster) with funnel Mixture with in the flue for filling plaster and cement shape (F .
- Page 19 2.3 Assembly steps 11. Remove the galvanised protection plate on the fan support 17. Insulate the top part of the exchanger. (bottom of fireplace exchanger). 18. Lower the stainless steel pipe all the way into the special 12. If ducting is provided for, using a hammer knock out the support on the exchanger, operating from the fume exhaust precut sheets on the top hot air outlets (F .
-
Page 20: Electrical Connections
2.4 Electrical connections Electrical connections must be carried out by skilled personnel according to the regulations in force 2014/30/UE and 2014/35/UE) IMPORTANT! The electrical connections between the various components must be made in conformity with the safety regulations. • Replacing the thermostat 1. -
Page 21: Example Of Ducting Air To Other Rooms For Even Distribution Of Heat
2.5 Example of air ducting to other rooms for even distribution of heat 2.5.1 Universaljolly with outside suction Only for version with outside suction Example of installation with 50% outside air suction with automatic closure box and 50% room air. Outside air inlet connection with automatic box and fan. -
Page 22: Universaljolly Do-It-Yourself With Inside Suction
2.5 Example of ducting air to other rooms for even distribution of heat 2.5.2 Universaljolly do-it-yourself with inside suction IMPORTANT! For ducting to several rooms fit the T connection or Y connection (optional) and connect the two top outlets as well as the ducting. - Page 23 NOTES...
- Page 24 Via S.Giuseppe 2 - 24060 Telgate (Bg) Italy Tel. +39 035.83.59.211 Fax +39 035.83.59.203 www.jolly-mec.it - info@jolly-mec.it...
