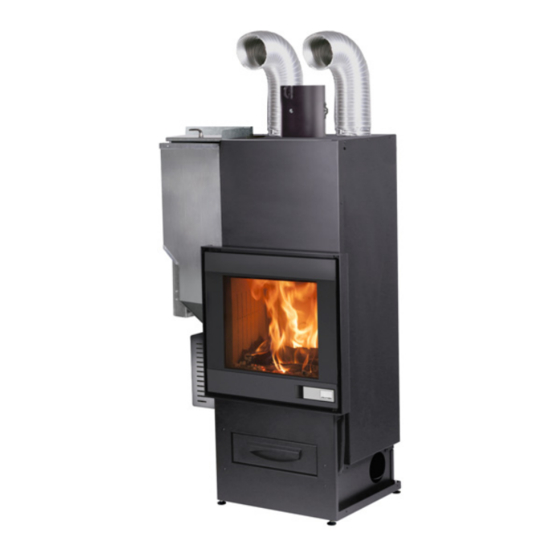

Foghet evo air wood and pellet operated air system product
Table of Contents

Advertisement

Quick Links

FOGHET EVO
AIR
INSTALLATION, USE AND
MAINTENANCE MANUAL
To be kept by the purchaser
FOGHET EVO ARIA
RFE ARIA
Wood and pellet operated air system pro-
duct

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foghet EVO Aria P 6,5 kW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jolly Mec Foghet EVO Aria P 6,5 kW

  • Page 1 FOGHET EVO INSTALLATION, USE AND MAINTENANCE MANUAL To be kept by the purchaser FOGHET EVO ARIA RFE ARIA Wood and pellet operated air system pro- duct...
  • Page 2 Dear Customer, thank you for having chosen to heat and save with a Jolly Mec product. Please carefully read and keep this sheet before using the equipment. This sheet provides necessary information and suggestions on how to correctly install, use, clean and maintain the product.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS CHAP.01 PREMISES........................... 4 01.1 WARNINGS ..............................4 01.2 SYMBOLOGY ............................... 5 01.3 APPLIED STANDARDS ..........................5 01.4 USE AND STORING OF THE INSTALLATION AND MAINTENANCE MANUAL ........6 01.5 MANUFACTURER LIABILITY AND WARRANTY CONDITIONS ..............6 CHAP.02 ACCIDENT PREVENTION / SAFETY REGULATIONS .............. 7 02.1 GENERAL CONSIDERATIONS ........................
  • Page 4: Chap.01 Premises

    CHAP.01 PREMISES 01.1 WARNINGS • Familiarity and compliance with the instructions given in this manual will ensure quick installation and correct use of the appliance. • Read the manual attentively before commencing installation, and be certain to follow the directions it contains, otherwise the war- ranty could be invalidated and the performance and safety of the appliance jeopardized. • The installation manual is an integral part of the product and must be given to the user. • It must be kept in a safe place and consulted carefully, as all of the warnings provide important information on safety during instal- lation, use and maintenance. • Incorrect installation of the appliance could cause damage and injury to people or animals, for which the manufacture cannot not be held liable. • Installation shall be performed by qualified operators in accordance with the regulations in force in the Country of installation. • The manufacturer declines any contractual or non-contractual liability for damages caused by errors in installation or use of the appliance or failure to follow the instructions contained in this manual. • All rights on the reproduction of this technical manual are owned by Jolly Mec Caminetti S.p.A. The descriptions and illustrations provided in the following publication are not binding. • reserves the right to make any modifications that may be deemed appropriate. • Jolly Mec Caminetti S.p.A This manual cannot be given to third parties for perusal without the written permission of • Jolly Mec Caminetti S.p.A • The technical directions for installation contained in this manual should be considered as basic requirements. Regulations in some countries may be more restrictive; in this instance, comply fully with the regulations prevailing in the country of installation (all laws and local bylaws must be observed when installing and using the appliance, including those referring to national and European standards).
  • Page 5: Symbology

    This point is particularly important. An important point regarding behaviour for preventing injury and damage to DANGER materials is expressed. 01.3 APPLIED STANDARDS All JOLLY MEC products are constructed according to the following directives: European construction products regulation. • EU 305/2011 Machines. •...
  • Page 6: Use And Storing Of The Installation And Maintenance Manual

    01.5 MANUFACTURER LIABILITY AND WARRANTY CONDITIONS Upon the delivery of this manual, Jolly Mec S.p.A. cannot be held liable, whether civil or criminal, for accidents due to partial or total non-compliance with the specifications herein contained. The manufacturer is especially held harmless from any liability in the following cases: •...
  • Page 7: Chap.02 Accident Prevention / Safety Regulations

    CHAP.02 ACCIDENT PREVENTION / SAFETY REGULATIONS 02.1 GENERAL CONSIDERATIONS • The manual refers to essential aspects of the directives, regulations and dispositions on using the machine, summarising its most significant points. • General legal regulations and mandatory rules regarding injury prevention and environmental protection must be observed.
  • Page 8: Safety Regulations For Extraordinary Maintenance And Installation

    • In alarm status for failed start up, do not try to restart the stove until the firebox has been thoroughly cleaned • The appliance must always be started up with the firebox empty, without pellets and without unburned fuel from previous use.
  • Page 9: Equipment For Operators And Maintenance Personnel

    RESIDUAL RISKS Though JOLLY MEC CAMINETTI S.p.A. does everything within its power to produce its systems with the greatest competence regarding safety and consulting all the directives, laws, and regulations available, there are still, if minor, some residual risks during the phases of: •...
  • Page 10: Chap.03 Handling And Transport

    CHAP.03 HANDLING AND TRANSPORT 03.1 RECEIVING GOODS The machine is delivered on a pallet, packed in a wooden cage with a cellophane hood. when receiving merchandise, check that: • all packaging is intact • all of the merchandise indicated on the delivery bill has actually been delivered •...
  • Page 11: Chap.04 Ecological Regulations

    CHAP.04 ECOLOGICAL REGULATIONS 04.1 WASTE MATERIALS AND THEIR DISPOSAL Spare parts replaced during the machine’s product life are to be considered waste and must be taken to special collection centres or entrusted to authorised disposal centres. Ashes must be placed in a metal container with a sealed lid. The closed container must be placed on a non-combustible base and kept away from combustible materials until all the embers have been extinguished.
  • Page 12: Chap.05 Description

    When running on wood, it can also operate with intermittent combustion; it can be used as a fireplace or normal stove, but offers a series of advantages of controlled combustion based on the temperature. Wood-burning Foghet Evo, with the specific pellet burner JOLLY MEC fitted, becomes a ”continuous fire” heating machine, exactly like a boiler. The pellet hopper has a capacity of approximately 41 kg, however, to obtain a longer burn time it can be coupled to a second and larger hopper, even located in another room.
  • Page 13: Product Identification

    05.2 PRODUCT IDENTIFICATION It is COMPULSORY to indicate the product MODEL, the LOT number and SERIAL NUMBER in all communications with the Manufacturer. Identification numbers are printed on the adhesive plate located on the back of the device as illustrated on the right. Stove performance values measured during inspection tests according to the indicated reference and EC markings are also included on the plate.
  • Page 14: Chap.06 Technical Data

    CHAP.06 TECHNICAL DATA 06.1 HOMOLOGATION Technical specifications resulting from laboratory tests conducted according to EN 14785, EN 13229 and EN13240 test methods at the CERTIFICATION institute. Foghet EVO Foghet EVO Foghet EVO Foghet EVO Foghet EVO Foghet EVO Aria P 6,5 kW Aria L 7,5 kW Aria P 9,5 kW Aria L 9 kW...
  • Page 15: Recommended Fuels

    Similarly, unburned residue left in the combustion chamber is inversely proportionate to pellet quality: the lower the pellet purity, the faster dirt accumulates in the machine. Jolly Mec Caminetti S.p.A recommends the use of the same type of pellets used during the optional Commissioning service, i.e.
  • Page 16 • WOOD QUALITY WARNING WOOD QUALITY IS VERY IMPORTANT; PLEASE READ THIS SECTION CAREFULLY The characteristics of fuel wood for stoves and fireplaces are defined by quality classes A1 and A2 set forth by UNI EN ISO 17225-5 standard. WOOD COMBUSTION Wood clean burning is a process that reflects the natural decomposition itself;...
  • Page 17: Components

    Fan (410 m /h) (6) • Pellet hopper components The JOLLY MEC burner and pellet hopper can be removed for transport. Disconnect the power supply then detach the connectors. Loosen the hopper/burner connection clamp. Undo the two M8 screws inside the pellet hopper and remove the hopper.
  • Page 18: Dimensions

    • Burner components The burner consists of the following components: Burn pot Burn pot locking screw Electrical element Air pressure switch connecting pipe Fan support Sprocket wheels (accessible by removing the protection casing) Main auger gearmotor (accessible by removing the protection casing) Secondary auger gearmotor (accessible by removing the protection casing) Protection casing...
  • Page 19: Chap.07 Positioning And Connections For The Installer

    CHAP.07 POSITIONING AND CONNECTIONS FOR THE INSTALLER 07.1 FLUE OR FUME EXHAUST SYSTEM The flue or fume exhaust system is a fundamental element for the proper functioning of the stove and must comply with the following general standards: UNI EN 1856-1 Fireplaces - Requirements for metal fireplaces - Products for fireplace systems UNI EN 1856-2 Fireplaces - Requirements for metal fireplaces - Internal ducts and metal exhaust pipes...
  • Page 20: Installation Room Ventilation

    For appliance that must reach exhaust outlets that are not coaxial with regard to the issue of the fumes from the machine, changes in direction must be made using an open elbow of 45° (F . 1). The use of counter slope elements is forbidden.The flue union must have a constant section and allow soot to be collected and swept away.
  • Page 21: Prearrangement For Connections And Air Inlets Of The Stove Positioned In Acorner

    07.3 PREARRANGEMENT FOR CONNECTIONS AND AIR INLETS OF THE STOVE POSITIONED IN A CORNER WARNING Electrical connections must be carried out by skilled personnel according to the regulations in force (2014/30/UE and 2014/35/UE). Combustion air intake ducting Centre line Outside air inlet 200x200 mm Ambient temperature or ambient thermostat probe Power supply 230 V 50 Hz Omnipolar switch...
  • Page 22: Prearrangement For Electrical Connections And Air Inlets With Wall Installation

    07.4 PREARRANGEMENT FOR ELECTRICAL CONNECTIONS AND AIR INLETS WITH WALL INSTALLA- TION WARNING Electrical connections must be carried out by skilled personnel according to the regulations in force (2014/30/UE and 2014/35/UE). Ambient temperature or ambient thermostat probe Power supply 230 V 50 Hz Omnipolar switch Centre line Outside air inlet 200x200 mm...
  • Page 23 Installation distances from flammable materials • Straight Distance from flammable side walls: A=200 mm • Straight Distance from flammable rear walls: B=100 mm • Min. straight Front Distance from flammable materials: R= 1000 mm X= Flammable Wall Y= Flammable floor • Adjusting the feet After preparing the flue and all the electrical and plumbing connections and air intakes, as described in the previous pages, position the fireplace and level it, adjusting the feet with a 19 mm wrench •...
  • Page 24 • Humidifier filler inlet assembly Step 1: Connect the humidifier to the left or right sleeve so that the flexible pipe is perfectly horizontal (see F . 3) (We recommend the left side since it is on the pellet loading door side). Step 2: Close the sleeve on the opposite side with the cap supplied (see F .
  • Page 25: Example Of Installed And Clad Fireplace

    (refer to the ATTENTION box for details on dimensions) 7. Combustion air intake ducting (see par 07.3 or 07.4) 8. Burner JOLLY MEC 9. Air recirculating grid 400x100 mm (50 mm from the floor) (MANDATORY) 10. Ash pan 11. Door handle 12.
  • Page 26: Example Of Hot Air Ducting (Only For Fireplace Version)

    07.6 EXAMPLE OF HOT AIR DUCTING (only for Fireplace version) To duct the air into other rooms, assembly the “T” or “Y” connection (optional), in addiction to connect the grilles on the lining. The air pipes must be taken to the rooms to be heated. The return of air to the fireplace room must be guaranteed from every room in which the hot air arrives, through openings under the doors or outlets, via the grille at the back of the fireplace.
  • Page 27: Control Unit Electrical Wiring Diagram

    07.7 CONTROL UNIT ELECTRICAL WIRING DIAGRAM WARNING Electrical connections must be carried out by skilled personnel according to the regulations in force (2014/30/UE and 2014/35/UE). PELLET BOARD Electrical power supplied from the terminal of the wood board 230V ac RC Filter CN8/F N AC5 WOOD elec.
  • Page 28: Chap.08 Use And Maintenance For The User

    CHAP.08 USE AND MAINTENANCE FOR THE USER 08.1 CONTROL UNIT The electronic control unit controls all appliance functions and is controlled via a touch screen display. The display allows you to view the main system parameters, set the desired operating parameters, set the start-up and switch off times and view any malfunction alarms.
  • Page 29: Wood Functioning

    If the start cycle fails, perform the operations described in CHAP.09 - FAULT DIAGNOSIS AND TROUBLESHOOTING Every 30 minutes the fireplace performs a 1–minute automatic cleaning cycle with minimum pellet charging and maximum combustion air level The burner is managed by the room or air exchange temperature. On reaching the set temperature the fireplace switches to economy mode and restarts when the temperature decreases below the set limit.
  • Page 30 Clean the fire bed and empty the ash pan. It is recommended to always leave a small amount of ash on the fire bed. Move the cast iron grate (A) over the pellet burner Open the ash drawer (B) as far as the block . Check that the controller is set to wood mode otherwise the fireplace will light in pellet mode;...
  • Page 31 • AUTOMATIC START IN WOOD MODE WITH PELLET FEED WARNING PERFORM THE AUTOMATIC START IN WOOD MODE WITH PELLET FEED ONLY WHEN THE FIREPLACE IS COLD. Clean the fire base. Check that the pellet firebox is thoroughly clean. Move the cast iron grate (A) over the pellet burner. The central hole (B) of the cast iron grate must not be blocked by previously burnt ashes.
  • Page 32: Optimising Combustion And Damper Use

    08.5 OPTIMISING COMBUSTION AND DAMPER USE This fireplace/boiler offers excellent performance. When using pellets, for optimum operation without overloading the burner respect the following rules: Step 1: manually load a small amount of pellets via the control unit display command (see FIG. 1) for first start-up.
  • Page 33: Tips And Warnings For The User

    08.6 TIPS AND WARNINGS FOR THE USER WARNING If the fireplace operating mode is set to FAN mode, the fan will only automatically start when the air temperature reaches about 60°C. If the fireplace operating mode is set to CONVECTION mode, the fan will only automatically start when the maximum air temperature threshold of 230°C is exceeded.
  • Page 34 Regular systematic maintenance is essential to maintain the appliance in perfect working order and optimum efficiency. MORE CLEANING = MORE EFFICIENCY This is a high performance insert obtained by closed doors. In case of opening and no perfect draftl conditions in the chimney (12Pa), there could be smoke puff exit.
  • Page 35: Ordinary Maintenance (By The Costumer)

    08.7 ORDINARY MAINTENANCE (by the costumer) WARNING Before starting any type of cleaning, switch off the main switch and make sure that the appliance is cold. Never restart the stove before completing these operations and correctly reassembling all components. Cleaning tools supplied Burn pot cleaning tool Flue brush Small brush...
  • Page 36 Cleaning of the fume deflector Every 20 days, or even more frequently according to the type of fuel used, the flue chimney draught and the weather conditions, it is compulsory to remove the upper diffuser and clean it to prevent the fume outlet from clogging, causing the fumes to flow back into the room.
  • Page 37 Cleaning the glass When using the fireplace in pellet mode, clean the glass every day with a damp sponge or a paper towel. If the glass becomes dirty with black smoke, clean the burn pot or increase the combustion air. When operating in wood mode, use specific products.
  • Page 38: Scheduled Preventive Maintenance (To Be Done By A Specialised Technical Service Center)

    08.8 SCHEDULED PREVENTIVE MAINTENANCE (To be done by a specialised Technical Service Center) WARNING To carry out these operations, the appliance must be disconnected from the mains; wait until the appliance is cold and comply rigorously with the safety regulations in force. We wish to remind you that the Extraordinary Maintenance to be carried out on this type of product must be done obligatorily every year by qualified maintenance personnel, in order to maintain its functionality, efficiency and comfort.
  • Page 39: Chap.09 Fault Diagnosis And Troubleshooting

    CHAP.09 FAULT DIAGNOSIS AND TROUBLESHOOTING 09.1 PROBLEMS WARNING In accordance with the laws in force on safety for electrical appliances, a specialised Technical Service Center or qualified personnel must obligatorily be contacted for all installation, maintenance or interventions that require access to electrical parts.
  • Page 40 PROBLEM CAUSE AND/OR CURE • The outside air inlets and/or the flue are partially or completely obstructed. Clean or remove the obstructions. Air inlet and/or canalisations not correctly done. • Insufficient flue draught: there are horizontal sections or 90° bends, or the chimney cap is located under the ridge of the roof (installation errors).
  • Page 41 NOTES...
  • Page 44 Via S.Giuseppe 2 - 24060 Telgate (Bg) Italy Tel. +39 035.83.59.211 Fax +39 035.83.59.203 www.jolly-mec.it - info@jolly-mec.it...
