NJ205 Description

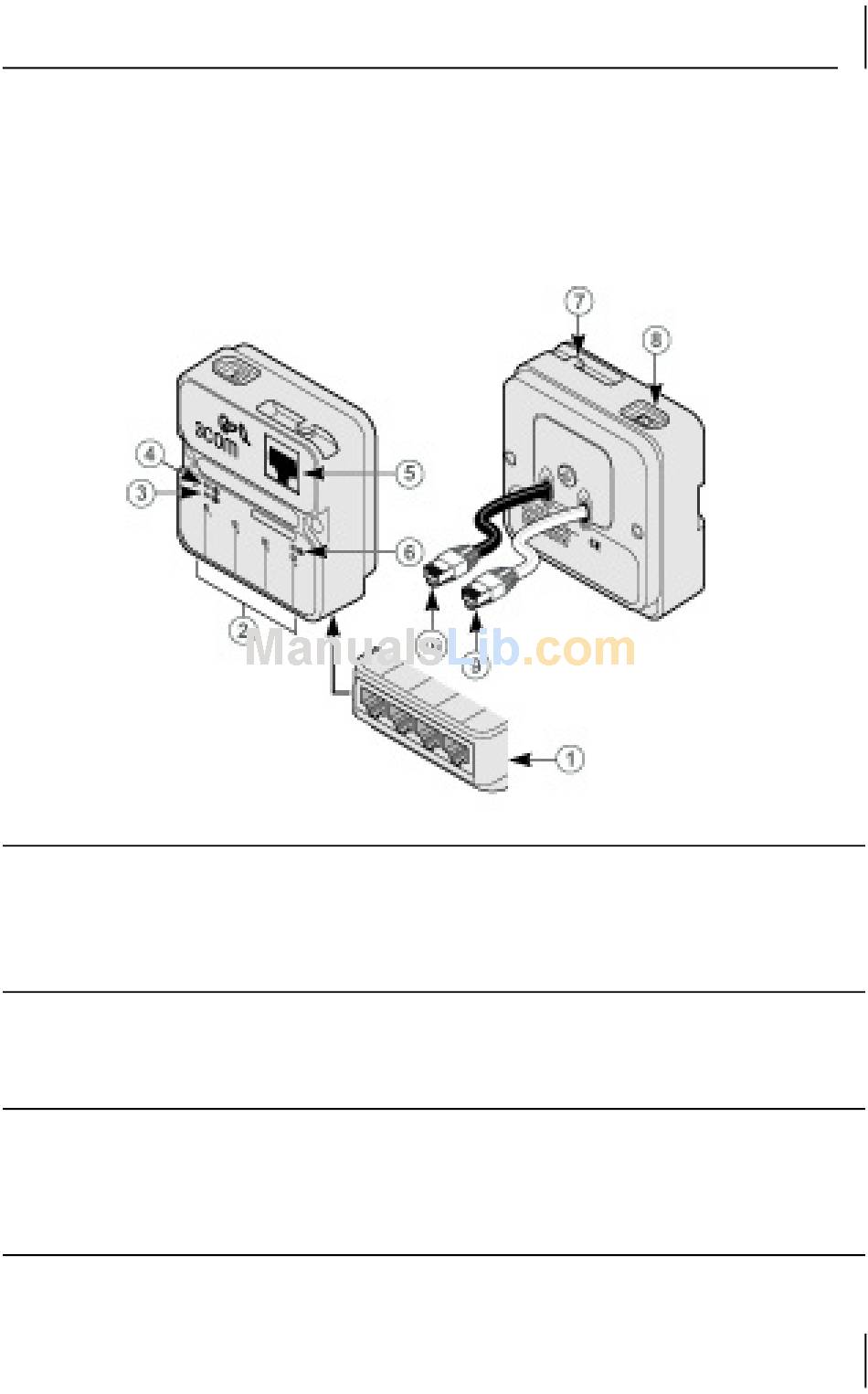

The following diagram shows the front, rear and bottom views
of the IntelliJack:
1 RJ-45 switched
PAN (personal
area network)
ports
2 Port LEDs and
corresponding
port numbers
3 RJ-45 LED
Four 10/100 Mbps auto-negotiation ports,
which the NJ205 configures for 10 Mbps or
100 Mbps connections automatically (green
LEDs).
Indicate network status of each of the four
RJ-45 PAN ports.
Indicates the status of the LAN connection
(white cable, green LED). For more
information, see "Checking the LEDs" on
page 11.
