3Com 3CNJ205 User Manual page 49

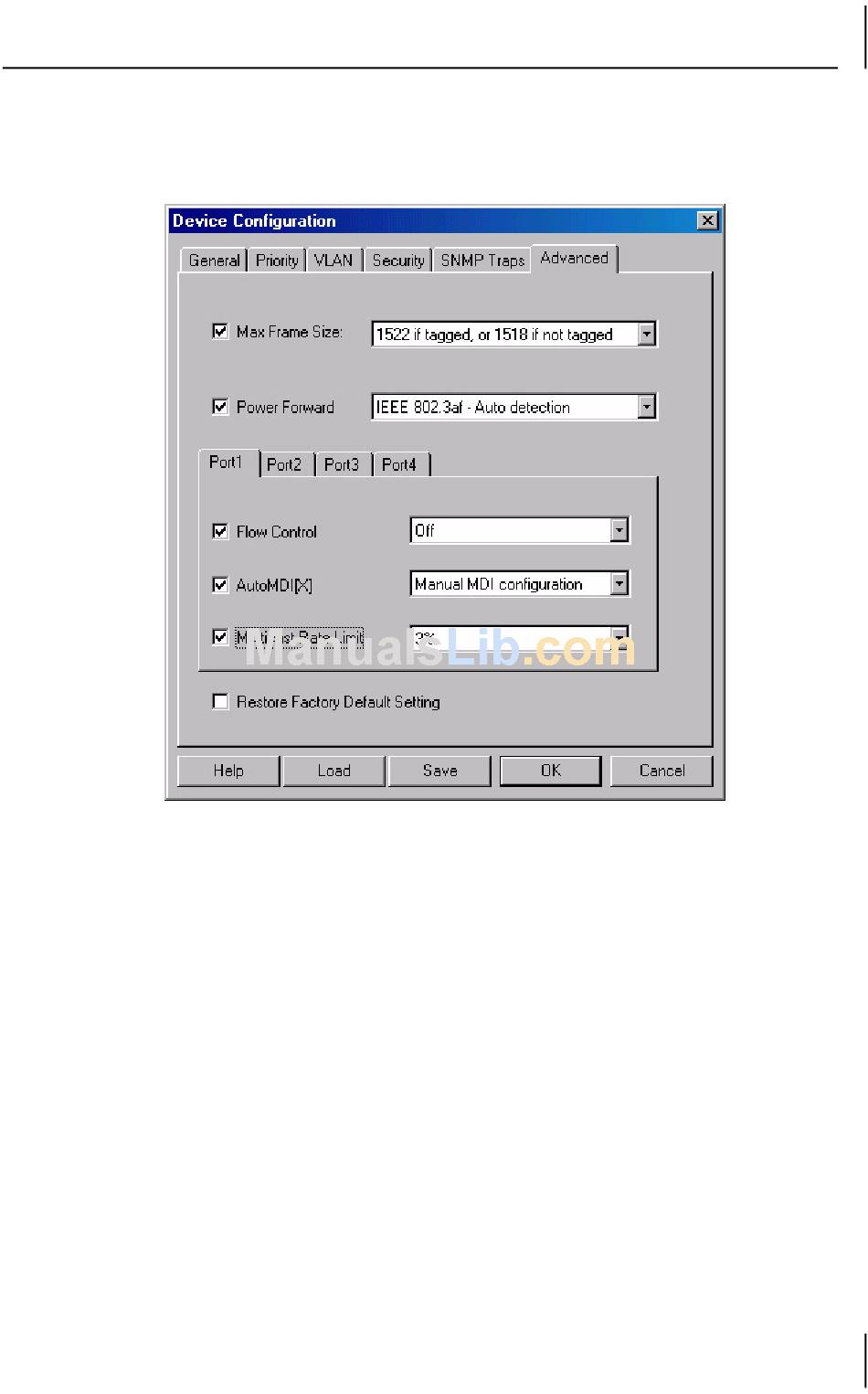

17 Select the Advanced tab for this window:
18 You can change the Max Frame Size and Power Forward
settings by selecting an option from the drop-down list.
19 From this window, you can see another set of tabs, one for
each port on the IntelliJack. Click on the port whose
settings you want to change, check the box next to the
setting to be changed, and select a value from the drop-
down list. You can change the Flow Control, the
AutoMDI(X) crossover capabilities, and the Multicast Rate
Limit.
Changing Device Configuration
45
