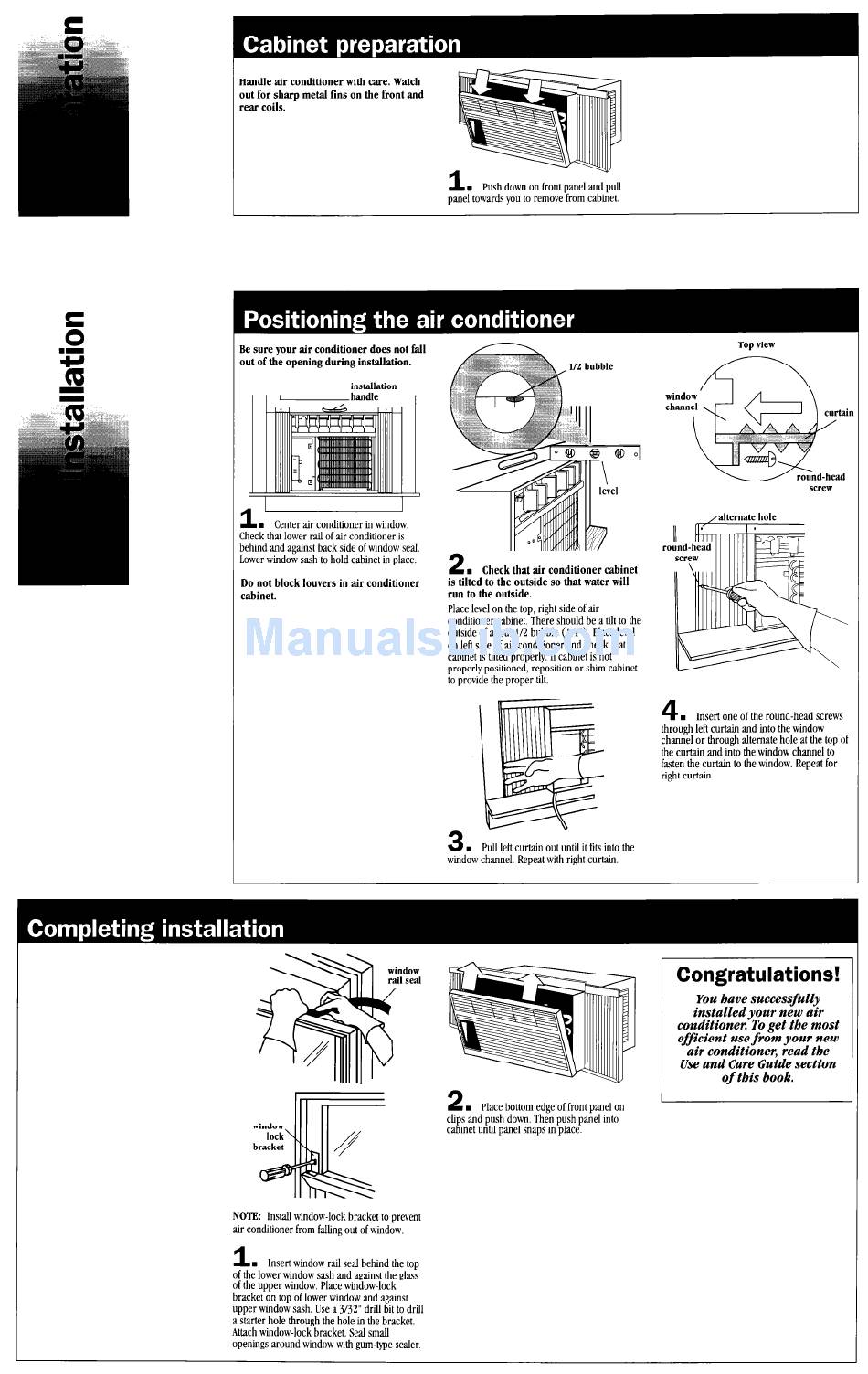

Be sure your air conditioner does not fall
out of the opening during installation.
installation
I I -handle
1'
n
Center air conditioner in window.
Check that lower rail of air conditioner is
behind and against back side of window seal.
Lower window sash to hold cabinet in place.
Do not block louvers in air conditioner
cabinet.
2
n
Check that air conditioner cabinet
is tilted to the outside so that water will
run to the outside.
Place level on the top, right side of air
conditioner cabinet. There should be a tilt to the
outside of about l/2 bubble (1.4"). Place level
on left side of air conditioner and check that
cabinet is tilted properly. If cabinet is not
properly positioned, reposition or shim cabinet
to provide the proper tilt.
A
3.
Pull left curtain out until it fits into the
window channel. Repeat with right curtain.
Top view
screw
4
H Insert one of the round-head screws
through left curtain and into the window
channel or through alternate hole at the top of
the curtain and into the window channel to
fasten the curtain to the window. Repeat for
right curtain.
ndow
il seal
2
w Place bottom edge of front panel on
clips and push down. Then push panel into
cabinet until panel snaps in place.
NOTE: Install window-lock bracket to prevent
air conditioner from falling out of window.
1
n
Insert window rail seal behind the top
of the lower window sash and against the glass
of the upper window. Place window-lock
bracket on top of lower window and against
upper window sash. Use a 3/32" drill bit to drill
a starter hole through the hole in the bracket,
Attach window-lock bracket. Seal small
openings around window with gum-type sealer.
Congratulations!
You have successfully
installed your new air
conditioner. To get the most
efficient use from your new
air conditioner, read the
Use and Care Guide section
of this book.
