Carlson 0930PW Owner's Manual

Walk-through gate with small pet door
Hide thumbs Also See for 0930PW:
Table of Contents

Advertisement

Quick Links

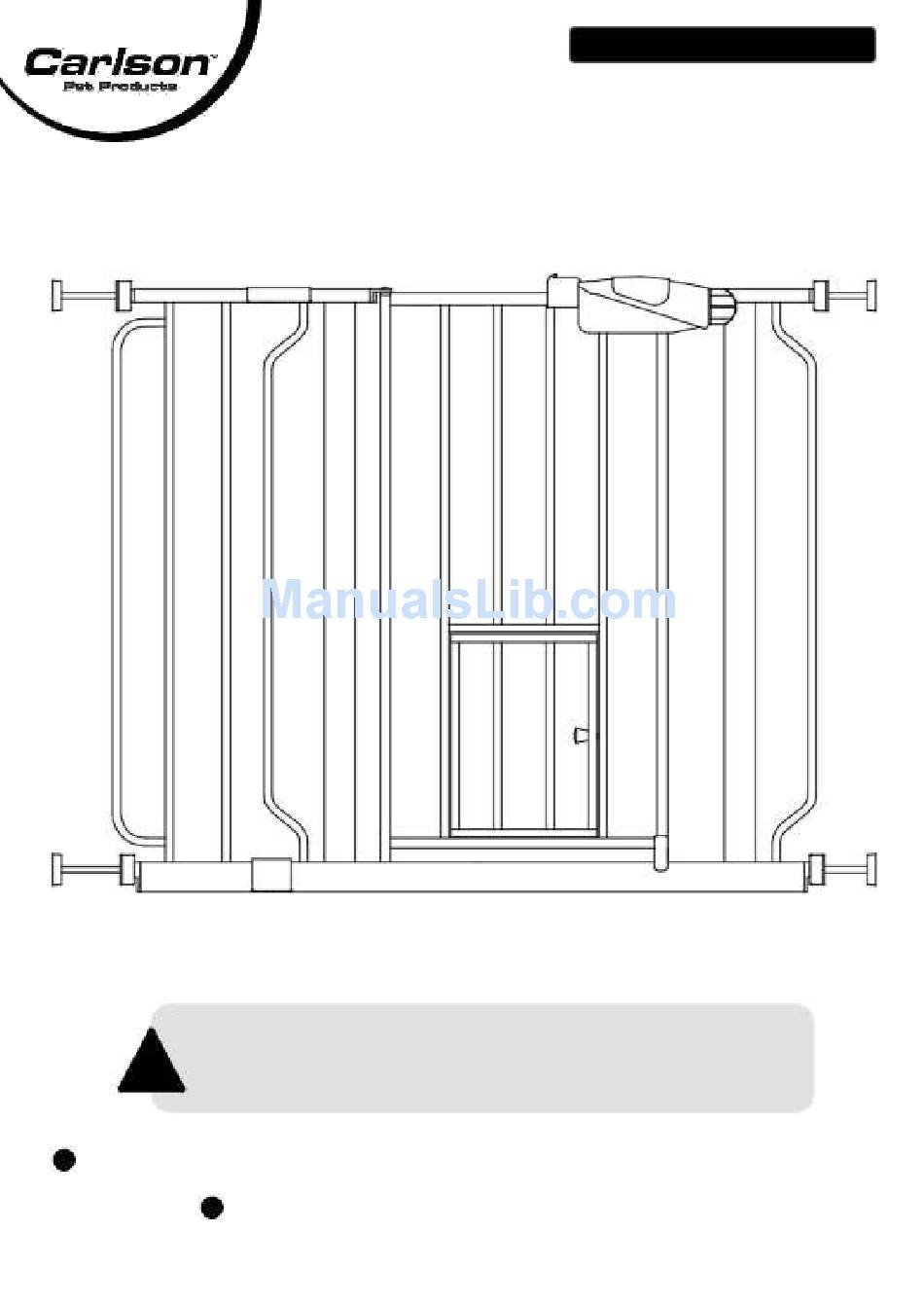

EXTRA WIDE WALK-THROUGH GATE
• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE.
!
• KEEP INSTRUCTIONS FOR FUTURE USE.
Carlson Pet Products, Inc.
3200 Corporate Center Drive, Suite 105 | Burnsville,
MN 55306, USA
Made in China
952.435.1084
OWNER'S MANUAL MODEL:
WITH SMALL PET DOOR
0930, 0932

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0930PW and is the answer not in the manual?

Questions and answers

Related Manuals for Carlson 0930PW

Summary of Contents for Carlson 0930PW

  • Page 1 EXTRA WIDE WALK-THROUGH GATE WITH SMALL PET DOOR • READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE. • KEEP INSTRUCTIONS FOR FUTURE USE. Carlson Pet Products, Inc. 3200 Corporate Center Drive, Suite 105 | Burnsville, MN 55306, USA 952.435.1084...
  • Page 3 Before Using Product Read and follow all instructions carefully to ensure that your gate and extensions are properly installed. Improper installation could result in the gate becoming unstable or dislodged from the doorway. Please keep these instructions for your reference. WARNING •...
  • Page 4 Before Assembly PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS: Gate Frame (1) Wall Cups (4) Screws (4) (requires a Phillips/cross-head screwdriver) Threaded Spindle Rods (4) ENGLISH...
  • Page 5 Extensions List NOTE 4" 6" 8" 12" MODEL MAX SIZE 0930 29 – 44 inches 0932 29 – 52 inches NOTE: When installing any gate at its maximum width, use wall cups to ensure stability and safety. ENGLISH...
  • Page 6 Assembling and Installing Your Gate NOTE: You will notice a slight gap between the gate door latch and the frame. This is not a defect. Your gate is a pressure mounted gate and this gap will disappear once you tighten your gate in its opening. STEP 1 Locate the (4) threaded spindle rods.
  • Page 7 STEP 3 Position the gate so that it is level and centered within your doorway or opening. Rotate the adjustment wheels on the threaded spindle rods in the opposite direction as in STEP 1, expanding the gap between the rubber foot and the adjustment wheel. Expand each of the (4) threaded spindle rods until they make contact with the doorway or opening.
  • Page 8 STEP 4 When you are satisfied with the general placement of your gate, fully tighten the threaded spindle rods attached to the lower corners of the gate by further rotating the adjustment wheels. Continue by tightening the upper threaded spindle rods. As you tighten the upper threaded spindle rods, you will notice the gap between the door frame and the easy open latch begin to narrow.
  • Page 9 Positioning and Attaching the Wall Cups Your gate is a pressure mounted gate. Therefore, it is not necessary to use the screw attached wall cups in your door opening if you choose not to. However, if you are using the gate at the top of the stairs you must use the wall cups. Using the wall cups will affix your gate more firmly in the doorway or opening.
  • Page 10 STEP 3 With the gate fully removed, you can now use the circles you marked during STEP 1 as guides for screwing in your (4) wall cups. Center each of the wall cups within the guide circles and use the provided self-tapping screws to fasten them in place via the hole through the center of each wall cup.
  • Page 11 Operating the Door Latch STEP 1 Pull the spring lock away from the easy open latch while simultaneously lifting the lock lever upwards. This will release the locking latch from the gate frame and allow the door to push or pull open. SPRING LOCK LOCK LEVER STEP 2...
  • Page 12 Adding a Gate Extension STEP 1 Choose the side of the gate to be extended and remove the top and bottom threaded spindle rods. STEP 2 Assemble the gate and extension as illustrated. Reposition the gate and fit in accordance with the gate fitting instructions. NOTE: It is preferable to install any extensions on the hinge side of the gate.

  • Page 13: Care And Maintenance

    Carlson Pet Products, Inc. will replace or repair it at Carlson’s option. PROOF OF PURCHASE REQUIRED.

  • Page 14: Replacement Parts

    Replacement Parts Easy Open Latch Wall Cups Black = #11037 Black = #11015 Gray = #14037 Gray = #14015 White = #13037 Pet Door Pull Lock Top Plug Insert Black = #11038 Black = #11020 Platinum = #14038 Gray = #14020 White = #13038 Bottom Plug Insert Threaded Spindle Rods...
  • Page 15 ENGLISH...
  • Page 17 Carlson Pet Products, Inc. 3200 Corporate Center Drive, Suite 105 Burnsville, MN 55306, USA 952.435.1084 20160622EF...

This manual is also suitable for:

0932pw
