Fronius Datamanager 2.0 Operating Instructions Manual page 16

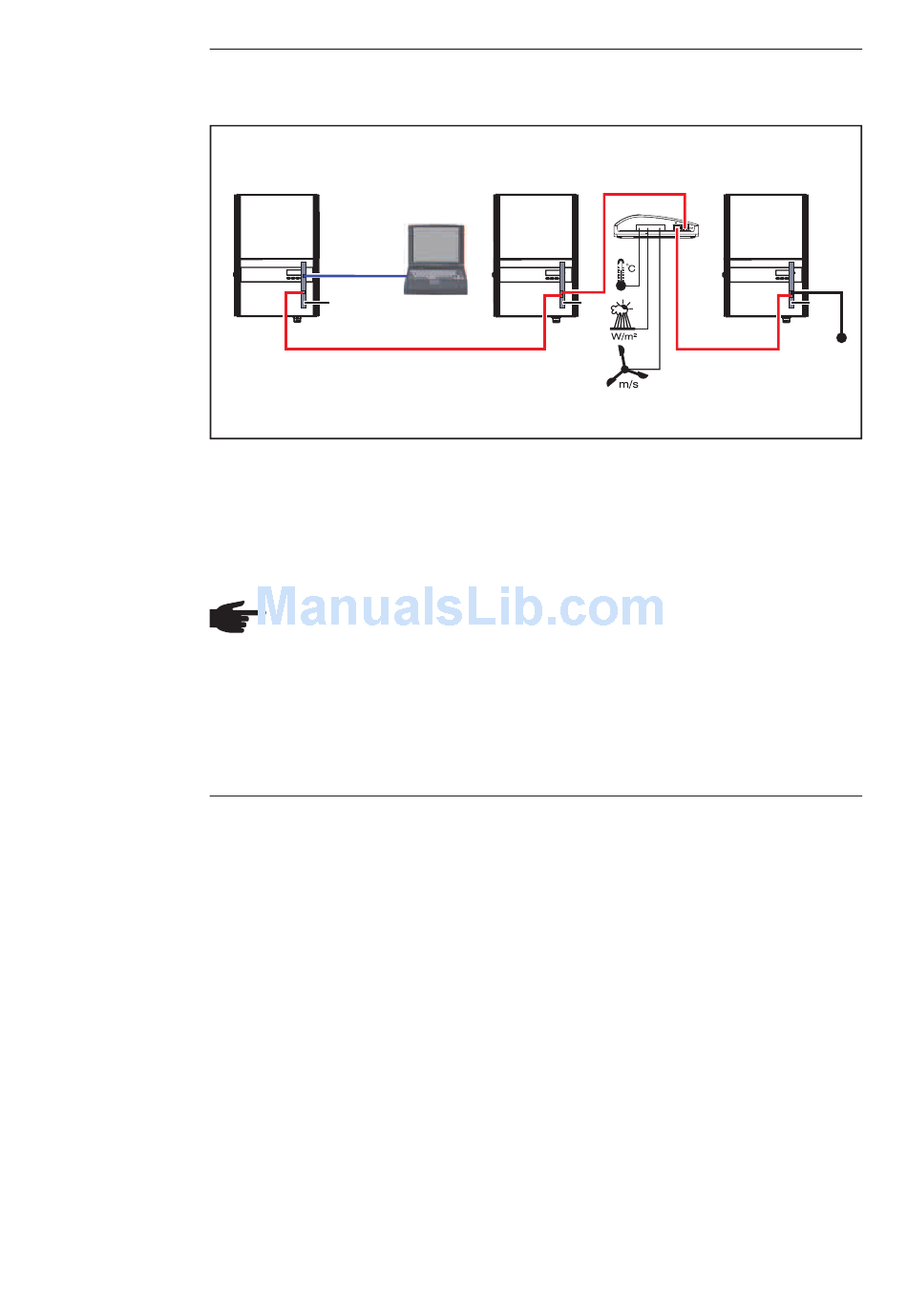

Linking Inverters with a Fronius Datamanager 2.0 Plug-in Card to Other Inverters,
a Fronius Sensor Box, and a PC:
(1)
(2)
(3)
(4)
(5)
Linking Two Inverters with Fronius Com Card or Com Card Function to a Fronius
Datamanager Box 2.0 and a Smartphone:
14
(1)
(3)
LAN / WLAN
IN
(2)
Inverter with
Fronius Datamanager 2.0
PC/laptop
Inverter with
Fronius Com Card
NOTE! When linking several DATCOM components to Fronius Datamanager 2.0:
Use the data cable to connect the IN connection socket of Fronius Datamanager
2.0 with the OUT connection socket of the next DATCOM component. A Fronius
Solar Net termination plug must be inserted into the empty IN connection socket
of the last DATCOM component.
With the following inverters, the inverter with Fronius Datamanager 2.0 must al-
ways be connected either at the start or end of the data chain:
Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL,
Fronius CL USA and Fronius IG 300–500.
(4)
(6)
IN
IN
OUT (5)
(6) Fronius Sensor Box
(7) Inverter
(8) Fronius Com Card
(9) Fronius Solar Net termination plug
(7)
OUT
IN
OUT
(8)
(9)
