HP Classmate Maintenance And Service Manual

Hide thumbs Also See for Classmate:
Table of Contents

Advertisement

Quick Links

Download this manual

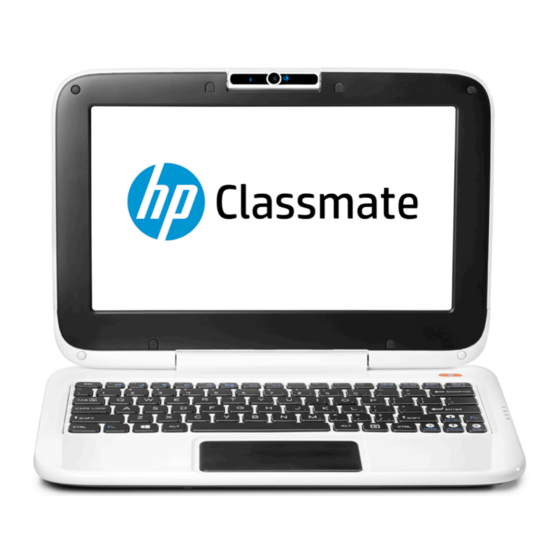

HP Classmate Notebook
Maintenance and Service Guide
IMPORTANT! This document is intended for HP
authorized service providers only.

Advertisement

Table of Contents
loading

Related Manuals for HP Classmate

Summary of Contents for HP Classmate

  • Page 1 HP Classmate Notebook Maintenance and Service Guide IMPORTANT! This document is intended for HP authorized service providers only.
  • Page 2 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
  • Page 4 Safety warning notice...

  • Page 5: Table Of Contents

    Table of contents 1 Product description ............................1 2 External component identification ......................... 3 Front ..................................3 Left ..................................5 Right ..................................6 Rear ..................................7 Service tag ................................8 3 Illustrated parts catalog ..........................9 Computer major components ..........................9 Display components ............................
  • Page 6 Heat sink ............................33 Power cable ............................35 Hard drive ............................37 Battery ............................... 40 I/O board ............................41 System board ............................ 42 RTC battery ............................44 Display assembly ..........................46 6 Backing up, restoring, and recovering ......................55 Creating a Microsoft recovery drive (select models only) .................. 55 Using Windows Refresh for quick and easy recovery ..................

  • Page 7: Product Description

    Product description Category Description Product Name HP Classmate Notebook Processors Intel® Celeron® N2806 processor (1.46 GHz/533 MHz, 2.5 W, dual core) Chipset Intel Valleyview_M_SOC Celeron Processor Graphics Integrated UMA Panel 25.7 cm (10.1-inch) HD, 1366×768 anti glare (3.6 mm) non-touch...
  • Page 8 Category Description 3-cell, 34-Wh, 3.4 Ah, polymer battery Security Security lock TPM 1.2 (Infineon; soldered down) Operating system Preinstalled: Windows 8.1 Professional 64-bit Windows 8.1 Emerging Markets (EM) 64-bit, MSNA Windows 8.1 Single-language (EM) Windows 8.1 Small Screen Language Restore Media (DRDVD): Windows 8.1 64-bit (drivers only) NOTE: Portable optical drive required to use restore media.

  • Page 9: External Component Identification

    External component identification Front Component Description Internal microphone Record sound. Webcam Records video and captures photographs. Power button ● When the computer is off, press the button to turn on the computer. ● When the computer is on, press the button briefly to initiate Sleep.
  • Page 10 For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region. To access this guide, from the Start screen, type support, and then select the HP Support Assistant app. Chapter 2 External component identification...

  • Page 11: Left

    Left Component Description (13) Security cable slot Attaches an optional security cable to the computer. NOTE: The security cable is designed to act as a deterrent, but it may not prevent the computer from being mishandled or stolen. (14) USB 3.0 port, identifying Connects an optional USB device, such as a keyboard, mouse, external drive, printer, scanner or USB hub.

  • Page 12: Right

    For additional safety information, see the Regulatory, Safety, and Environmental Notices. To access this guide, from the Start screen, type support, and then select the HP Support Assistant app. NOTE: When a device is connected to the jack, the computer speakers are disabled.

  • Page 13: Rear

    Rear Component Description (19) Power connector Connects an AC adapter. (20) RJ-45 (network) jack/lights Connects a network cable. ● Green (right): The network is connected. ● Amber (left): Activity is occurring on the network. Rear...

  • Page 14: Service Tag

    Service tag When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag. ● Serial (1). This is an alphanumeric identifier that is unique to each product. ● Product name (2). This is the product name affixed to the front of the computer. ●...

  • Page 15: Illustrated Parts Catalog

    Computer major components NOTE: HP continually improves and changes product parts. For complete and current information on supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions. NOTE: Details about your computer, including model, serial number, product key, and length of warranty, are on the service tag at the bottom of your computer.
  • Page 16 Item Description Spare part number Whole unit replacement Latin America 762412-001 The United Kingdom 762411-001 The United States 762410-001 Top cover (includes touchpad and handle kit) 764406-001 Keyboard (includes cable) Chapter 3 Illustrated parts catalog...
  • Page 17 Item Description Spare part number For use in the United States 778823-001 For use in Latin America 778823-161 System board with Celeron N2806 processor (includes replacement thermal material) 778814-001 I/O board 764413-001 Heat sink (includes replacement thermal material) 764414-001 Battery 3-cell, 34-Wh, 3.4 Ah, polymer battery 786031-001 Memory modules (PC3L-12800, 1600-MHz, DDR3L)

  • Page 18: Display Components

    Display components Item Description Spare part number Display panel (raw) 778821-001 Display bezel 778822-001 Display Hinge Kit (includes left and right hinges) 764405-001 Webcam module 778819-001 Display hinge cover 764416-001 Display rear cover 778818-001 Display panel frame 778820-001 Chapter 3 Illustrated parts catalog...

  • Page 19: Cable Kit

    Cable Kit Item Description Spare part number Cable Kit 764412-001 Touchpad cable Narrow flat ribbon cable Wide flat ribbon cable Cable Kit...

  • Page 20: Hard Drive Components

    Hard drive components Description Spare part number Hard drives 320-GB, 5400-rpm, 7 mm 786030-001 Hard Drive Hardware Kit, includes: 764408-001 Hard drive bracket Rubber rails Sponge (not illustrated) Screws (not illustrated) Hard drive connector cable 764409-001 Chapter 3 Illustrated parts catalog...

  • Page 21: Miscellaneous Parts

    Miscellaneous parts Description Spare part number AC adapter, 40-W 778816-001 Power cord 778815-001 Rubber Kit (includes all rubber covers and pads) 764417-001 Screw Kit 780744-001 Sequential part number listing Spare part Description number 691739-005 2-GB memory module (PC3L-12800, 1600-MHz, DDR3L) 762410-001 Whole unit replacement –...
  • Page 22 Spare part Description number 778823-001 Keyboard for use in the United States 778823-161 Keyboard for use in Latin America 778821-001 Display panel (raw) 780744-001 Screw Kit 786030-001 320-GB, 5400-rpm, 7 mm, hard drive 786031-001 3-cell, 37 WHr, 3.4 Ah Li-ion battery 788292-001 802.11b/g/n 1x1 WiFi Adapter + Bluetooth 4.0 Chapter 3 Illustrated parts catalog...

  • Page 23: Removal And Replacement Procedures Preliminary Requirements

    Removal and replacement procedures preliminary requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Flat-bladed screwdriver ● Phillips P0 and P1 screwdrivers ● Torx T8 screwdriver Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

  • Page 24: Cables And Connectors

    Cables and connectors CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the computer. Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.

  • Page 25: Grounding Guidelines

    Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions. A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.

  • Page 26: Packaging And Transporting Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: ● To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

  • Page 27: Equipment Guidelines

    Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.

  • Page 28: Removal And Replacement Procedures For Authorized Service Provider Parts

    Component replacement procedures NOTE: HP continually improves and changes product parts. For complete and current information on supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions. NOTE: Details about your computer, including model, serial number, product key, and length of warranty, are on the service tag at the bottom of your computer.
  • Page 29 Remove the 8 rubber screw covers from atop the screws. The screw covers are different sizes based on location, so be sure to make note of each screw covers location for replacement. Remove the 2 Phillips M2.5×8.0 screws and 6 Phillips M2.5×6.0 screws that secure the bottom cover to the computer.

  • Page 30: Memory Module

    Failure to update the computer to the latest BIOS prior to installing new memory may result in various system problems. To update BIOS: Navigate to www.hp.com. Click Support & Drivers > click Drivers & Software. In the Enter a product name/number box, type the computer model information, and then click Search.
  • Page 31 Remove the memory module: Spread the retaining tabs (1) on each side of the memory module slot to release the memory module. (The edge of the module opposite the slot rises away from the computer.) Remove the memory module (2) by pulling the module away from the slot at an angle. NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the memory module slot.

  • Page 32: Wlan/Bluetooth Combo Card

    WLAN/Bluetooth combo card The computer uses a card that provides both WLAN and Bluetooth functionality. Description Spare part number LiteOn/AzureWave 802.11 b/g/n 1x1 + BT 4.0 combo 788292-001 Before removing the WLAN module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 33 Remove the WLAN module (3) by pulling the module away from the slot. NOTE: WLAN modules are designed with a notch to prevent incorrect insertion. NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective sleeves must be installed on the antenna connectors, as shown in the following illustration.

  • Page 34: Keyboard

    Keyboard Description Spare part number Keyboard for use in the United States 778823-001 Keyboard for use in Latin America 778823-161 Before removing the keyboard, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 35 Lift the top of the keyboard upward (2), and place the keyboard on the palm rest. Disconnect the keyboard cable from the system board. Component replacement procedures...
  • Page 36 The touchpad cable also connects to the system board under the keyboard. This connector is located on the bottom of the system board along with the keyboard connector. Disconnect the touchpad cable if you need remove the system board. Reverse this procedure to install the keyboard. Chapter 5 Removal and replacement procedures for Authorized Service Provider parts...

  • Page 37: Speaker Assembly

    Speaker assembly Description Spare part number Speaker assembly 764411-001 Before removing the speaker assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 38 Lift the pieces of tape that secure the speaker cable to the computer (3), and then remove the speakers. Reverse this procedure to install the speaker assembly. Chapter 5 Removal and replacement procedures for Authorized Service Provider parts...

  • Page 39: Heat Sink

    Heat sink All heat sink spare part kits include replacement thermal material. Description Spare part number Heat sink 764414-001 Before removing the heat sink assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 40 Lift the heat sink off the system board. NOTE: Thoroughly clean thermal material from the surfaces of the system board components and the heat sink each time you remove the heat sink. All heat sink and processor spare part kits include thermal material.

  • Page 41: Power Cable

    Power cable Description Spare part number Power cable 764410-001 Before removing the power cable, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 42 Lift the power cable from the computer (4). Reverse this procedure to install the power cable. Chapter 5 Removal and replacement procedures for Authorized Service Provider parts...

  • Page 43: Hard Drive

    Hard drive Description Spare part number 320-GB, 5400-rpm, 7 mm hard drive 786030-001 Hard Drive Hardware Kit (includes hard drive bracket, rubber rails, sponge, and screws) 764408-001 Hard drive connector cable 764409-001 Before removing the hard drive, follow these steps: Shut down the computer.
  • Page 44 Remove the hard drive from the computer. To remove the hard drive cover from the hard drive, remove the 4 Phillips PM2.5×3.0 screws (1) that secure the cover to the drive, and then lift the cover off the drive (2). Pull the hard drive cable to disconnect it from the drive (3).
  • Page 45 To remove the rubber rails from the hard drive, pull each rail off to disengage the adhesive that secures the rail to the drive. Reverse this procedure to install a hard drive. Component replacement procedures...

  • Page 46: Battery

    Battery Description Spare part number 3-cell, 34-Wh, 3.4 Ah, polymer battery 786031-001 Before removing the battery, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 47: I/O Board

    I/O board Description Spare part number I/O board 764413-001 Before removing the I/O board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 48: System Board

    System board NOTE: The system board spare part kit includes replacement thermal material. Description Spare part number System board with Celeron N2806 processor (includes replacement thermal material) 778814-001 Before removing the system board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 49 Remove the 3 nuts (1) and 2 Phillips PM2.0×5.5 screws (2) that secure the system board to the computer. Pull the system board away from the side of the computer to release the connectors, and then remove it from the computer. Reverse this procedure to install the system board.

  • Page 50: Rtc Battery

    RTC battery Description Spare part number RTC battery 764403-001 Before removing the RTC battery, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 51 Lift the battery to disengage it from the adhesive that secures it to the system board (3). Reverse this procedure to install the RTC battery. Component replacement procedures...

  • Page 52: Display Assembly

    Display assembly For a list of individual display spare parts, see Display components on page Before removing the display assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 53 Remove the 2 Phillips PM2.5×5.0 screws (1) and the 6 Phillips PM2.5×4.0 screws (2) that secure the display rear cover to the display bezel. Component replacement procedures...
  • Page 54 Rotate the top of the display enclosure downward and remove it from the display. The display enclosure is available using spare part number 778818-001. If you need to remove the display panel, first move the webcam by removing the 2 Phillips PM2.0×3.0 screws (1) that secure the webcam to the display, lift the webcam cables to disengage the adhesive that secures them to the display (2), and lay the connected webcam aside.
  • Page 55 Lift the various pieces of tape that secure the display panel to the display (4). Remove the 4 Phillips PM2.5×4.0 screws (1) that secure the display panel to the bezel. Lift the tape over the display panel connector (2) and disconnect the cable from the panel (3). Component replacement procedures...
  • Page 56 Remove the display panel from the bezel (4). Remove the four Phillips PM2.0×3.0 screws that secure the panel to the frame, and then lift the panel from the frame. The display panel is available using spare part number 778821-001. The display panel frame is available using spare part number 778820-001. Chapter 5 Removal and replacement procedures for Authorized Service Provider parts...
  • Page 57 Removing the remaining components requires removing the display assembly from the computer. To remove the display assembly, first remove the display hinge cover by prying the cover off with a thin tool. The display hinge cover is available using spare part number 764416-001. To remove the display assembly, remove the 4 Phillips PM2.0×3.0 screws (1) that secure the display to the hinges, and then rotate the hinges upward (2) to allow enough room to remove the display from the hinges.
  • Page 58 Separate the display from the hinges, and then route the cables through the hole in the computer. If you need to remove the webcam, remove the 2 Phillips PM2.0×3.0 screws (1) that secure the webcam to the bezel. Lift the webcam cable from the display to disengage the adhesive (2), lift the tape that secures the cables to the display (3), and then remove the webcam.
  • Page 59 Lift the tape that secures the transceivers to the sides of the bezel (1). Remove the cables from the routing channels built into the bezel (2). Lift the tape that secures the antennas to the bezel (3). The bezel is available using spare part number 778822-001. CAUTION: When installing the display assembly, be sure that the wireless antenna cables are routed and arranged properly.
  • Page 60 On the top of the computer, remove the 2 Phillips PM2.5×5.0 screws (1) that secure the hinges to the computer, and then lift the hinges from the computer (2). Display hinges are available in the Display Hinge Kit using spare part number 764405-001. Reverse this procedure to reassemble and install the display assembly.

  • Page 61: Backing Up, Restoring, And Recovering

    Backing up, restoring, and recovering Your computer includes tools provided by Windows to help you safeguard your information and retrieve it if you ever need to. These tools will help you return your computer to a proper working state or even back to the original factory state, all with simple steps.

  • Page 62: Using Windows Refresh For Quick And Easy Recovery

    Using Windows Refresh for quick and easy recovery When your computer is not working properly and you need to regain system stability, the Windows Refresh option allows you to start fresh and keep what is important to you. IMPORTANT: Refresh removes any applications that were not originally installed on the system at the factory.

  • Page 63: Specifications

    Specifications Computer specifications Metric U.S. Dimensions Length 262.8 cm 10.35 in Depth 213 mm 7.68 in Height (front to rear) 26.7 to 28.5 mm 1.05 to 1.12 in Weight SATA flash/webcam/2cell battery 1.3 kg 2.9 lbs Input power Input 100 to 240 VAC Output DC output Temperature...

  • Page 64: 25.7-Cm (10.1-In) Display Specifications

    25.7-cm (10.1-in) display specifications Metric U.S. Active diagonal size 256.5 mm 10.1-cm Resolution 1280x800 Active area 8.75x4.91 in (222.22.x124.81 mm) Surface treatment Anti-glare Contrast ratio 600:1 (typical) Refresh rate 60 Hz Brightness 400 nits (typical) Viewing angle UWVA 85/85/85/85 Backlight Pixel resolution Pitch 0.1695mm ×0.1695 mm...

  • Page 65: Hard Drive Specifications

    Hard drive specifications 500-GB* 320-GB* Dimensions Height 9.5 mm 9.5 mm Width 70 mm 70 mm Weight 101 g 101 g Interface type SATA SATA Transfer rate 100 MB/sec 100 MB/sec Security ATA security ATA security Seek times (typical read, including setting) Single track 3 ms 3 ms...

  • Page 66: Statement Of Volatility

    The steps below will remove personal data from the notebook PC, including the nonvolatile memory found in Intel-based and AMD-based system boards. Some of these steps are disclosed in the Maintenance & Service Guides available for HP PC products available on the product support pages at www.hp.com.
  • Page 67 Remove and retain the storage drive or clear the contents of the drive. Hard Disk Drive (HDD) Clear the HDD contents by using the HP Disk Sanitizer® utility or a third party application that, ideally, is U.S. Department of Defense (DOD) 5220.22-M approved.

  • Page 68: Non-Volatile Memory Usage

    (keyboard, when the system BIOS is memory and is accessible) mouse, & updated. available on the HP battery website. Writing data management). to this ROM in an inappropriate manner can render the PC nonfunctional. DIMM Serial...
  • Page 69 Fingerprint 512kByte Stores By enrolling in HP Only a digitally signed reader Flash fingerprint ProtectTools Security application can make templates. Manager. the call to write to the flash.

  • Page 70: Questions And Answers

    Questions and answers How can the BIOS settings be restored (returned to factory settings)? Turn on or restart the computer and press when prompted near the bottom of the display. Select File, then select Restore defaults. Follow the on-screen instructions. Select File, save changes and exit, then press Enter.

  • Page 71: Power Cord Set Requirements

    Power cord set requirements The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts ac, or from 220 to 240 volts ac. The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
  • Page 72 Country/region Accredited agency Applicable note number Japan The Netherlands KEMA New Zealand SANZ Norway NEMKO The People's Republic of China Saudi Arabia SASO Singapore South Africa SABS South Korea Sweden SEMKO Switzerland Taiwan BSMI Thailand TISI The United Kingdom ASTA The United States The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size.

  • Page 73: 10 Recycling

    Follow the local laws and regulations in your area for battery disposal. HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/...

  • Page 74: Index

    Index display assembly Hard Drive Hardware Kit, spare part AC adapter, spare part number 15 removal 46 number 14, 15, 37 AC adapter/battery light 4 spare part numbers 46 hard drive light, identifying 4 antennas display bezel HDMI port disconnecting 26 spare part numbers 12 identifying 5 audio, product description 1...
  • Page 75 webcam 1 network jack, identifying 7 wireless 1 USB 2.0 port, identifying 6 product name 1 USB 3.0 port 5 USB ports, identifying 5 operating system, product description 2 recovery, refresh 56 optical drive recycling 56 webcam precautions 18 refresh Windows 56 product description 1 removal/replacement removal 52...
