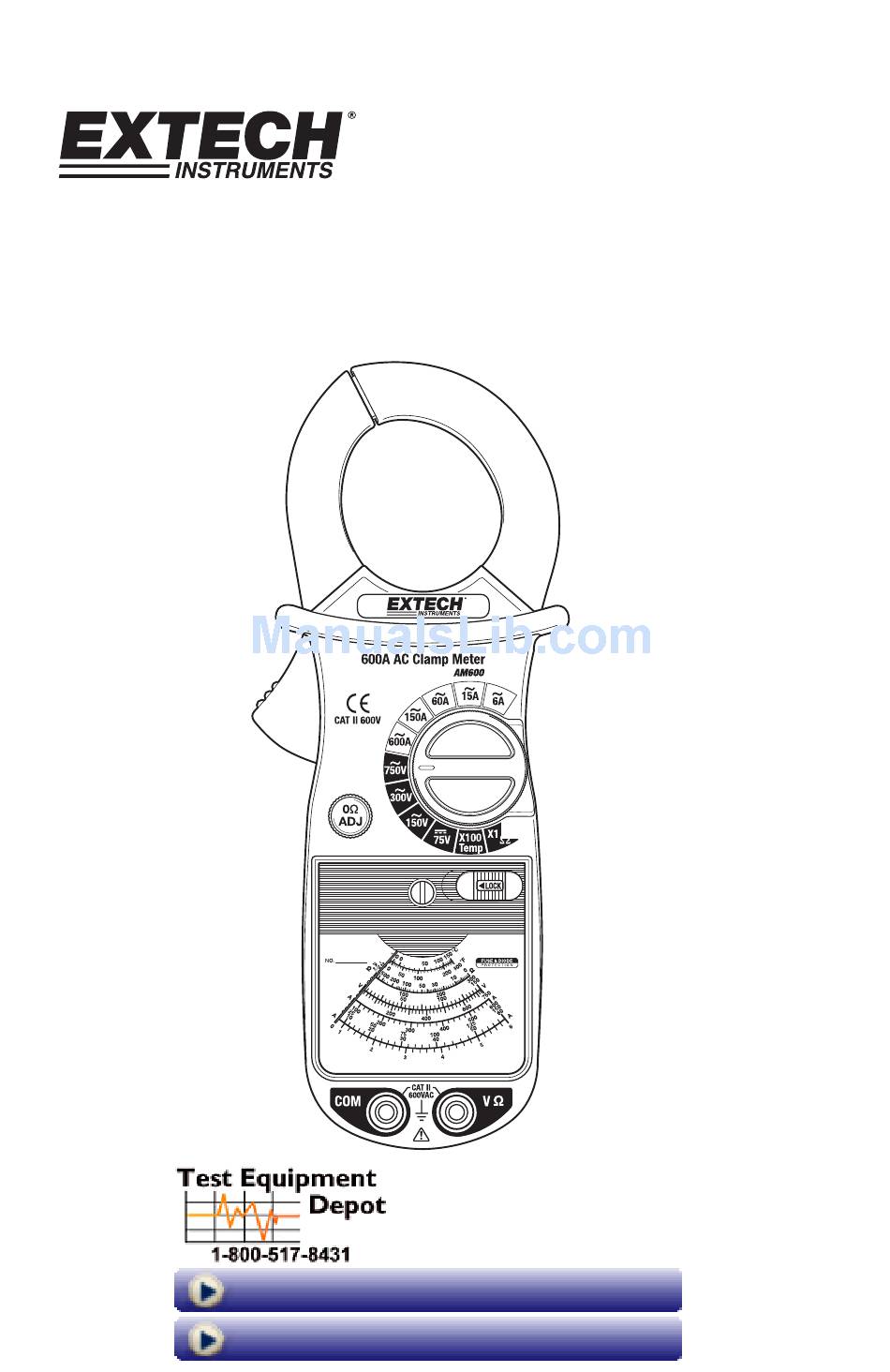

- Page 1 User's Guide Extech AM600 600A AC Analog Clamp Meter 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Back to the Extech AM600 Product Info Page...
- Page 2 Introduction Congratulations on your purchase of the Extech AM600 Analog Clamp Meter. This device measures AC Current, AC Voltage, DC Voltage, Resistance and Temperature. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 Clamp opening trigger 0 Ohms adjustment Meter zero adjustment Scale “COM” Terminal Range switch Pointer Lock switch V, Ω and Temp Terminal AM600 V2.0 6/07 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
-
Page 4: Operation
Connect the test leads in parallel to the circuit under test. The analog display pointer will indicate the voltage reading. When possible, set the Range switch to a lower range to obtain a reading in the upper half of the scale. AM600 V2.0 6/07... -
Page 5: Resistance Measurements
Insert the temperature probe black plug into the COM terminal and the red plug into the V Ω terminal. Place the temperature probe into the area to be tested. Read the temperature on the °C or °F temperature scale fig. 1 fig. 2 AM600 V2.0 6/07... -
Page 6: Specifications
8.4 x 3.4 x 1.7" (214 x 85 x 43 mm); 12.4 oz. (350 g) Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category II 600V, Pollution Degree 2. Standards AM600 V2.0 6/07... -
Page 7: Maintenance
Replace the rear cover. 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Back to the Extech AM600 Product Info Page Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
