- Page 1 AS5601-SO_EK_ST Evaluation Kit Quickstart Guide...

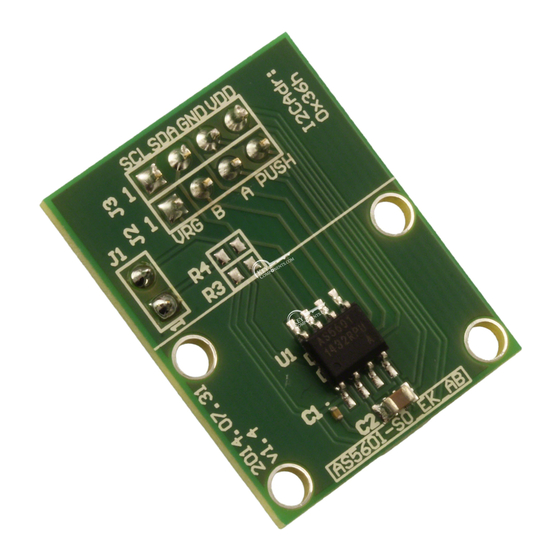

- Page 2 Step 1: Kit Content This kit contains following material listed in the table below. Additional information about material can be found on our webpage. Item Info USB I&P Box Programming and Interface Box (Includes USB Drive, USB Cable, 10way cable, USB I&P Box) AS5601- Adapterboard including...
- Page 3 Step3: Assemble the Hardware Setup Step4: Using the software Following steps are required to perform a configuration and to read-out the AS5601. Read the software user manual for details. Perform the desired configuration Perform the required angle programming. Verify the results...
-
Page 4: Contact Information
Note: This Programmer is for LAB Evaluation only. Do not use it as a Production Programmer! Contact Information Headquarters ams AG Tobelbader Strasse 30 8141 Unterpremstaetten Austria T. +43 (0) 3136 500 0 For Sales Offices, Distributors and Representatives, please visit:...
