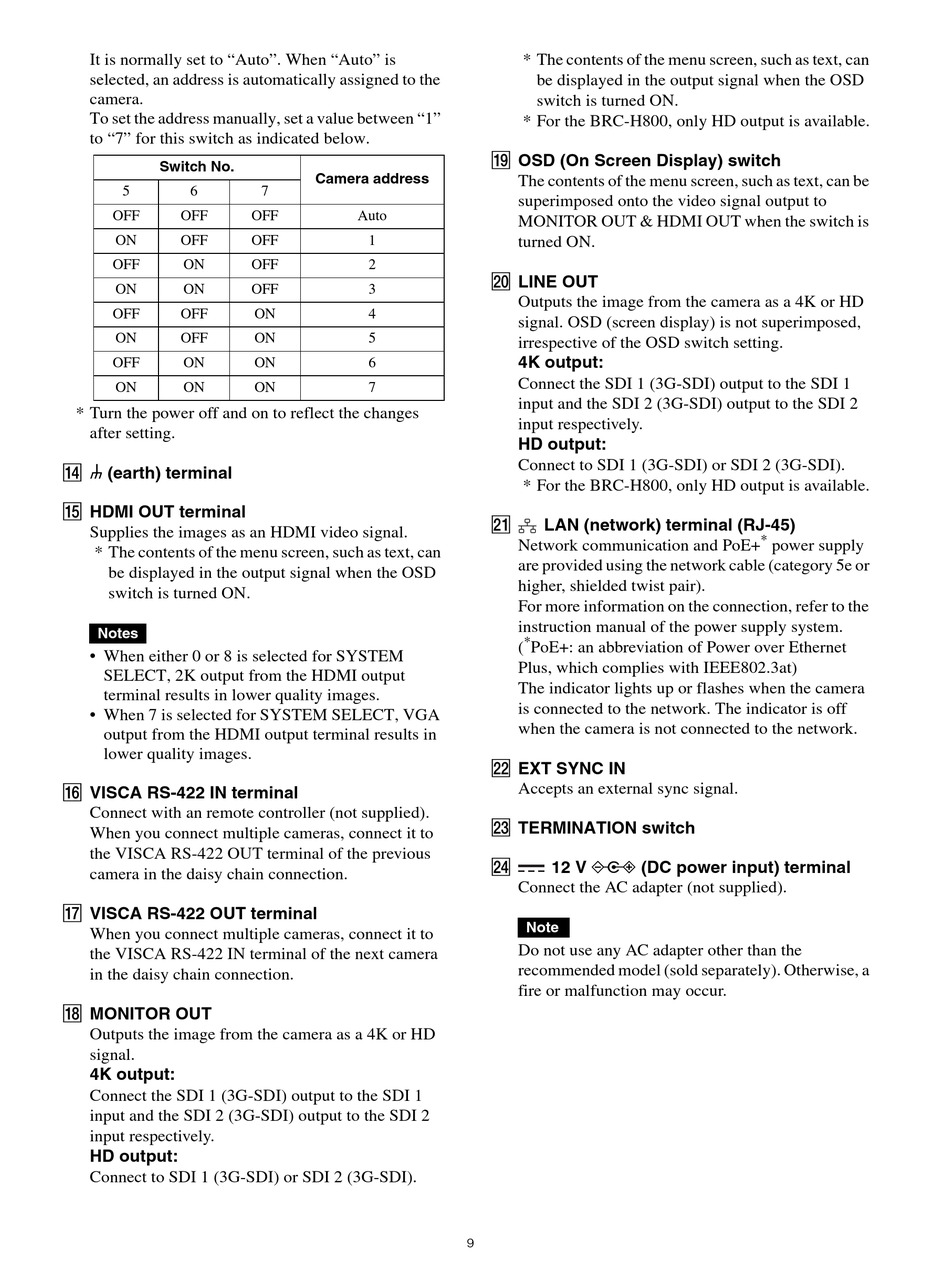

Sony BRC-X1000/H800 Operation Instructions Manual page 9

It is normally set to "Auto". When "Auto" is
selected, an address is automatically assigned to the
camera.
To set the address manually, set a value between "1"
to "7" for this switch as indicated below.
Switch No.
5 6
OFF OFF
ON OFF
OFF ON
ON ON
OFF OFF
ON OFF
OFF ON
ON ON
* Turn the power off and on to reflect the changes
after setting.
N U (earth) terminal
O HDMI OUT terminal
Supplies the images as an HDMI video signal.
* The contents of the menu screen, such as text, can
be displayed in the output signal when the OSD
switch is turned ON.
Notes
• When either 0 or 8 is selected for SYSTEM
SELECT, 2K output from the HDMI output
terminal results in lower quality images.
• When 7 is selected for SYSTEM SELECT, VGA
output from the HDMI output terminal results in
lower quality images.
P VISCA RS-422 IN terminal
Connect with an remote controller (not supplied).
When you connect multiple cameras, connect it to
the VISCA RS-422 OUT terminal of the previous
camera in the daisy chain connection.
Q VISCA RS-422 OUT terminal
When you connect multiple cameras, connect it to
the VISCA RS-422 IN terminal of the next camera
in the daisy chain connection.
R MONITOR OUT
Outputs the image from the camera as a 4K or HD
signal.
4K output:
Connect the SDI 1 (3G-SDI) output to the SDI 1
input and the SDI 2 (3G-SDI) output to the SDI 2
input respectively.
HD output:
Connect to SDI 1 (3G-SDI) or SDI 2 (3G-SDI).
Camera address
7
OFF Auto
OFF 1
OFF 2
OFF 3
ON 4
ON 5
ON 6
ON 7
* The contents of the menu screen, such as text, can
be displayed in the output signal when the OSD
switch is turned ON.
* For the BRC-H800, only HD output is available.
S OSD (On Screen Display) switch
The contents of the menu screen, such as text, can be
superimposed onto the video signal output to
MONITOR OUT & HDMI OUT when the switch is
turned ON.
T LINE OUT
Outputs the image from the camera as a 4K or HD
signal. OSD (screen display) is not superimposed,
irrespective of the OSD switch setting.
4K output:
Connect the SDI 1 (3G-SDI) output to the SDI 1
input and the SDI 2 (3G-SDI) output to the SDI 2
input respectively.
HD output:
Connect to SDI 1 (3G-SDI) or SDI 2 (3G-SDI).
* For the BRC-H800, only HD output is available.
U
LAN (network) terminal (RJ-45)
Network communication and PoE+
are provided using the network cable (category 5e or
higher, shielded twist pair).
For more information on the connection, refer to the
instruction manual of the power supply system.
*
( PoE+: an abbreviation of Power over Ethernet
Plus, which complies with IEEE802.3at)
The indicator lights up or flashes when the camera
is connected to the network. The indicator is off
when the camera is not connected to the network.
V EXT SYNC IN
Accepts an external sync signal.
W TERMINATION switch
X !
12 V (DC power input) terminal
Connect the AC adapter (not supplied).
Note
Do not use any AC adapter other than the
recommended model (sold separately). Otherwise, a
fire or malfunction may occur.
9
*
