Intel FALCON 8+ Quick Start Manual page 7

1
4
6
6
Figure 09
3
1
2
Figure 10
2
1
5
3
4
6
Figure 11
3
2
1
2
5
3
4
5
6
6
6
1
2
3
2
1
2
1
3
4
2
5
3
6

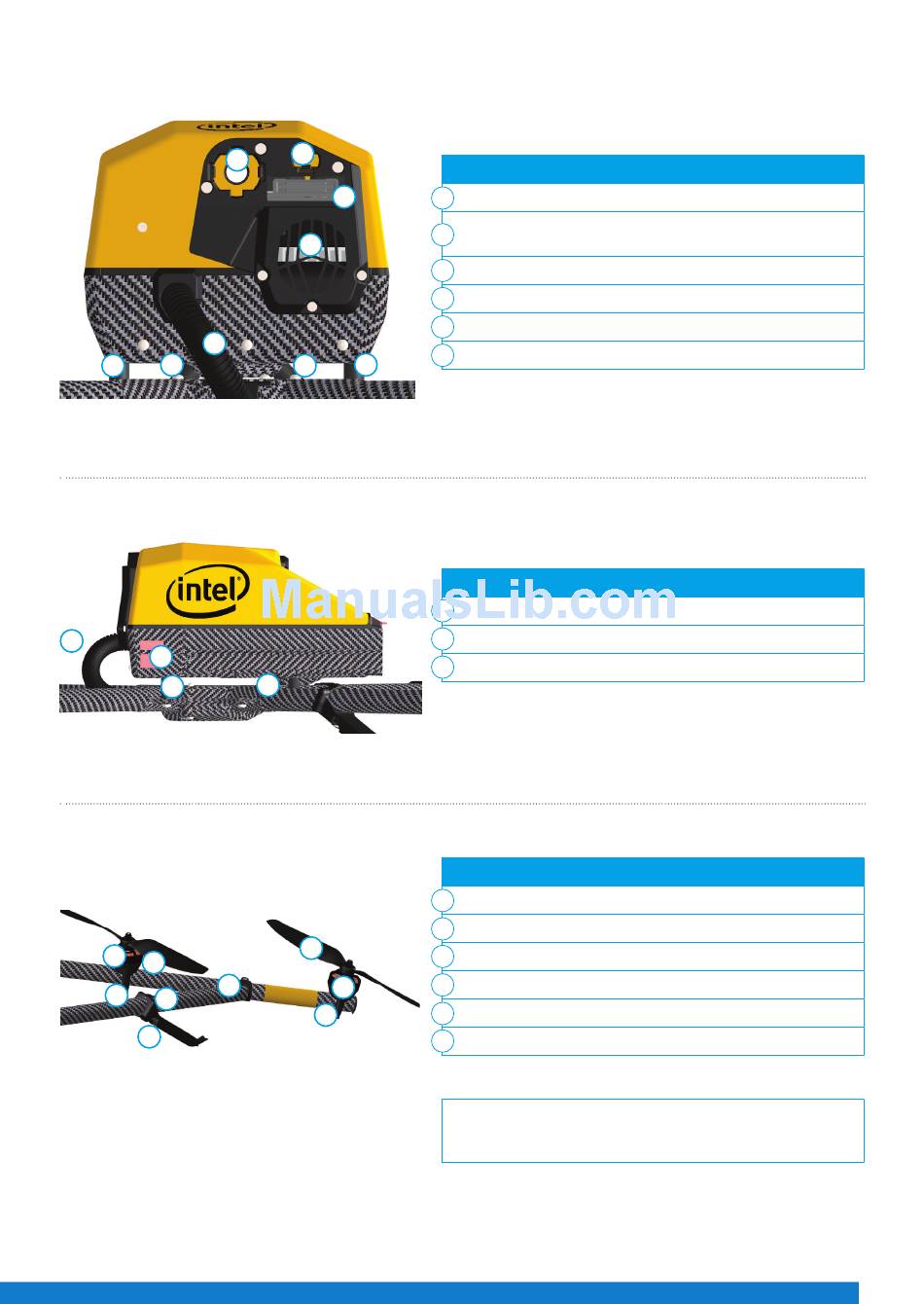

UAV – front view:
Hole for camera mount's carbon rod
Connector slot for payload adapter plug (see no. 2 in
Figure 25)
Retaining clip for payload adapter
Cable tube containing cabling of antennas (for example)
Fan for internal cooling behind slots
Vibration dampers
UAV – side view:
LED position light
Vibration dampers
Cable tube
Motor rails and related elements consist of:
Propellers (mounted directly on motors)
Brushless motors (mounted directly on mounts)
Brushless motor mount
Carbon fiber tube
Connector between carbon cross and motor rails
Landing foot
Each motor rail consists of four brushless motor controllers,
seated within the carbon tube.
QUICK START GUIDE – Rev. 06 July 2017
7
