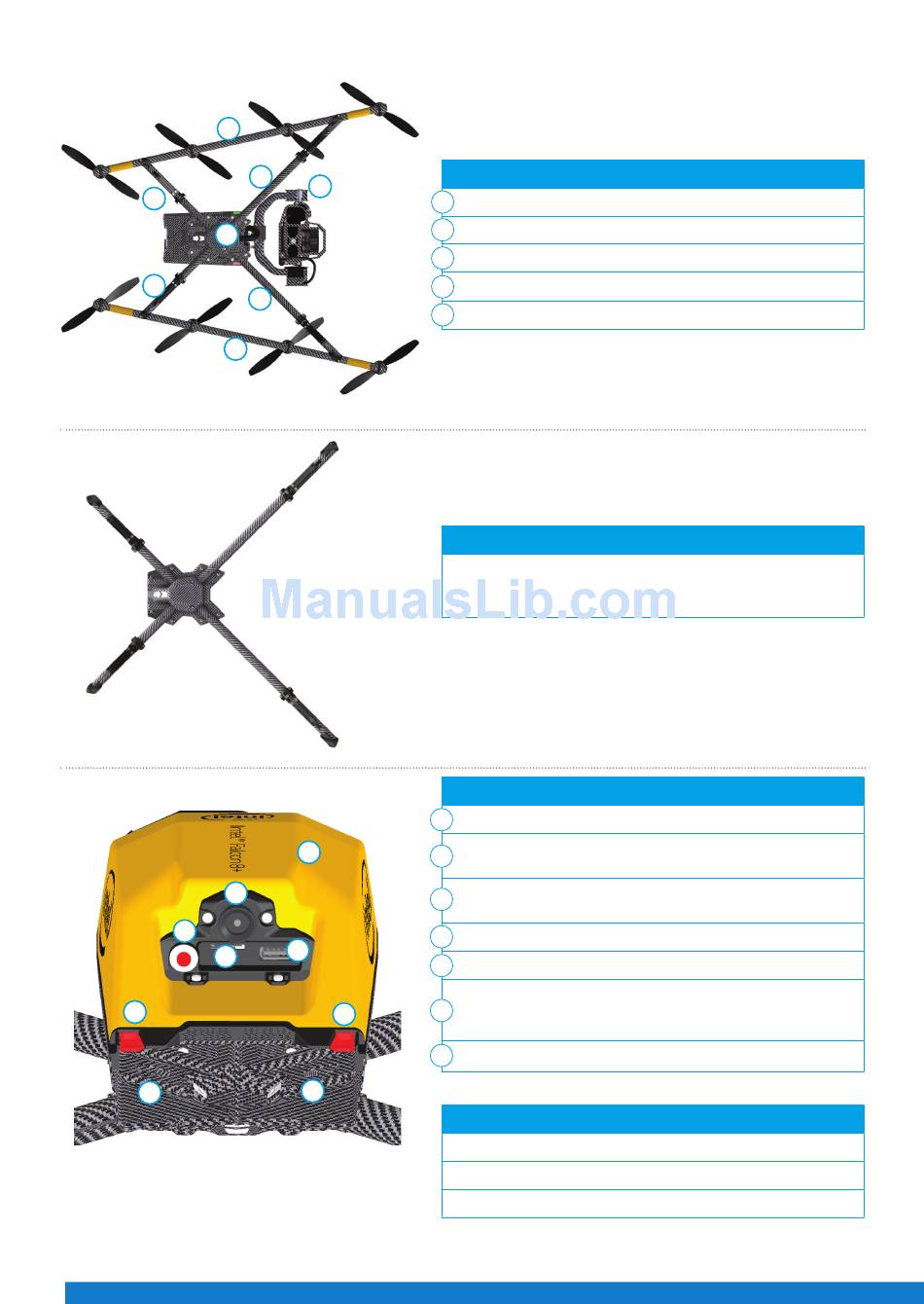

UAV with payload – bottom view:
1 Payload
2
Motor rails
3
Center cross piece
Carbon cross
4
5
Landing feet
Carbon cross with center cross piece, antenna arrangement:
Data link antennas (2.4 GHz) and video link antennas (5.8
GHz) are integrated into the landing feet. They are diagonally
arranged as shown in Figure 07.
UAV – back view:
1 Carbon fiber chassis
USB stick slot (supports up to 16 GB, file system: FAT32,
2
allocation unit size: 32 kilobytes)
Hole for camera mount carbon rod and knurled securing nut
3
(see no. 5 in Figure 11)
4 Battery compartments with retaining clips (7) for batteries
5
Power button
Micro SD-card slot (SD-card: speed class 10 minimum,
6 supports up to 16 GB, file system: FAT32, allocation unit size:
32 kilobytes); for flight logs (black box)
7 Battery marks
Built inside:
Electronics for flight stabilization and power supply
Diversity data link modules
Video transmitter module
