2

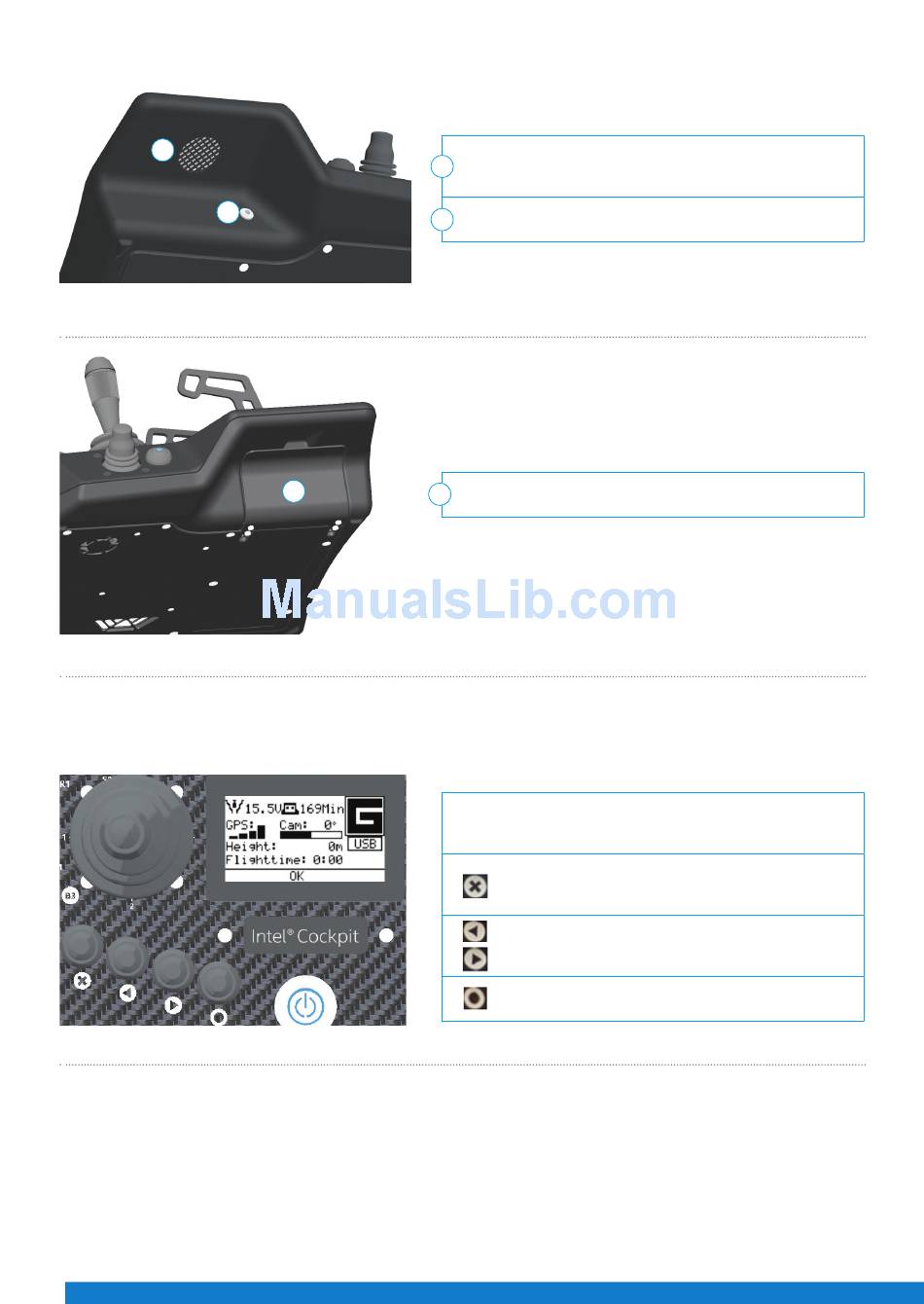

Figure 18
Figure 19
Overview of the Status Display
The Status Display shows all relevant information for flying. It is built into the Intel Cockpit Controller control unit.
Figure 20
Touchscreen Tablet
The touchscreen tablet is directly mounted onto the remote unit of the Intel Cockpit Controller, and cannot be removed. It is
powered by the battery of the Intel Cockpit Controller.
The touchscreen tablet serves as a video monitor, displays flight information, and gives access to extended functionality.
10
QUICK START GUIDE – Rev. 06 July 2017
1
1
Headphone port (mini-jack): Located on the lower right side of
1 the Intel Cockpit Controller to connect headphones, which may
be helpful under noisy conditions.
Small loudspeaker: Plays back acoustic warnings inside the
2
Intel Cockpit Controller when headphones are not connected.
Battery compartment with magnetic lid: Located on the lower
1
left of the Intel Cockpit Controller.
Via the Status Display, you can view the current settings, and
adjust specific functions of the UAV. To do so, use the four
buttons under the lower left corner of the Status Display.
Escape (left side) is used to leave menus/submenus, and
to clear functions. In the following text it is displayed as
ESC.
With the Left arrow button (middle, left side) and the
Right arrow button (middle, right side), you can scroll
through menus or alter parameters.
Enter (right side) is used to enter menus and activate
functions. In the following text it is displayed as ENT.
