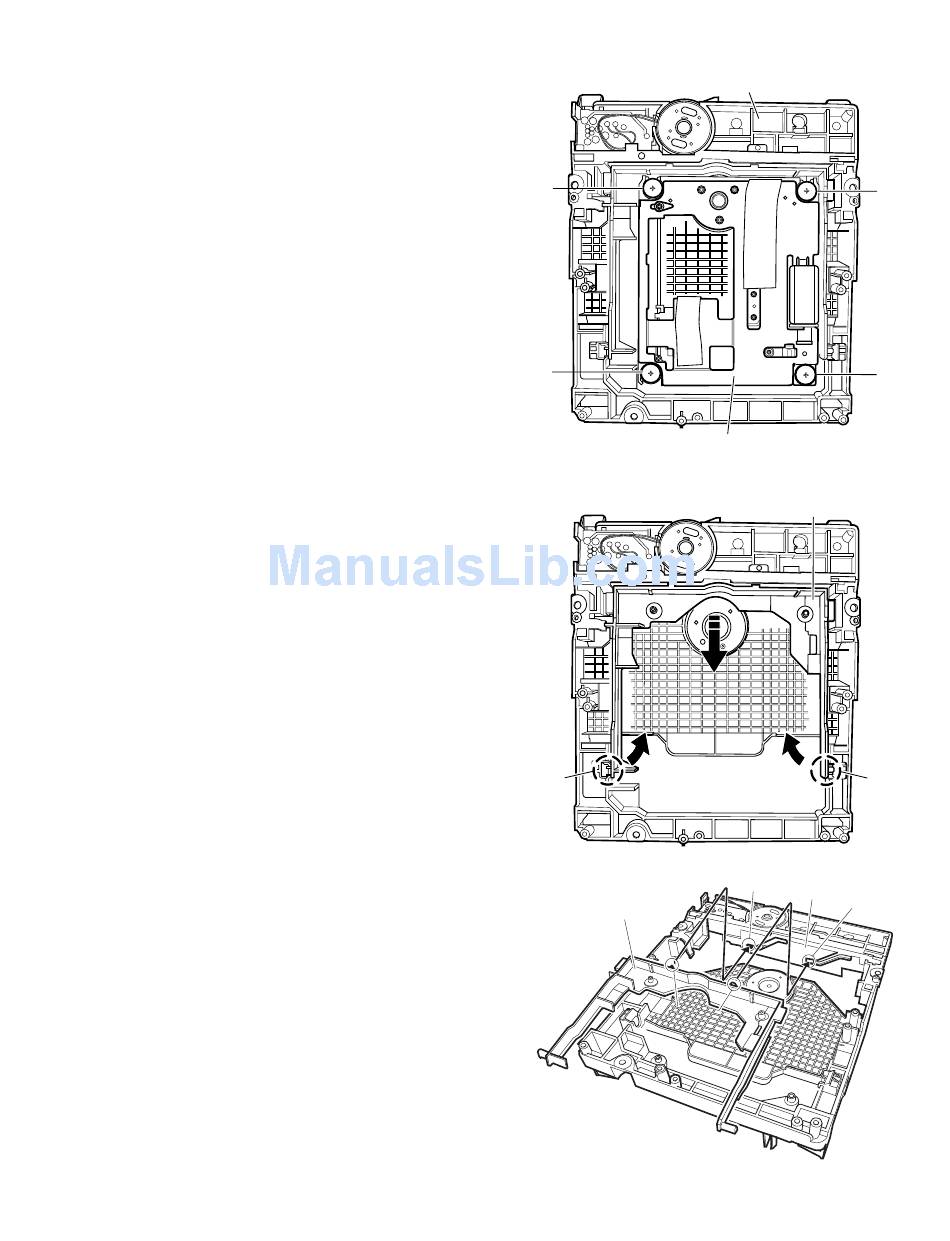

3.2.2 Removing the traverse mechanism assembly (See Figure 3-2g)
Reverse the loading mechanism assembly. Remove the four
screws B attaching the traverse mechanism assembly. Remove
the traverse mechanism assembly upward.
3.2.3 Removing the elevator (See Figure 3-2h and Figure 3-2j)
• Prior to the following procedure, remove the traverse mecha-
nism assembly.
(1) Remove the two arms of the elevator from the two parts f
by moving the arms in a direction of the arrow.
(2) Pull out the elevator in a rear direction.
Attaching the elevator:
Engage the two holes g to the two shafts on the front part of
the elevator. And then, attach the elevator.
Loading mechanism assembly
B
B
Traverse mechanism assembly
Fig.3-2g
Part f
Fig.3-2h
Elevator
Shaft
Shaft
Fig.3-2j
B
B
Elevator
Part f
g
Slide cam
g
(No.YD002)1-15
