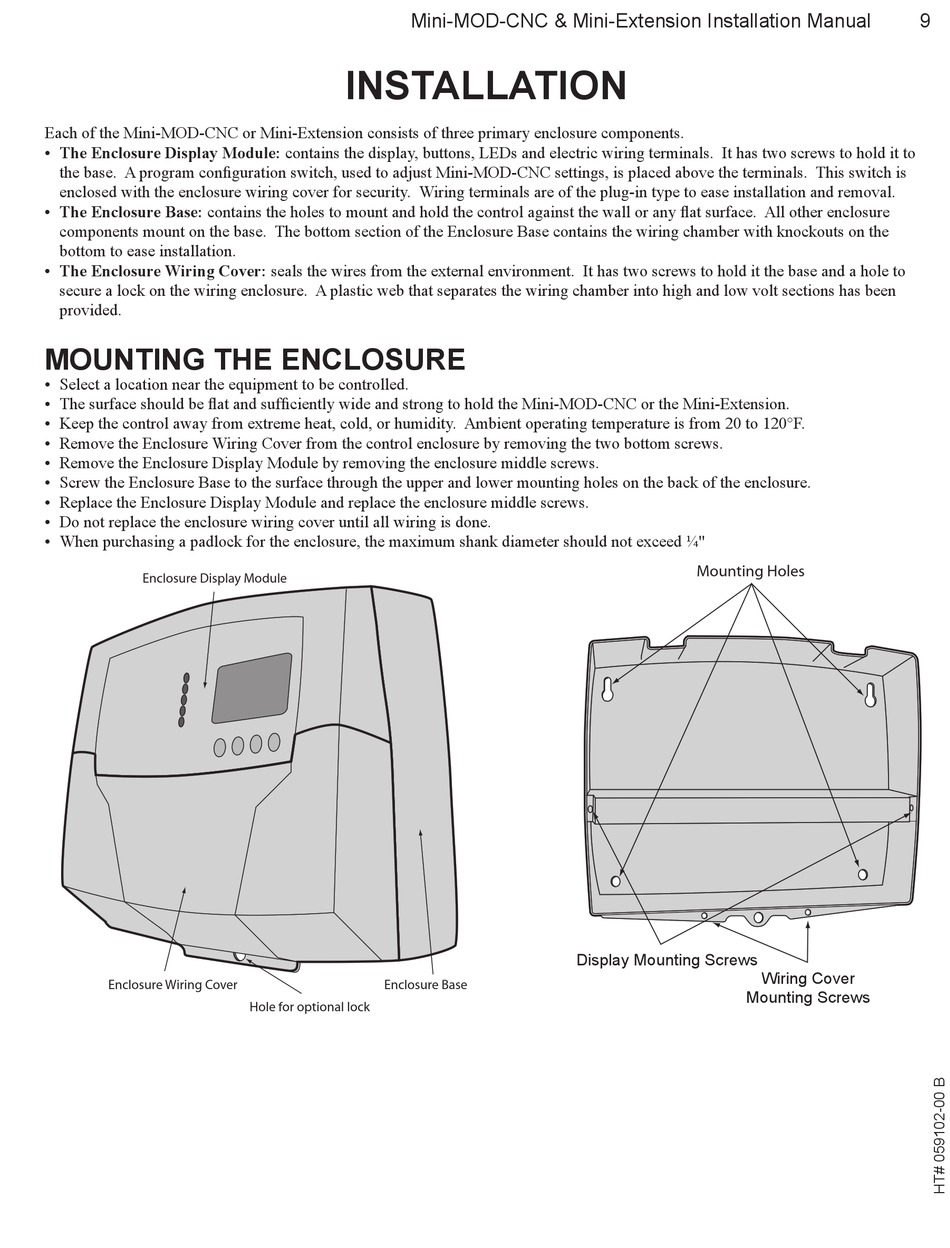

Each of the Mini-MOD-CNC or Mini-Extension consists of three primary enclosure components.
• T he Enclosure Display Module: contains the display, buttons, LEDs and electric wiring terminals. It has two screws to hold it to
the base. A program configuration switch, used to adjust Mini-MOD-CNC settings, is placed above the terminals. This switch is
enclosed with the enclosure wiring cover for security. Wiring terminals are of the plug-in type to ease installation and removal.
• T he Enclosure Base: contains the holes to mount and hold the control against the wall or any flat surface. All other enclosure
components mount on the base. The bottom section of the Enclosure Base contains the wiring chamber with knockouts on the
bottom to ease installation.
• T he Enclosure Wiring Cover: seals the wires from the external environment. It has two screws to hold it the base and a hole to
secure a lock on the wiring enclosure. A plastic web that separates the wiring chamber into high and low volt sections has been
provided.
MountIng tHe enclosure
• Select a location near the equipment to be controlled.
• The surface should be flat and sufficiently wide and strong to hold the Mini-MOD-CNC or the Mini-Extension.
• Keep the control away from extreme heat, cold, or humidity. Ambient operating temperature is from 20 to 120°F.
• Remove the Enclosure Wiring Cover from the control enclosure by removing the two bottom screws.
• Remove the Enclosure Display Module by removing the enclosure middle screws.
• Screw the Enclosure Base to the surface through the upper and lower mounting holes on the back of the enclosure.
• Replace the Enclosure Display Module and replace the enclosure middle screws.
• Do not replace the enclosure wiring cover until all wiring is done.
• When purchasing a padlock for the enclosure, the maximum shank diameter should not exceed ¼"
Enclosure Display Module
Enclosure Wiring Cover
Mini-MOD-CNC & Mini-Extension Installation Manual
InstallatIon
Enclosure Base
Hole for optional lock
(not supplied)
Mounting Holes
Display Mounting Screws
Mounting Screws
9
Wiring Cover
