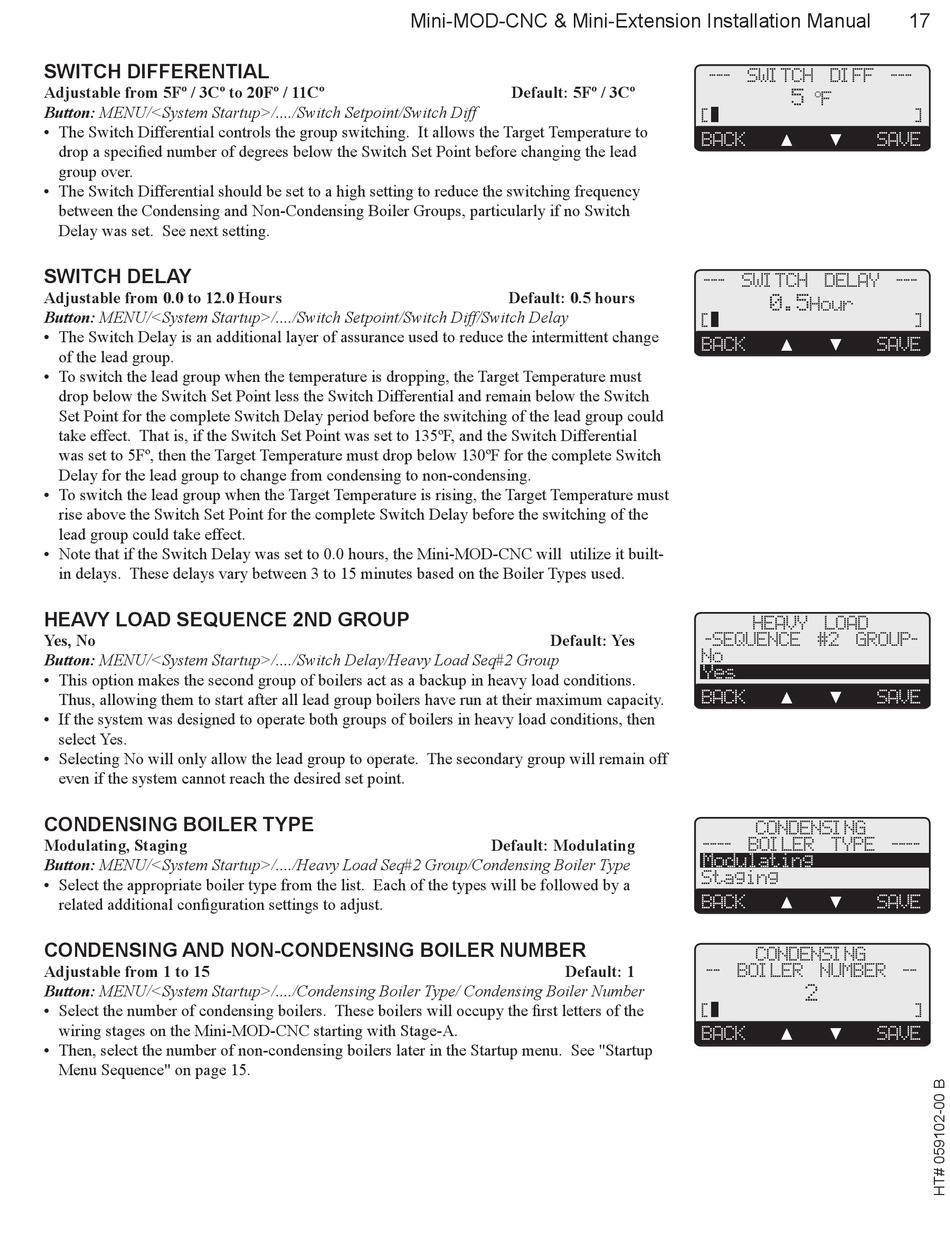

sWItcH dIfferentIal

Adjustable from 5Fº / 3Cº to 20Fº / 11Cº
Button: MENU/<System Startup>/..../Switch Setpoint/Switch Diff
• The Switch Differential controls the group switching. It allows the Target Temperature to
drop a specified number of degrees below the Switch Set Point before changing the lead
group over.
• The Switch Differential should be set to a high setting to reduce the switching frequency
between the Condensing and Non-Condensing Boiler Groups, particularly if no Switch
Delay was set. See next setting.

sWItcH delay

Adjustable from 0.0 to 12.0 Hours
Button: MENU/<System Startup>/..../Switch Setpoint/Switch Diff/Switch Delay
• The Switch Delay is an additional layer of assurance used to reduce the intermittent change
of the lead group.
• To switch the lead group when the temperature is dropping, the Target Temperature must
drop below the Switch Set Point less the Switch Differential and remain below the Switch
Set Point for the complete Switch Delay period before the switching of the lead group could
take effect. That is, if the Switch Set Point was set to 135ºF, and the Switch Differential
was set to 5Fº, then the Target Temperature must drop below 130ºF for the complete Switch
Delay for the lead group to change from condensing to non-condensing.
• To switch the lead group when the Target Temperature is rising, the Target Temperature must
rise above the Switch Set Point for the complete Switch Delay before the switching of the
lead group could take effect.
• Note that if the Switch Delay was set to 0.0 hours, the Mini-MOD-CNC will utilize it built-
in delays. These delays vary between 3 to 15 minutes based on the Boiler Types used.

Heavy load sequence 2nd group

Yes, No
Button: MENU/<System Startup>/..../Switch Delay/Heavy Load Seq#2 Group
• This option makes the second group of boilers act as a backup in heavy load conditions.
Thus, allowing them to start after all lead group boilers have run at their maximum capacity.
• If the system was designed to operate both groups of boilers in heavy load conditions, then
select Yes.
• Selecting No will only allow the lead group to operate. The secondary group will remain off
even if the system cannot reach the desired set point.

condensIng BoIler type

Modulating, Staging
Button: MENU/<System Startup>/..../Heavy Load Seq#2 Group/Condensing Boiler Type
• Select the appropriate boiler type from the list. Each of the types will be followed by a
related additional configuration settings to adjust.

condensIng and non-condensIng BoIler nuMBer

Adjustable from 1 to 15
Button: MENU/<System Startup>/..../Condensing Boiler Type/ Condensing Boiler Number
• Select the number of condensing boilers. These boilers will occupy the first letters of the
wiring stages on the Mini-MOD-CNC starting with Stage-A.
• Then, select the number of non-condensing boilers later in the Startup menu. See "Startup
Menu Sequence" on page 15.
Mini-MOD-CNC & Mini-Extension Installation Manual
Default: 5Fº / 3Cº
Default: 0.5 hours
Default: Yes
Default: Modulating
Default: 1
--- SWITCH DIFF ---
5 o
F
[
▲ ▼
BACK SAVE
--- SWITCH DELAY ---
0.5
Hour
[
▲ ▼
BACK SAVE
HEAVY LOAD
-SEQUENCE #2 GROUP-
No
Yes
▲ ▼
BACK SAVE
CONDENSING
---- BOILER TYPE ----
Modulating
Staging
▲ ▼
BACK SAVE
CONDENSING
-- BOILER NUMBER --
2
[
▲ ▼
BACK SAVE
