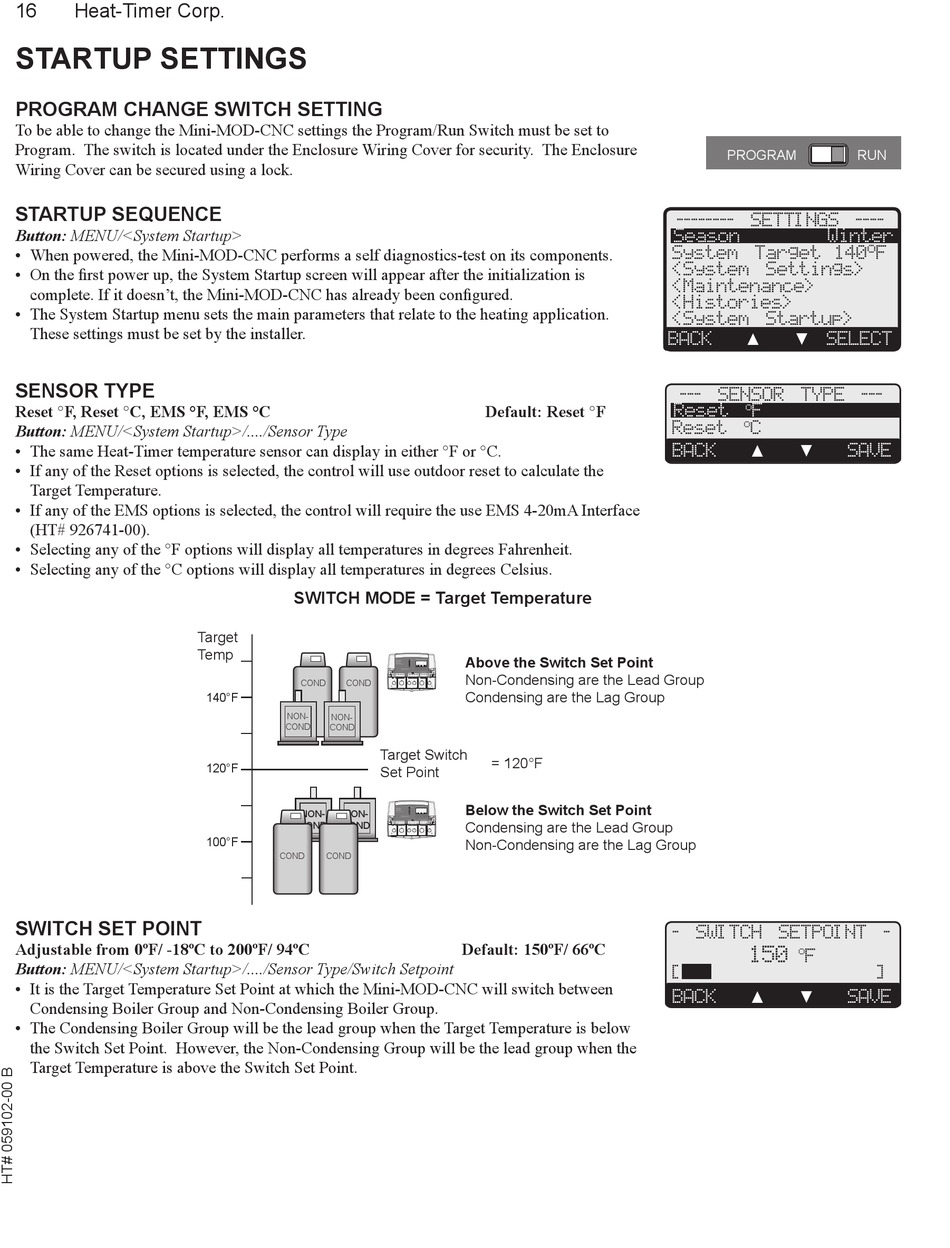

startup settIngs
prograM cHange sWItcH settIng
To be able to change the Mini-MOD-CNC settings the Program/Run Switch must be set to
Program. The switch is located under the Enclosure Wiring Cover for security. The Enclosure
Wiring Cover can be secured using a lock.
startup sequence
Button: MENU/<System Startup>
• When powered, the Mini-MOD-CNC performs a self diagnostics-test on its components.
• On the first power up, the System Startup screen will appear after the initialization is
complete. If it doesn't, the Mini-MOD-CNC has already been configured.
• The System Startup menu sets the main parameters that relate to the heating application.
These settings must be set by the installer.
sensor type
Reset °F, Reset °C, EMS °F, EMS °C
Button: MENU/<System Startup>/..../Sensor Type
• The same Heat-Timer temperature sensor can display in either °F or °C.
• If any of the Reset options is selected, the control will use outdoor reset to calculate the
Target Temperature.
• If any of the EMS options is selected, the control will require the use EMS 4-20mA Interface
(HT# 926741-00).
• Selecting any of the °F options will display all temperatures in degrees Fahrenheit.
• Selecting any of the °C options will display all temperatures in degrees Celsius.
sWItcH set poInt
Adjustable from 0ºF/ -18ºC to 200ºF/ 94ºC
Button: MENU/<System Startup>/..../Sensor Type/Switch Setpoint
• It is the Target Temperature Set Point at which the Mini-MOD-CNC will switch between
Condensing Boiler Group and Non-Condensing Boiler Group.
• The Condensing Boiler Group will be the lead group when the Target Temperature is below
the Switch Set Point. However, the Non-Condensing Group will be the lead group when the
Target Temperature is above the Switch Set Point.
SWITCH MODE = Target Temperature
Target
Temp
COND
COND
140°F
NON-
NON-
COND
COND
120°F
NON-
NON-
COND
COND
100°F
COND
COND
SWITCH MODE = Outdoor Temperature
Outdoor
Temp
NON-
NON-
COND
COND
50°F
