ModulatIng and sequencIng BoIlers

dIrect HeatIng pIpIng dIagraM

120VAC
Boiler 1
Condensing
Modulating
system:

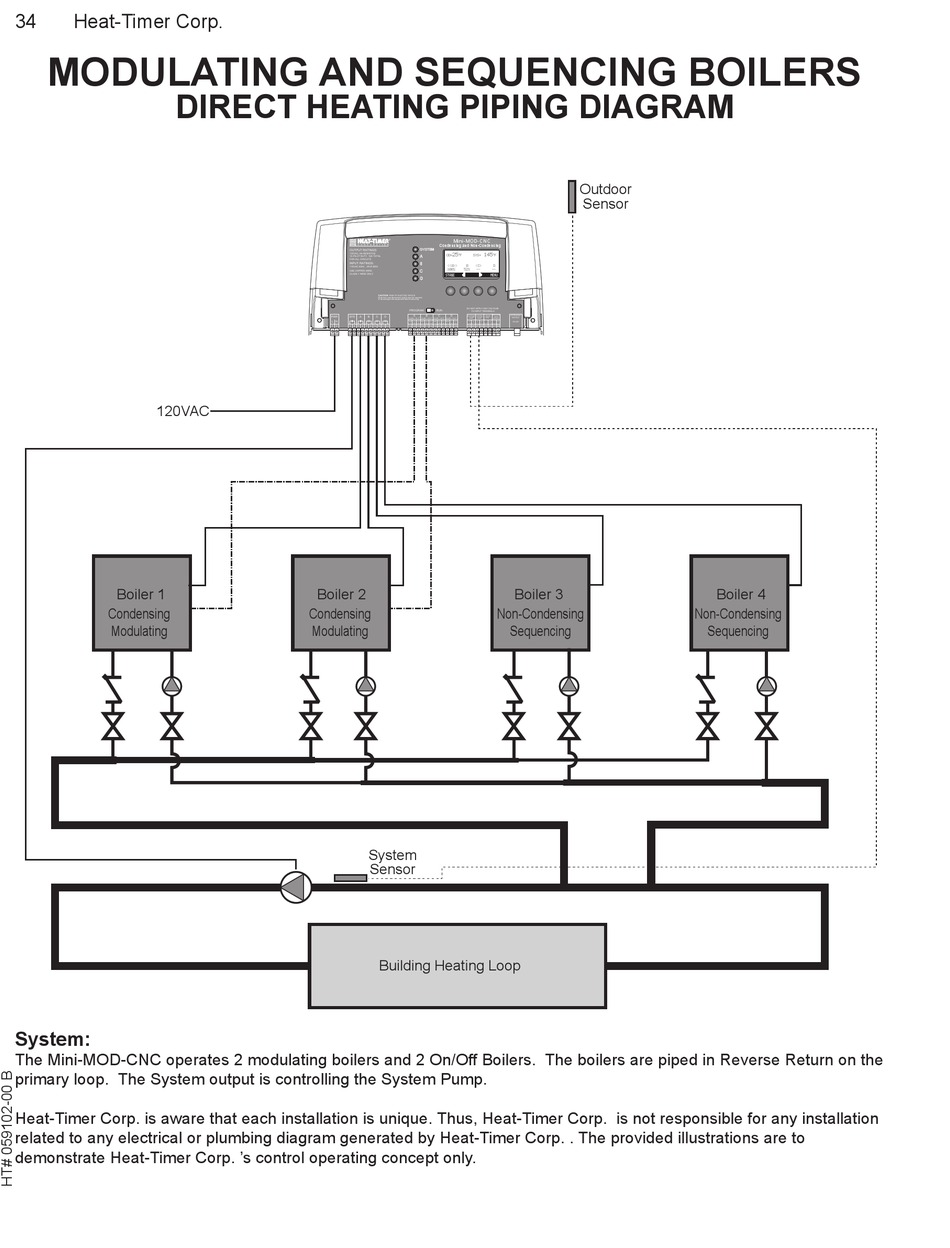

The Mini-MOD-CNC operates 2 modulating boilers and 2 On/Off Boilers. The boilers are piped in Reverse Return on the
primary loop. The System output is controlling the System Pump.
Heat-Timer Corp. is aware that each installation is unique. Thus, Heat-Timer Corp. is not responsible for any installation
related to any electrical or plumbing diagram generated by Heat-Timer Corp. . The provided illustrations are to
demonstrate Heat-Timer Corp. 's control operating concept only.
