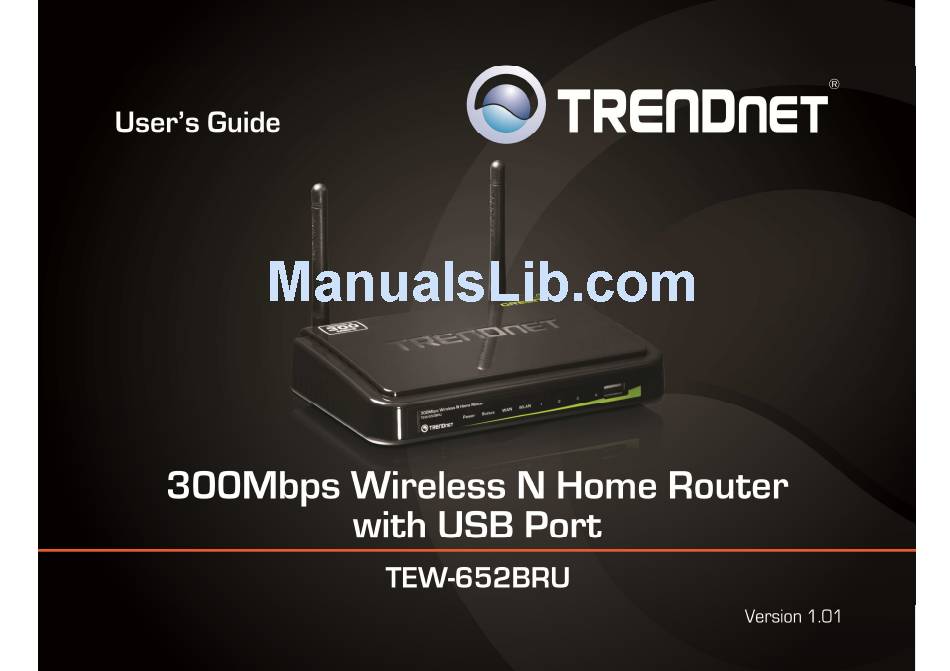

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Table of Contents TRENDnet User’s Guide Contents Product Overview ................1 Basic Router Setup ................5 Wireless Networking and Security ..........12 Access Control Filters ..............21 Router Maintenance & Monitoring ..........40 Advanced Router Setup ..............26...
  • Page 3 Table of Contents TRENDnet User’s Guide USB Storage and Printer Sharing ............ 49 Router Management Page Structure..........59 Technical Specifications ..............60 Troubleshooting ................61 Appendix ..................62...

  • Page 4: Product Overview

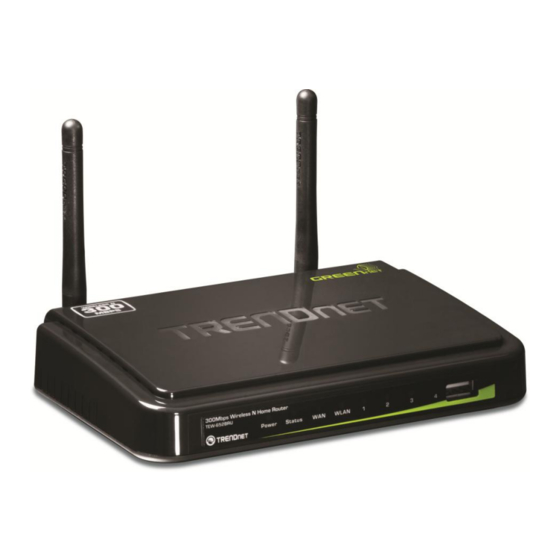

    TEW-652BRU TRENDnet User’s Guide Product Overview Features • • • • • • • TEW-652BRU • • • Package Contents • • • • • • • •...
  • Page 5 TEW-652BRU TRENDnet User’s Guide Product Hardware Features Rear Panel View • Reset Button • LAN Ports • WAN Port • Power Port Note: Use only the adapter that came with your router. • On/Off Power Switch • Antennas...
  • Page 6 TEW-652BRU TRENDnet User’s Guide Front Panel View • Power • Status • WAN (Link/Activity) • WLAN (Link/Activity) • LAN 1-4 (Link/Activity) • USB Port 2.0 Port –...
  • Page 7 TEW-652BRU TRENDnet User’s Guide Application Diagram Side Panel View • WPS (Wi-Fi Protected Setup)

  • Page 8: Basic Router Setup

    TEW-652BRU TRENDnet User’s Guide Basic Router Setup Creating a Home Network How to setup your router • Modem Where to find more help • Router • • Switch • • How to set up a home network • • •...

  • Page 9: Router Installation

    TEW-652BRU TRENDnet User’s Guide Router Installation 5. PPTP or Russian PPTP Before you Install 1. Obtain IP Address Automatically (DHCP) 6. L2TP or Russia L2TP 2. Fixed IP address 3. PPPoE to obtain IP automatically 7. Russia PPPoE 4. PPPoE with a fixed IP address...
  • Page 10 TEW-652BRU TRENDnet User’s Guide Hardware Installation Power Status WLAN...
  • Page 11 TEW-652BRU TRENDnet User’s Guide Setup Wizard Note: If the Setup Wizard does not automatically appear, click Wizard. admin admin Note: Once you change the login password, it will be required every time you log into your router.
  • Page 12 TEW-652BRU TRENDnet User’s Guide Next. Note: Each Internet connection type may have different options. Next Note: If you are an advanced user, you can make LAN IP address interface and DHCP IP address range changes here. Wireless LAN: Note: Selecting Disable will disable the wireless functionality of the router and will not...
  • Page 13 TEW-652BRU TRENDnet User’s Guide SSID: Next Note: 1. To protect your network from unauthorized access, it is recommended to enable wireless encryption. See “Secure your wireless network” on page 13) for information on configuring wireless security. 2. Once wireless security is enabled on your router, each wireless device connecting to your router must be configured with the same wireless security type and key.
  • Page 14 TEW-652BRU TRENDnet User’s Guide Connect additional wired devices to your network Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured to obtain IP address settings automatically (also called dynamic IP address or DHCP) and to Obtain DNS Server address settings automatically.

  • Page 15: Wireless Networking And Security

    TEW-652BRU TRENDnet User’s Guide Wireless Networking and Security How to choose the type of security for your wireless network Security Comparison WPA2 Wireless Standard Performance Strength Additional Options Recommended Configuration • WEP: • WPA: • WPA2: Note: Check the specifications of your wireless network adapters and wireless appliances...

  • Page 16: Secure Your Wireless Network

    TEW-652BRU TRENDnet User’s Guide Secure your wireless network Apply Wireless > Security Wireless Security Authentication Type • Open System Shared Key Note: It is recommended to use Open System because it is known to be more secure than Shared Key.
  • Page 17 TEW-652BRU TRENDnet User’s Guide WPA2 WPA2 WPA2 PSK Apply Apply Note: It is recommended to choose the specific security type WPA or WPA2, instead of choosing WPA-AUTO. • PSK/EAP Note: It is recommended to use PSK because it is easier to setup and simply requires you to create a passphrase compared to EAP which requires you to connect an external RADIUS server and requires more configuration.
  • Page 18 TEW-652BRU TRENDnet User’s Guide Connect wireless devices to your router Connect wireless devices using WPS • Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled. • • • • • •...
  • Page 19 TEW-652BRU TRENDnet User’s Guide PBC (Software/Virtual Push Button) PIN (Personal Identification Number) Wireless > WiFi Protected Setup Wireless > WiFi Protected Setup Wireless Wireless Client PIN Number Push Start PIN Button Configuration Start PBC Note: You may need to initiate the WPS PIN on your wireless device first when using this...
  • Page 20 TEW-652BRU TRENDnet User’s Guide Basic wireless settings • Wireless > Basic Auto Channel • Channel Auto Channel, • 802.11 Mode 2.4GHz 802.11b/g/n mixed mode Wireless Basic Apply 2.4GHz 802.11b/g mixed mode 2.4GHz 802.11n only mode • Wireless Enabled 2.4GHz 802.11g only mode Disabled 2.4GHz 802.11b only mode...
  • Page 21 TEW-652BRU TRENDnet User’s Guide Note: Please check the specifications on your wireless devices for the highest wireless • SSID Broadcast Enabled capability supported first before applying these settings. If you are unsure, it is recommended that you keep the default setting for the best compatibility.
  • Page 22 TEW-652BRU TRENDnet User’s Guide Steps to improve wireless connectivity...
  • Page 23 TEW-652BRU TRENDnet User’s Guide • Fragmentation Threshold Advanced wireless settings Wireless > Advanced • DTIM Interval • Beacon Interval • RTS Threshold...

  • Page 24: Access Control Filters

    TEW-652BRU TRENDnet User’s Guide • Name Access Control Filters • MAC Address 00-11-22-AA-BB-CC) Access control basics Access > Filter Note: You can check the Dynamic DHCP List for the MAC addresses of the devices on your network, see “Set up the DHCP server on your router” on...
  • Page 25 TEW-652BRU TRENDnet User’s Guide Domain/URL Filters • Disabled Access > Filter > Domain/URL Blocking • Allow • www.trendnet.com, etc.) Deny Note: Do not configure this setting until you have added the MAC addresses to the MAC Table first. The recommended option is to only Allow access to the MAC addresses listed and deny all others unlisted.
  • Page 26 TEW-652BRU TRENDnet User’s Guide Apply Protocol/IP filters Access > Filter > Protocol/IP Filters Domains List www.trendnet.com) trendnet Access Filter Protocol/IP Filters • Cancel • Delete Delete • Enabled Enabled Disabled • Name...
  • Page 27 TEW-652BRU TRENDnet User’s Guide • Protocol TCP, UDP • Port 80-80 • IP Range 192.168.10.20-192.168.10.20 192.168.10.20-192.168.10.30) Note: The filter will not be applied to IP addresses outside of the range specified. Access Filter Firewall Rule • • Delete • Update •...
  • Page 28 TEW-652BRU TRENDnet User’s Guide • Enabled Enabled Disabled • Name • Action Allow Deny • Source Interface IP Range Start • 192.168.1.20) • IP Range End Update 192.168.1.30 • Delete Note: The IP Range Start and End specify the range of IP addresses •...
  • Page 29 TEW-652BRU TRENDnet User’s Guide Advanced Router Setup Change your router login password Main > Password Access your router management page Note: Your router management page http://192.168.10.1 is accessed through the use of your Internet web browser (e.g. Internet Explorer, Firefox, Chrome, Safari, Opera) and will be referenced frequently in this User’s Guide.

  • Page 30: Manually Configure Your Internet Connection

    TEW-652BRU TRENDnet User’s Guide User (Optional): Local Time Local Time Set your router date and time Main > Time Main Time Time Zone Time Zone Synchronize the clock with Manually configure your Internet connection • Manual Set Time Main > WAN Apply Note: Time is specified in 24-hour format.
  • Page 31 TEW-652BRU TRENDnet User’s Guide Note: For many ISPs that provide dynamic IP addresses automatically, typically, the stored MAC address in the modem is reset each time you restart the modem. If you are installing this router for the first time, turn your modem before connecting the router to Apply your modem.

  • Page 32: Change Your Router Ip Address

    TEW-652BRU TRENDnet User’s Guide Apply Change your router IP address Main > LAN & DHCP Server Note: You will need to access your router management page using your new router IP address to access the router management page. (e.g Instead of using the default http://192.168.10.1...

  • Page 33: Set Up Dhcp Reservation

    TEW-652BRU TRENDnet User’s Guide • Domain Name (Optional) Set up DHCP reservation trendnet.com Main > LAN & DHCP Server • Lease Time Note: The DHCP lease time is the amount of time a computer or device can keep an IP address assigned by the DHCP server. When the lease time expires, the computer...
  • Page 34 TEW-652BRU TRENDnet User’s Guide • Management Remote Management UPnP Enabled Disabled Note: It is recommended to leave this setting enabled, otherwise, you may encounter Static DHCP List issues with applications that utilize UPnP in order allow the required communication between your computers or devices and the Internet.

  • Page 35: Identify Your Network On The Internet

    TEW-652BRU TRENDnet User’s Guide PPTP, L2TP, or IPsec Identify your network on the Internet Enabled Disabled Main > Dynamic DNS Note: It is recommended to leave these settings enabled. Apply Note: First, you will need to sign up for one of the DDNS service providers listed in the Server Address drop-down list.
  • Page 36 TEW-652BRU TRENDnet User’s Guide Allow remote access to your router management page Open a device on your network to the Internet Management > Remote Management Access > DMZ Management Remote Management insecure virtual server HTTP Enabled • Port Note: If you have configured port 8080 for another configuration section such as virtual server or special application, please change the port to use.
  • Page 37 TEW-652BRU TRENDnet User’s Guide Virtual Server Access > Virtual Server • Enabled Enabled Disabled • Name • Protocol TCP UDP Both Access Virtual Server Note: Please refer to the device documentation to determine which ports and protocols are required. •...
  • Page 38 TEW-652BRU TRENDnet User’s Guide Enabled Name Example: To forward TCP port 80 to your network/IP camera Protocol Private Port Public Port Note: You may need to reference your camera documentation on configuring a static IP address. LAN Server 192.168.10.101 Update.
  • Page 39 TEW-652BRU TRENDnet User’s Guide Protocol TCP, UDP Both UDP. Port Range Access Special AP 554-554 or 6112-6112). Note: Please refer to the device documentation to determine which ports and protocols are required. • Incoming Protocol TCP, Both UDP. Port Range 2000-2038,2069,2081,2200-2210).
  • Page 40 TEW-652BRU TRENDnet User’s Guide Change your router IP address Add static routes to your router Main > LAN & DHCP Server Routing > Static Note: If you are not encountering any issues or are not faced with one of the cases...
  • Page 41 TEW-652BRU TRENDnet User’s Guide Routing Static • Update • Delete • Cancel • Network Address 192.168.20.0 • Network Mask 255.255.255.0 • Gateway Address 192.168.10.2 • Interface • Metric 1-15 •...
  • Page 42 TEW-652BRU TRENDnet User’s Guide • Receive Enable dynamic routing on your router Routing > Dynamic Disabled RIP 1 RIP 2 Note: Configuring this feature assumes that you have some general networking knowledge. Apply Cancel Routing Dynamic • Transmit Disabled RIP 1...

  • Page 43: Router Maintenance & Monitoring

    TEW-652BRU TRENDnet User’s Guide Router Default Settings Router Maintenance & Monitoring Administrator User Name Reset your router to factory defaults Administrator Password Tools > Settings Router IP Address Router Subnet Mask DHCP Server IP Range Wireless SSID (wireless network name) •...
  • Page 44 TEW-652BRU TRENDnet User’s Guide Restore Configuration Settings Load Settings Backup and restore your router configuration settings Browse Choose File Tools > Settings To backup your router configuration: Tools Settings cfg.bin Save Configuration Settings Save Settings Save Load cfg.bin cfg.bin) To restore your router configuration:...
  • Page 45 TEW-652BRU TRENDnet User’s Guide Upgrade your router firmware Tools > Firmware Status Device Information Tools Firmware Upgrade Firmware Browse Choose File Please note the following: • • .bin • Upgrade • •...

  • Page 46: Restart Your Router

    TEW-652BRU TRENDnet User’s Guide Restart your router Check connectivity using the router management page Tools > Restart Tools > Ping Test • Disconnect the power adapter Tools Ping Test 192.168.10.101 trendnet.com • Router Management Page Ping success fail Tools Restart...
  • Page 47 TEW-652BRU TRENDnet User’s Guide • Check the router system information IP Address Status > Device Information • Subnet Mask • Default Gateway • DNS (Domain Name System) Status Device Information • Firmware Version • Router Up Time Wireless Information •...
  • Page 48 TEW-652BRU TRENDnet User’s Guide Status Wired LAN Information • Time • MAC Address • Type • Message • IP Address • Subnet Mask • DHCP Server Router Log Navigation • First Page • Last Page • Previous Page Page: 1/1 •...

  • Page 49: Configure Your Router Log

    TEW-652BRU TRENDnet User’s Guide • Configure your router log Email Log Now Status > Log Setting • Email Logs When log is full Send router logs to your e-mail address Status Log Setting • SMTP Authentication Enabled Disabled Note: •...
  • Page 50 TEW-652BRU TRENDnet User’s Guide Status Log Setting View your router packet statistics Status > Statistics Syslog Server Status Statistic Apply Set the types or categories to include in logging View wireless devices connected to your router Status > Wireless Status...
  • Page 51 TEW-652BRU TRENDnet User’s Guide Capture packets using the router management page Enable SNMP on your router Management > Capture Packets Management > SNMP Management SNMP Management Capture Packets Network Interface • SNMP Enabled • System Location • System Contact •...

  • Page 52: Software Installation

    TEW-652BRU TRENDnet User’s Guide Software Installation USB Storage and Printer Sharing Windows OS Note: The USB Control Center Utility is required to be installed on every computer that Run Autorun.exe will be accessing the USB devices connected to your network. The utility will only allow Note: If the Autorun prompt does not appear automatically, open the CD contents and one computer to connect to a USB device at any given time.
  • Page 53 TEW-652BRU TRENDnet User’s Guide Next. Next. Next Install...
  • Page 54 MAC OS X Finish Note: If you leave the “Launch TRENDnet USB Control Center Utility” option checked, this will automatically start the utility after you click “Finish”. If the option is unchecked, it will not start automatically and you will need to manually start the utility.

  • Page 55: Using The Utility

    TEW-652BRU TRENDnet User’s Guide Using the Utility Windows OS – Launching the Utility Exit System > Exit Restart MAC OS X – Launching the Utility...
  • Page 56 TEW-652BRU TRENDnet User’s Guide • Tools (Windows Only) Configuration Automatically execute when Note: Please refer to “Product Hardware Features” on page 2 for location of USB port. logging on Windows Windows OS - Utility Main Window Auto-Connect Printer List Delete Close MAC OS X –...
  • Page 57 TEW-652BRU TRENDnet User’s Guide Disconnect Windows OS Note: The utility will only allow one computer to connect to one USB device at any given MAC OS X time, therefore, a computer must disconnect from the USB device first before another computer can connect to it.
  • Page 58 TEW-652BRU TRENDnet User’s Guide Sending a Request to Connect Windows OS Request to Connect Windows OS MAC OS X Request to Connect Windows OS MAC OS X • Accept – • Reject...
  • Page 59 TEW-652BRU TRENDnet User’s Guide MAC OS X • Accept – Request to Connect Close • Reject...
  • Page 60 TEW-652BRU TRENDnet User’s Guide Connect to a Printer Note: This function applies to stand-alone USB printers or USB multi-function printers. It is required that the printer drivers are installed before your computer is able to print. Please ensure the printer drivers are installed. If the printer drivers are not installed,...
  • Page 61 TEW-652BRU TRENDnet User’s Guide Connect to a Scanner Connect to a Storage Device Note: This function applies to stand-alone USB scanners or USB scanners included with multi-function printers. It is required that the scanner drivers are installed before your computer is able to scan. Please ensure the scanner drivers are installed. If the scanner drivers are not installed, please refer to your printer manufacturer website or documentation on where to download and how to install the scanner drivers.

  • Page 62: Router Management Page Structure

    TEW-652BRU TRENDnet User’s Guide Router Management Page Structure Main Routing Tools • • • • • • • • Access • • • • • • Wireless • Wizard • • • • • • • • Management Status •...

  • Page 63: Technical Specifications

    TEW-652BRU TRENDnet User’s Guide Technical Specifications Humidity Certifications Hardware Wireless Standards Modulation Frequency Antenna Media Access Protocol WPS Button Data Rate Utility OS Compatibility Connection Type Security Output Power SNMP Receiving Sensitivity Internet Access Control Channels Logging LED Indicator Power Switch...

  • Page 64: Troubleshooting

    TEW-652BRU TRENDnet User’s Guide Q: I am not sure what type of Internet Account Type I have for my Cable/DSL Troubleshooting connection. How do I find out? Answer: Q: I typed http://192.168.10.1 in my Internet Browser Address Bar, but an error message says “The page cannot be displayed.”...

  • Page 65: Appendix

    TEW-652BRU TRENDnet User’s Guide Note: If you are experiencing difficulties, please contact your computer or operating Appendix system manufacturer for assistance. How to find your IP address? Note: Please note that although the following procedures provided to follow for your...
  • Page 66 TEW-652BRU TRENDnet User’s Guide Configure IPv4 Using How to connect to a wireless network using the built-in Windows utility? DHCP Apply Now Note: Please note that although the following procedures provided to follow for your Configure Using DHCP operating system on configuring your network settings can be used as general guidelines,...
  • Page 67 TEW-652BRU TRENDnet User’s Guide Federal Communication Commission Interference Statement Europe – EU Declaration of Conformity EN60950-1: 2006 + A11 : 2009 + A1 : 2010 EN 50385: 2002 • EN 300 328 V1.7.1 (2006-10) • • • EN 301 489-1 V1.8.1 (2008-04) EN 301 489-17 V2.1.1 (2009-05)
  • Page 68 TEW-652BRU TRENDnet User’s Guide...
  • Page 69 Limited Warranty TRENDnet User’s Guide Limited Warranty Governing Law WARRANTIES EXCLUSIVE...
