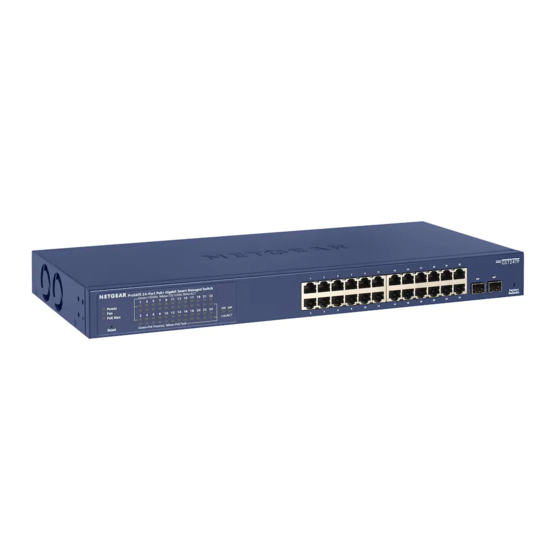

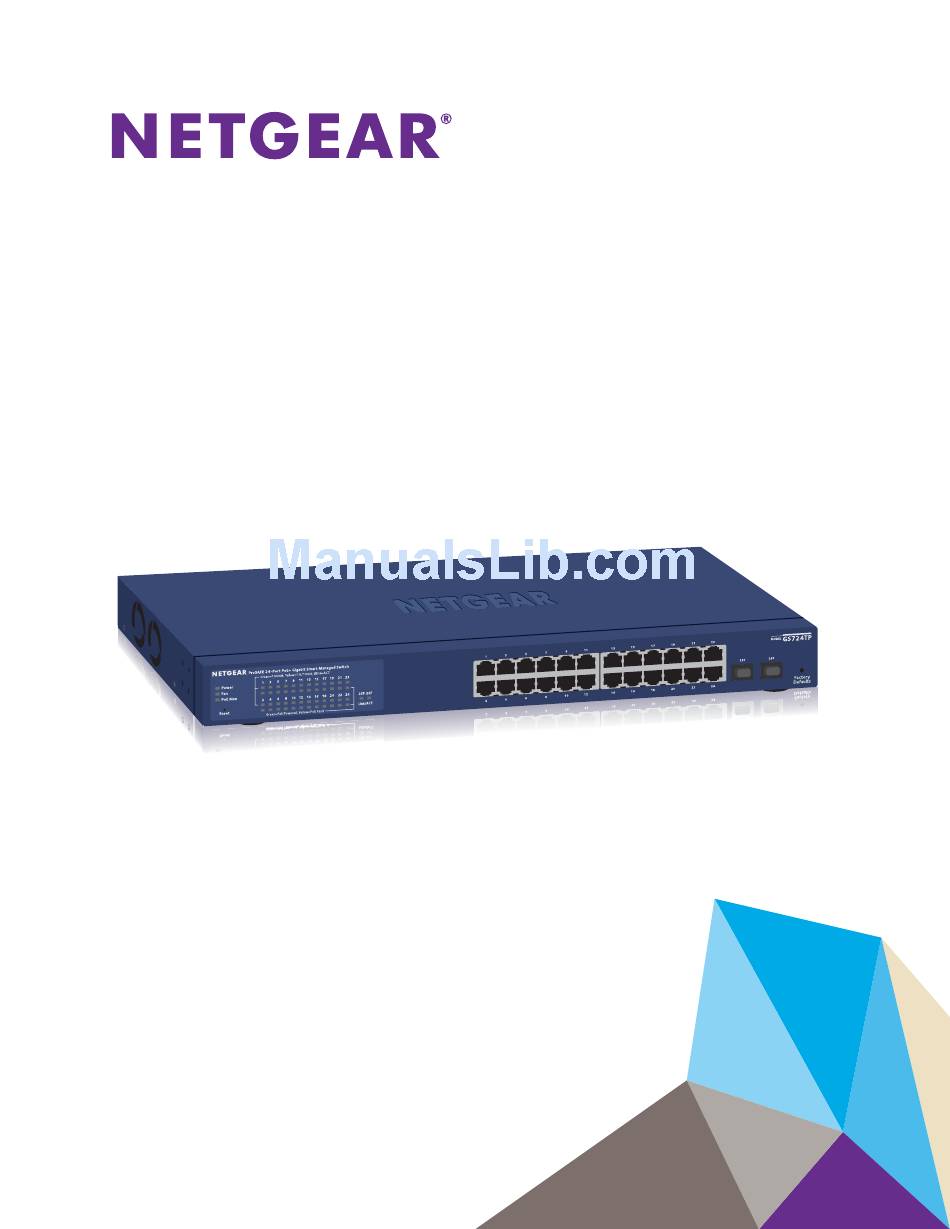

Page 1 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Us e r Manual June 2017 202-11765-01 350 East Plumeria Drive San Jose, CA 95134...
Page 2 Thank you for purchasing this NETGEAR product. You can visit www.netgear.com/support to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources. Conformity For the current EU Declaration of Conformity, visit http://kb.netgear.com/app/answers/detail/a_id/11621.
Page 3: Table Of Contents
Contents Chapter 1 Get Started Switch Management Interface Overview ....... . 9 Change the Default IP Address of the Switch .
Page 4 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure SNMPv1/v2 Trap Flags ........68 View the Supported MIBs .
Page 5 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 IGMP Snooping Overview ......... 133 Configure IGMP Snooping .
Page 6 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Access Control ......... 200 Configure Access Rule Settings .
Page 7 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Download a File to the Switch Using TFTP ......280 Download a File to the Switch Using HTTP .
Page 8: Chapter 1 Get Started
Get Started This manual describes how you can configure and operate the NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports, Model GS724TPv2 by using the web-based management interface. The manual describes the software configuration procedures and explains the options that are available within those procedures.
Page 9: Switch Management Interface Overview
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Switch Management Interface Overview The switch provides administrative management options that let you configure, monitor, and control the network. Using the web browser–based management interface, you can configure...
Page 10: Discover A Switch In A Network With A Dhcp Server
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Discover a Switch in a Network With a DHCP Server This section describes how to set up your switch in a network that includes a DHCP server.
Page 11: Discover A Switch In A Network Without A Dhcp Server
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The Smart Control Center launches a browser that displays the login page of the selected device. Use your web browser to manage your switch. The default password is password. For...
Page 12: Configure The Network Settings On Your Computer
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Type your password to continue with the configuration change. Tip: You must enter the current password each time that you use the Smart Control Center to update the switch settings. The default password is password.
Page 13 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 following procedures show how to change the static IP address on a computer running a Microsoft Windows 7.  To modify the network settings on your computer: Open the Control Panel and click the Network and Sharing Center option.
Page 14 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 WARNING: When you change the IP address of your administrative system, you lose your connection to the rest of the network. Be sure to write down your current network address settings before you change them.
Page 15: Access The Web Browser-Based Management Interface
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Access the Web Browser–Based Management Interface You must be able to ping the IP address of the switch from your administrative system for web access to be available. If you used the Smart Control Center to set up the IP address and subnet mask, either with or without a DHCP server, use that IP address in the address field of your web browser.
Page 16: Supported Web Browsers
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Supported Web Browsers The following browsers were tested and support the web browser–based management interface. Later browser versions might function fine but were not tested. The supported web browsers include the following: •...
Page 17: Navigation Tabs, Configuration Menus, And Page Menu
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Help page Navigation tab Configuration menus Logout button Help link Buttons Configuration pages Configuration status and options Navigation Tabs, Configuration Menus, and Page Menu The navigation tabs along the top of the web interface give you quick access to the various switch functions.
Page 18: Configuration And Status Options
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configuration and Status Options The area directly under the configuration menus and to the right of the links displays the configuration information or status for the page you select. On pages that contain configuration options, you might be able to enter information into fields, select options from menus, select check boxes, and select radio buttons.
Page 19: Web Browser-Based Management Interface Device View
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Web Browser–Based Management Interface Device View The Device View displays the ports on the switch. This graphic tool provides an alternate way to navigate to configuration and monitoring options. The graphic tool also provides information about device ports, configuration and status, tables, and feature components.
Page 20 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 You can select a menu option to access the page that contains the configuration or monitoring options. If you right-click the graphic, but do not right-click a specific port, the main menu displays.
Page 21: Interface Naming Conventions
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Interface Naming Conventions The switch supports physical and logical interfaces. Interfaces are identified by their type and the interface number. The physical ports are Gigabit interfaces and are numbered on the front panel.
Page 22 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Use these links as follows: • To display all ports, click the 1 link. • To display all LAGs, click the LAG link. • To display all ports and LAGs, click the All link.
Page 23 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the desired settings. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.  To configure a single port: Ensure that the page is displaying all ports, and not only the LAGs.
Page 24 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the desired settings. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.  To configure multiple LAGs: Click the LAG link or the All link to display the LAGs.
Page 25: Context-Sensitive Help And Access To The Support Website
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  To configure all LAGs: Click the LAG link to display only the LAG interfaces. Select the check box in the heading row. The check box associated with every LAG is selected, and the rows for all LAGs are highlighted.
Page 26: User Guide
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  To access the support website from the web browser–based management interface: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 27: Register Your Product
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 To access the NETGEAR download center, click the Apply button. Enter the model number of the switch. Locate the user manual on the product support web page.
Page 28: Chapter 2 Configure System Information
Configure System Information This chapter contains the following sections: • View and Configure the Switch Management Settings • Use the Device View • Configure PoE • Configure SNMP • Configure LLDP • Configure DHCP Snooping • Set Up PoE Timer Schedules...
Page 29: View And Configure The Switch Management Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View and Configure the Switch Management Settings This section describes how you can display the switch status and specify some basic switch information, such as the management interface IP address, system clock settings, and DNS information.
Page 30 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Define the following fields: • System Name. Enter the name to identify this switch. You can use up to 255 alphanumeric characters. The default is blank.
Page 31: Configure The Switch Ip Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 To refresh the page, click the Update button. The following table describes the nonconfigurable information displayed in the Versions section of the System Information page.
Page 32 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Dynamic IP Address (BOOTP). Specifies that the switch must obtain the IP address through a BootP server. • Static IP Address. Specifies that the IP address, subnet mask, and default gateway must be manually configured.
Page 33: Configure The Ipv6 Network Interface
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the IPv6 Network Interface You can configure the IPv6 network interface, which is the logical interface used for in-band connectivity with the switch through all of the switch’s front-panel ports. The configuration parameters associated with the switch’s network interface do not affect the configuration of...
Page 34: View The Ipv6 Network Neighbor
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 b. In the EUI64 menu, select True to enable the Extended Universal Identifier (EUI) flag for IPv6 address, or select False to omit the EUI flag.
Page 35: Configure The Time Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 4. IPv6 network interface neighbor table information (continued) Field Description IsRtr • true (1). The neighbor machine is a router. • false (2). The neighbor machine is not a router.
Page 36 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select the Clock Source Local radio button. In the Date field, specify the current date in months, days, and years (MM/DD/YYYY). In the Time field, specify the current time in hours, minutes, and seconds (HH:MM:SS).
Page 37 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The page refreshes and displays the SNTP Global Configuration section and the SNTP Global Status section. The default is SNTP. The local clock can be set to SNTP only if the following two conditions are met: •...
Page 38 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 You can also specify the number of hours and number of minutes that the time zone is different from the Coordinated Universal Time (UTC). The time zone can affect the display of the current system time.
Page 39 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select a Client mode radio button to specify the mode of operation of the SNTP client: • Disable. SNTP is not operational. No SNTP requests are sent from the client and no received SNTP messages are processed.
Page 40 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The allowed range is 1 to 30. The default is 5. In the Unicast Poll Retry field, specify the number of times to retry a unicast poll request to an SNTP server after the first time-out before the switch attempts to use the next configured server.
Page 41 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select System > Management > Time > Time Configuration > SNTP Global Status.
Page 42 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 5. SNTP Global Status information (continued) Field Description Last Attempt Status The status of the last SNTP request or unsolicited message for both unicast and broadcast modes.
Page 43 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following is an example of strata: • Stratum 0. A real-time clock is used as the time source, for example, a GPS system. •...
Page 44 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select System > Management > Time > SNTP Server Configuration. From the Server Type menu, select the type of SNTP address to enter in the address field.
Page 45 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The SNTP Server Status table displays status information about the SNTP servers configured on your switch. The following table describes the fields in the SNTP Server Status table.
Page 46 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select System > Management > Time > SNTP Server Configuration. The SNTP Server Configuration page displays.
Page 47 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  To configure the daylight saving time settings: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 48 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. The fields that are described in the following table are visible on the page only if the DayLight Saving (DST) Recurring, Recurring EU, or Recurring USA radio button is selected.
Page 49 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 8. Daylight saving setting is Non Recurring (continued) Field Description Offset Specify the number of minutes to shift the summer time from the standard time.
Page 50: Configure Denial Of Service Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table displays the nonconfigurable information on the page. Table 9. Daylight Saving (DST) Status information Field Description Daylight Saving (DST) The Daylight Saving value, which is one of the following: •...
Page 51 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select System > Management > Denial of Service > Auto-DoS Configuration. The Auto-DoS Configuration page displays.
Page 52: Configure Dns Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select the types of DoS attacks for the switch to monitor and block and configure any associated values: • Denial of Service ICMPv4. Enabling ICMPv4 DoS prevention causes the switch to drop ICMPv4 packets with a type set to ECHO_REQ (ping) and a size greater than the configured ICMPv4 packet size.
Page 53 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select the Disable or Enable radio button to specify whether to disable or enable the administrative status of the DNS client. • Enable. Allow the switch to send DNS queries to a DNS server to resolve a DNS domain name.
Page 54 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the fields that are shown in the DNS Server Configuration table. Table 10. DNS Server Configuration information Field Description The identification of the DNS Server.
Page 55 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Remove an Entry From the Dynamic Host Mapping Table  To remove an entry from the dynamic host mapping table: Connect your computer to the same network as the switch.
Page 56: Configure Green Ethernet Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select the check box next to the entry to update. Enter the new information in the appropriate field. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.
Page 57 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select the EEE Mode Disable or Enable radio button. Energy Efficient Ethernet (EEE) combines the MAC with a family of physical layers that support operation in a low-power mode. It is defined by IEEE 802.3az Energy Efficient Task Force.
Page 58: Use The Device View
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select one or more interfaces by taking one of the following actions: • To configure a single interface, select the check box associated with the port, or type the port number (for example, g1) in the Go To Interface field and click the Go button.
Page 59: Configure Poe Trap Settings And View Poe Information
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 sure that the devices connected to the higher-priority, lower-numbered PoE ports are supported first. Although a device is listed as an 802.3at PoE+-powered or 802.3af PoE-powered device, it might not require the maximum power limit that is specified by its IEEE standard.
Page 60: Configure The Poe Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable fields on the page. Table 12. PoE Configuration fields Field Description Firmware Version The firmware version of the PoE firmware component.
Page 61 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select one or more ports by taking one of the following actions: • To configure a single port, select the check box associated with the port, or type the port number (for example, g1) in the Go To Interface field and click the Go button.
Page 62 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 For information about setting up and configuring PoE timer schedules, see Set Up PoE Timer Schedules on page 87. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.
Page 63: Configure Snmp
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure SNMP You can configure SNMP settings for SNMPv1/v2 and SNMPv3. The switch supports the configuration of SNMP groups and users that can manage traps that the SNMP agent generates.
Page 64 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Together, the management station IP and the management station IP mask denote a range of IP addresses from which SNMP clients can use that community to access this device.
Page 65: Configure Snmpv1/V2 Trap Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. Delete an SNMP Community  To delete an SNMP community: Connect your computer to the same network as the switch.
Page 66 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The login window opens. Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select System > SNMP > SNMP V1/V2 > Trap Configuration.
Page 67 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select System > SNMP > SNMP V1/V2 > Trap Configuration. The Trap Configuration page displays. Select the check box next to the recipient.
Page 68: Configure Snmpv1/V2 Trap Flags
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure SNMPv1/v2 Trap Flags You can enable or disable traps that the switch can send to an SNMP manager. When the condition identified by an active trap is encountered by the switch, a trap message is sent to any enabled SNMP trap receivers, and a message is written to the trap log.
Page 69: View The Supported Mibs
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View the Supported MIBs You can view a list of all MIBs that are supported by the switch.  To view the supported MIBs: Connect your computer to the same network as the switch.
Page 70: Configure Snmp V3 Users
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure SNMP V3 Users Any user can connect to the switch using the SNMPv3 protocol, but for authentication and encryption, the switch supports only one user (admin). Therefore, you can create or modify only one profile.
Page 71: Configure Lldp
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure LLDP The IEEE 802.1AB-defined standard, Link Layer Discovery Protocol (LLDP), allows stations on an 802 LAN to advertise major capabilities and physical descriptions. This information is viewed by a network manager to identify system topology and detect bad configurations on the LAN.
Page 72 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 73: Configure Lldp Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure LLDP Port Settings You can specify per-interface LLDP settings.  To configure the LLDP interface: Connect your computer to the same network as the switch.
Page 74: View Lldp-Med Network Policy Information
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Tx and Rx. Enable both transmitting and receiving LLDP PDUs on the selected ports. Disabled. Do not transmit or receive LLDP PDUs on the selected ports.
Page 75 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select System > LLDP > Advanced > LLDP-MED Network Policy. The LLDP-MED Network Policy page displays. From the Interface menu, select the interface for which you want to view the information.
Page 76: Configure Lldp-Med Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure LLDP-MED Port Settings You can enable LLDP-MED mode on an interface and configure its properties.  To configure LLDP-MED settings for a port: Connect your computer to the same network as the switch.
Page 77: View Local Lldp Information
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View Local LLDP Information You can view the data that each port advertises through LLDP.  To view local LLDP information: Connect your computer to the same network as the switch.
Page 78 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Field Description System Capabilities The primary functions that the switch supports. Interface The interface associated with the rest of the data in the row. Port ID Subtype The type of information used to identify the interface in the Port ID field.
Page 79: View Lldp Neighbors Information
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Field Description Network Policies Application Type The media application type associated with the policy. VLAN ID The VLAN ID associated with the policy. VLAN Type Specifies whether the VLAN associated with the policy is tagged or untagged.
Page 80 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the information that displays for all LLDP neighbors that were discovered. Field Description MSAP Entry The Media Service Access Point (MSAP) entry number for the remote device.
Page 81 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Field Description Managed Addresses Address SubType The type of the management address. Address The advertised management address of the remote system. Interface SubType The port subtype.
Page 82: Configure Dhcp Snooping
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Field Description Location Information Civic The physical location, such as the street address, that the remote device advertised in the location TLV, for example, 123 45th St. E. The field value length range is 6–160 characters.
Page 83 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the Global DHCP Snooping Settings You can view and configure the global settings for DHCP snooping.  To configure the global DHCP snooping settings: Connect your computer to the same network as the switch.
Page 84: Interface Configuration
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enable DHCP for All Interfaces in a VLAN  To enable DHCP snooping for all interfaces that are members of a VLAN: Connect your computer to the same network as the switch.
Page 85 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select System > Services > DHCP Snooping > Interface Configuration. Select one or more interfaces by taking one of the following actions: •...
Page 86 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Binding Configuration You can view, add, and remove static bindings in the DHCP snooping bindings database and view or clear the dynamic bindings in the bindings table.
Page 87: Set Up Poe Timer Schedules
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 16. DHCP Dynamic Configuration information Field Description Interface The interface on which the DHCP client message was received. MAC Address The MAC address associated with the DHCP client that sent the message. This is the key to the binding database.
Page 88: Specify The Settings For A Poe Timer Schedule
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select System > Timer Schedule > Basic > Timer Global Configuration. Select the Admin Mode Enable radio button. By default, the Disable button is selected and PoE timer schedules are disabled.
Page 89 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Timer Schedule Name menu, select the name of the timer schedule that you want to configure. You can select only names of schedules that you created (see...
Page 90: Delete A Poe Timer Schedule
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Every Month(s) field, enter a number from 0 to 65534 to specify that the schedule must be triggered every specified number of months. If the number of months is not specified, or if you enter 0, then the schedule is triggered only once.
Page 91 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select System > Timer Schedule > Advanced > Timer Global Configuration. The Timer Schedule Configuration page displays. Select the check box for the timer schedule that you want to delete.
Page 92: Chapter 3 Configure Switching
Configure Switching This chapter contains the following sections: • Configure Port Settings • Configure Link Aggregation Groups • Configure VLANs • Configure a Voice VLAN • Configure Auto-VoIP • Configure Spanning Tree Protocol • Configure Multicast • View and Configure the MAC Address Table...
Page 93: Configure Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Port Settings You can view, configure, and monitor the physical port information for the ports (that is, the physical interfaces) on the switch. ...
Page 94 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Note: After you change the autonegotiation mode, the switch might be inaccessible for a number of seconds while the new settings take effect. In the Speed field, specify the speed value for the selected port.
Page 95: Configure Link Aggregation Groups
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 a pause frame to stop traffic on a port if the amount of memory used by the packets on the port exceeds a preconfigured threshold and responds to pause requests from partner devices.
Page 96: Configure Lag Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure LAG Settings You can group one or more full-duplex Ethernet links to be aggregated together to form a link aggregation group, which is also known as a port channel. The switch treats the LAG as if it were a single link.
Page 97: Configure Lag Membership
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the STP Mode menu, select the Spanning Tree Protocol (STP) administrative mode associated with the LAG. The possible values are as follows: • Disable. Spanning tree is disabled for this LAG.
Page 98: Set The Lacp System Priority
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select Switching > LAG > Basic > LAG Membership. From the LAG ID menu, select the LAG ID.
Page 99: Set The Lacp Port Priority Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select Switching > LAG > Advanced > LACP Configuration. In the LACP System Priority field, specify the device’s link aggregation priority relative to the devices at the other ends of the links on which link aggregation is enabled.
Page 100: Configure Vlans
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select one or more interfaces by taking one of the following actions: • To configure a single interface, select the check box associated with the interface, or type the interface number in the Go To Interface field and click the Go button.
Page 101: Configure Vlan Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Each VLAN in a network is assigned an associated VLAN ID, which appears in the IEEE 802.1Q tag in the Layer 2 header of packets transmitted on a VLAN. An end station can omit the tag, or the VLAN portion of the tag, in which case the first switch port to receive the packet can either reject it or insert a tag using its default VLAN ID.
Page 102 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the VLAN Name field, specify a name for the VLAN. The VLAN name can be up to 32 alphanumeric characters long, including blanks. The default is blank.
Page 103: Configure Vlan Membership
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Reset a VLAN to Its Default Settings  To reset a VLAN to its default settings: Connect your computer to the same network as the switch.
Page 104 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 105: View Vlan Status
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • U (Untagged). Select the LAGs on which all frames transmitted for this VLAN are untagged. The LAGs that are selected are included in the VLAN.
Page 106: Configure Port Pvid Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 20. VLAN status Field Definition VLAN ID The VLAN identifier (VID) of the VLAN. The range of the VLAN ID is 1 to 4093.
Page 107 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Switching > VLAN > Advanced > Port PVID Configuration.
Page 108: Configure A Voice Vlan
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Ingress Filtering menu, select one of the following options: • Enable. The frame is discarded if this port is not a member of the VLAN with which this frame is associated.
Page 109 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Switching > VLAN > Advanced > Voice VLAN Configuration. Select the Admin Mode Disable or Enable radio button. This specifies the administrative mode for the voice VLAN for the switch. The default is Disable.
Page 110: Configure Auto-Voip
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the DSCP Value field, configure the Voice VLAN DSCP value for the port. The valid range is 0 to 63. The default is 0.
Page 111: Configure Auto-Voip Oui-Based Properties
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Switching > Auto-VoIP > Protocol-based > Port Settings. From the Prioritization Type menu, select Traffic Class or Remark. This specifies the type of prioritization.
Page 112: Configure Oui-Based Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Switching > Auto-VoIP > OUI-based > Properties. In the Auto-VoIP VLAN ID field, enter the VoIP VLAN ID of the switch. No default VLAN exists for Auto-VoIP, you must create a VLAN for Auto-VoIP.
Page 113: Manage The Oui Table
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select one or more interfaces by taking one of the following actions: • To configure a single interface, select the check box associated with the port, or type the port number in the Go To Interface field and click the Go button.
Page 114 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • 00:E0:75: VERILINK • 00:E0:BB: 3COM • 00:04:0D: AVAYA1 • 00:1B:4F: AVAYA2 • 00:04:13: SNOM You can select an existing OUI or add a new OUI and description to identify the IP phones on the network.
Page 115 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Description field, enter the description for the OUI. The maximum length of description is 32 characters. The following OUIs are present in the configuration by default: •...
Page 116: Display The Auto-Voip Status
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Display the Auto-VoIP Status You can display the Auto-VoIP status.  To view the Auto-VoIP status: Connect your computer to the same network as the switch.
Page 117: Configure Spanning Tree Protocol
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Spanning Tree Protocol The Spanning Tree Protocol (STP) provides a tree topology for any arrangement of bridges. STP also provides one path between end stations on a network, eliminating loops. Spanning tree versions supported include Common STP, Multiple STP, and Rapid STP.
Page 118 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Switching > STP > Basic > STP Configuration. The following figure does not show the STP Status section on the page. Configure the following options: •...
Page 119: Configure Cst Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 23. STP configuration status (continued) Field Description Root Port Port to access the designated root for the CST. Max Age (secs) The maximum age timer controls the maximum length of time in seconds that passes before a bridge port saves its configuration BPDU information.
Page 120 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Specify the CST options: • Bridge Priority. When switches or bridges are running STP, each is assigned a priority. After exchanging BPDUs, the switch with the lowest priority value becomes the root bridge.
Page 121: Configure Cst Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure CST Port Settings You can configure Common Spanning Tree (CST) and Internal Spanning Tree on a specific port on the switch. A port can become diagnostically disabled (D-Disable) when DOT1S experiences a severe error condition.
Page 122: View Cst Port Status
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the STP Status menu, select the option to enable or disable the spanning tree administrative mode that is associated with the port or port channel.
Page 123 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 124: View Rapid Stp Information
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 25. CST port status (continued) Field Description CST Regional Root Bridge identifier of the CST regional root. It is made up using the bridge priority and the base MAC address of the bridge.
Page 125: Manage Mst Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Manage MST Settings You can configure Multiple Spanning Tree (MST) on the switch. Configure an MST Instance  To configure an MST instance: Connect your computer to the same network as the switch.
Page 126 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 27. MST configuration Field Description Bridge Identifier The bridge identifier for the selected MST instance. It is made up using the bridge priority and the base MAC address of the bridge.
Page 127: Configure The Mst Port Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. Delete an MST Instance  To delete an MST instance: Connect your computer to the same network as the switch.
Page 128 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 129 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 28. MST port status information Field Description Auto-calculated Port Path Displays whether the path cost is automatically calculated (Enabled) or not Cost (Disabled).
Page 130: View Stp Statistics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View STP Statistics You can view information about the number and type of bridge protocol data units (BPDUs) transmitted and received on each port. ...
Page 131: Configure Multicast
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 29. STP Statistics (continued) Field Description MSTP BPDUs Received Number of MSTP BPDUs received at the selected port. MSTP BPDUs Transmitted Number of MSTP BPDUs transmitted from the selected port.
Page 132: View The Mfdb Statistics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Click the Go button. If the address exists, the entry is displayed. An exact match is required. The following describes the nonconfigurable information on the page.
Page 133: Igmp Snooping Overview
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 31. MFDB Statistics information Field Description Max MFDB Table Entries The maximum number of entries that the Multicast Forwarding Database table can hold.
Page 134: Configure Igmp Snooping
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure IGMP Snooping You can configure the parameters for IGMP snooping, which is used to build forwarding lists for multicast traffic.  To configure IGMP snooping: Connect your computer to the same network as the switch.
Page 135: Configure Igmp Snooping For Interfaces
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately. To refresh the page with the latest information about the switch, click the Update button.
Page 136 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select one or more interfaces by taking one of the following actions: • To configure a single interface, select the check box associated with the port, or type the port number in the Go To Interface field and click the Go button.
Page 137: View The Igmp Snooping Table
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View the IGMP Snooping Table You can view all of the entries in the Multicast Forwarding Database that were created for IGMP snooping.  To view the entries in the IGMP snooping table: Connect your computer to the same network as the switch.
Page 138: Configure Igmp Snooping For Vlans
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 33. IGMP Snooping Table information (continued) Field Description Description The text description of this multicast table entry. Possible values are Management Configured, Network Configured, and Network Assisted.
Page 139: Modify Igmp Snooping Settings For A Vlan
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Host Timeout. Specify the time that the switch must wait for a report for a particular group for the specified VLAN ID. The valid range is the value in the Maximum Response Time plus 1 to 3600 seconds.
Page 140: Igmp Snooping Querier Overview
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 IGMP Snooping Querier Overview IGMP snooping requires that one central switch or router periodically query all end-devices on the network to announce their multicast memberships. This central device is the IGMP querier.
Page 141: Configure Igmp Snooping Querier For Vlans
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Snooping Querier IP Address. Enter the snooping querier IP address to be used as the source address in periodic IGMP queries. This address is used when no address is configured on the VLAN on which a query is being sent.
Page 142: Display Igmp Snooping Querier For Vlan Status
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the following settings: • VLAN ID. The VLAN ID for which the IGMP snooping querier is to be enabled. • Querier Election Participate Mode. Enable or disable querier this mode: Disable.
Page 143: Configure A Static Multicast Group
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 34. Querier VLAN Status information Field Description VLAN ID The VLAN ID on which IGMP snooping querier is administratively enabled and the VLAN exists in the VLAN database.
Page 144: Remove A Static Multicast Group
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select Switching > Multicast > Static Multicast Address > Multicast Group Configuration. From the VLAN ID menu, select the VLAN ID.
Page 145: Configure Multicast Group Membership
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 146 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the VLAN ID menu, select the VLAN ID for the VLAN in which the multicast group is located. If a name is associated with the VLAN, the name displays in the VLAN Name field.
Page 147: Configure The Multicast Forward All Option
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately. Configure the Multicast Forward All Option After IGMP snooping is enabled, multicast packets are forwarded only to the members of multicast groups.
Page 148: View And Configure The Mac Address Table
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • To display LAGs only, click the LAG link. • To display both physical ports and LAGs, click the All link. Select one or more interfaces by taking one of the following actions: •...
Page 149 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Switching > Address Table > Basic > Address Table.
Page 150: Set The Dynamic Address Aging Interval
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 36. MAC Address Table information (continued) Field Description Interface The interface upon which this address was learned. Status The status of this entry. The meanings of the values are as follows: •...
Page 151: Configure A Static Mac Address
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. Configure a Static MAC Address  To configure a static MAC address: Connect your computer to the same network as the switch.
Page 152: Chapter 4 Configure Quality Of Service
Configure Quality of Service In a switch, each physical port consists of one or more queues for transmitting packets on the attached network. Multiple queues per port are often provided to give preference to certain packets over others based on user-defined criteria. When a packet is queued for transmission in a port, the rate at which it is serviced depends on how the queue is configured and possibly the amount of traffic present in the other queues of the port.
Page 153: Manage Class Of Service
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Manage Class of Service The Class of Service (CoS) queueing feature lets you directly configure certain aspects of switch queueing. This provides the desired QoS behavior for different types of network traffic when the complexities of DiffServ are not required.
Page 154 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select QoS > CoS > Basic > CoS Configuration. Either configure the same CoS trust mode settings for all CoS-configurable interfaces or configure CoS settings per interface: •...
Page 155: Configure Cos Interface Settings For An Interface
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure CoS Interface Settings for an Interface You can configure the trust mode for one or more interfaces and apply an interface shaping rate to all interfaces or to a specific interface.
Page 156: Configure Cos Queue Settings For An Interface
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Interface Trust Mode menu, select one of the following trust mode options for ingress traffic on the selected interfaces: • Untrusted. Do not trust any CoS packet marking at ingress.
Page 157 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The login window opens. Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select QoS > CoS > Advanced > Interface Queue Configuration.
Page 158: 802.1P To Queue Mapping
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The Queue Management Type field displays the queue depth management technique that is used for queues on the interface. By default, this method is Taildrop, irrespective of your selection from the Scheduler Type menu.
Page 159: Dscp To Queue Mapping
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the 802.1p to Queue Mapping table, map each of the eight 802.1p priorities to a queue (internal traffic class). The 802.1p Priority row contains traffic class selectors for each of the eight 802.1p priorities to be mapped.
Page 160: Manage Differentiated Services
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 For each DSCP value, select from the corresponding Queue menu which internal traffic class must be mapped to the DSCP value. The traffic class is the hardware queue for a port. Higher traffic class values indicate a higher queue position.
Page 161: Diffserv Configuration Overview
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 DiffServ Configuration Overview To use DiffServ for QoS, you must enable DiffServ (see Enable the DiffServ Mode and View the DiffServ Status on page 161) and define the following categories and their criteria: Class.
Page 162 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 163: Configure A Diffserv Class
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 37. DiffServ Status information (continued) Field Description Policy Attributes table The number of configured policy attributes (attached to the policy class instances) out of the total allowed on the switch.
Page 164 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The Class Name field also lists all the existing DiffServ class names, from which one can be selected for modification or deletion. From the Class Type menu, select the class type.
Page 165 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 values for the Class of Service match criterion in the range 0 to 7 from which one can be selected. • VLAN. Select this radio button to require a packet’s VLAN ID to match a VLAN ID or a VLAN ID within a continuous range.
Page 166 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Destination IP. Select this radio button to require a packet’s destination IP address to match the specified IP address. After you select the radio button, use the following fields to configure the destination IP address match criteria: Address.
Page 167 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Rename an Existing DiffServ Class  To rename an existing DiffServ class: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 168: Configure A Diffserv Policy
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The Class Name page displays. Click the class name, which is a hyperlink. The page on which you can change the class configuration displays. Change the class configuration as needed.
Page 169 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 170 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Assign Queue menu, select the queue to which packets of this policy class must be assigned. This is an integer value in the range 0 to 7.
Page 171 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you select the Simple Policy radio button, you can specify the traffic policing style for the class: • Color Mode. From the menu, select one of the following options: Color Blind.
Page 172 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 39. DiffServ policy configuration policy attributes Field Description Policy Name Displays the name of the DiffServ policy.
Page 173 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 174: Configure The Diffserv Service Interface
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the DiffServ Service Interface You can activate a policy on an interface. Attach a DiffServ Policy to an Interface  To attach a DiffServ policy to an interface: Connect your computer to the same network as the switch.
Page 175 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Policy Name menu, select a policy name. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.
Page 176: View Diffserv Service Statistics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View DiffServ Service Statistics You can display service-level statistical information about all interfaces to which DiffServ policies are attached.  To view the DiffServ service statistics: Connect your computer to the same network as the switch.
Page 177 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 41. DiffServ Service Statistics information (continued) Field Description Discarded Packets A count of the total number of packets discarded for all class instances in this service policy for any reason due to DiffServ treatment.
Page 178: Chapter 5 Manage Device Security
Manage Device Security This chapter contains the following sections: • Configure the Management Security Settings • Configure Management Access • Configure Port Authentication • Configure Traffic Control • Configure Access Control Lists...
Page 179: Configure The Management Security Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the Management Security Settings You can configure the login password, Remote Authorization Dial-In User Service (RADIUS) settings, Terminal Access Controller Access Control System (TACACS) settings, and authentication lists.
Page 180: Configure Radius Servers
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The entered password is displayed in dots. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately. Note:...
Page 181 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The login window opens. Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Security > Management Security > RADIUS > Global Configuration.
Page 182 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From he Accounting Mode menu, select to disable or enable RADIUS accounting on the server. The default is Disabled. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.
Page 183 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Server Address field, specify the IP address of the RADIUS server. In the Authentication Port field, specify the UDP port number the server uses to verify the RADIUS server authentication.
Page 184 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Field Description Access Requests The number of RADIUS access-request packets sent to this server. This number does not include retransmissions. Access Retransmissions The number of RADIUS access-request packets retransmitted to this server.
Page 185 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select Security > Management Security > RADIUS > Server Configuration. The Server Configuration page displays.
Page 186 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure a RADIUS Accounting Server You can view and configure various settings for a RADIUS accounting server on the network. Add a RADIUS Accounting Server to the Switch ...
Page 187 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Click the Add button. The server is added to the switch. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.
Page 188 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Modify the Settings for a RADIUS Accounting Server on the Switch  To modify the settings for a RADIUS accounting server on the switch: Connect your computer to the same network as the switch.
Page 189: Configure Tacacs
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The Accounting Server Configuration page displays. Click the Delete button. The RADIUS accounting server is removed. Click the Apply button. The updated configuration is sent to the switch. Configuration changes take effect immediately.
Page 190 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Key String field, specify the authentication and encryption key for TACACS+ communications between the switch and the TACACS+ server. The valid range is 0–128. The key must match the key configured on the TACACS+ server.
Page 191: Configure Authentication Lists
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The priority determines the order in which the TACACS+ servers are contacted when attempting to authenticate a user. A value of 0 is the highest priority. The valid range is 0–65535.
Page 192 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Security > Management Security > Authentication List > HTTP Authentication List. Select the check box next to the httpList name. From the menu in the 1 column, select the authentication method that must be used first in the selected authentication login list.
Page 193 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure an HTTPS Authentication List You can configure the default login list for secure HTTP (HTTPS).  To configure an HTTPS authentication list: Connect your computer to the same network as the switch.
Page 194: Configure Management Access
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • TACACS+. The user’s ID and password are authenticated using the TACACS+ server. If you select RADIUS or TACACS+ as the first method and an error occurs during the authentication, the switch attempts user authentication Method 2.
Page 195: Configure Https Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Security > Access > HTTP > HTTP Configuration. In the HTTP Session Soft Timeout field, specify the number of minutes an HTTP session can be idle before a time-out occurs.
Page 196 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 197: Manage Certificates
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. Manage Certificates You can manage certificates. Generate an SSL Certificate  To generate an SSL certificate: Connect your computer to the same network as the switch.
Page 198: Download Certificates
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Delete an SSL Certificate  To delete an SSL certificate: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 199 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 200: Configure Access Control
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Access Control Access control allows you to configure a profile and set access rules. Configure an Access Control Profile You can set -up a security access profile.
Page 201: Configure Access Rule Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. To refresh the page with the latest information about the switch, click the Update button.
Page 202: Configure Port Authentication
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Rule Type menu, select Permit or Deny to permit or deny access when the selected rules are matched. A Permit rule allows access by traffic that matches the rule criteria. A Deny rule blocks traffic that matches the rule criteria.
Page 203: Configure Global 802.1X Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Global 802.1X Settings You can configure global port access control settings on the switch.  To globally enable all 802.1X features: Connect your computer to the same network as the switch.
Page 204: Manage Port Authentication
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Manage Port Authentication You can enable and configure port access control on one or more ports. Configure 802.1X Settings for a Port  To configure 802.1X settings for a port: Connect your computer to the same network as the switch.
Page 205 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Unauthorized. The system denies the selected interface system access by moving the interface into unauthorized state. The switch cannot provide authentication services to the client through the interface.
Page 206 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 44. Port authentication status information Field Description Control Direction The control direction for the specified port, which is always Both. The control direction dictates the degree to which protocol exchanges take place between supplicant and authenticator.The unauthorized controlled port exerts control over...
Page 207 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The login window opens. Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Security > Port Authentication > Advanced > Port Authentication.
Page 208: View The Port Summary
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View the Port Summary You can view summary information about the port-based authentication settings for each port.  To view the port summary: Connect your computer to the same network as the switch.
Page 209 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the nonconfigurable information on the page. Table 45. Port summary Field Description Port The port for which the settings are displayed in the table row.
Page 210: Configure Traffic Control
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Traffic Control You can configure MAC filters, storm control, port security, protected port, and private VLAN settings. Manage MAC Filtering You can create MAC filters that limit the traffic that is allowed into specified ports on the switch.
Page 211 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the MAC Filter menu, select Create Filter. If you did not configure any filters, this is the only option available. From the VLAN ID menu, select the VLAN that must be used with the MAC address.
Page 212: Mac Filter Summary
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 MAC Filter Summary You can view the MAC filters that are configured on the switch.  To view the MAC filter summary: Connect your computer to the same network as the switch.
Page 213 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  To configure storm control settings: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 214: Configure Port Security
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Storm Control section, from the Ingress Control Mode menu, select the mode of broadcast affected by storm control: • Disabled. Storm control is disabled. This is the default setting.
Page 215 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Security > Traffic Control > Port Security > Port Security Configuration.
Page 216 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Static locking allows you to specify a list of MAC addresses that are allowed on a port. The behavior of packets is the same as for dynamic locking: only packets with an allowable source MAC address can be forwarded.
Page 217 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Specify the following settings: • Port Security. Enable or disable the port security feature for the selected interfaces The default is Disable. • Max Learned MAC Address. Specify the maximum number of dynamically learned MAC addresses on the selected interfaces.
Page 218: Configure Protected Ports
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 For more information, see Configure a Port Security Interface on page 215. Select Security > Traffic Control > Port Security > Security MAC Address. From the Port List menu, select the individual interface.
Page 219: Configure Access Control Lists
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 220: Use The Acl Wizard To Create A Simple Acl
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 A rule can identify protocols, source, and destination IP and MAC addresses, and other packet-matching criteria. Use the ID number to assign the ACL to a port or to a LAG (see...
Page 221 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the ACL Type menu, select the type of ACL. You can select from the following ACL types: • ACL Based on Destination MAC. Creates an ACL based on the destination MAC address, destination MAC mask, and VLAN.
Page 222 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • True. Signifies that all packets must match the selected ACL and rule and are either permitted or denied. In this case, since all packets match the rule, the option of configuring other match criteria is not offered.
Page 223 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 c. In the VLAN ID field, specify which VLAN must be compared against the information in an Ethernet frame. Valid range of values is 1 to 4093. Either a VLAN range or VLAN can be configured.
Page 224 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Delete an ACL Rule  To delete an ACL rule: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 225: Configure A Mac Acl
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 For information about the ACL Wizard, see Use the ACL Wizard to Create a Simple ACL page 220. Configure a MAC ACL A MAC ACL consists of a set of rules that are matched sequentially against a packet. When a packet meets the match criteria of a rule, the specified rule action (Permit or Deny) is taken, and the additional rules are not checked for a match.
Page 226 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The MAC ACL Table displays the number of ACLs currently configured in the switch and the maximum number of ACLs that can be configured. The current size is equal to the number of configured IPv4 plus the number of configured MAC ACLs.
Page 227: Configure Mac Acl Rules
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Delete a MAC ACL  To delete a MAC ACL: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 228 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select Security > ACL > Basic > MAC Rules. The following figure does not show all columns.
Page 229 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Destination MAC Mask field, specify the destination MAC address mask that must be compared against the information in an Ethernet frame. The valid format is xx:xx:xx:xx:xx:xx. The BPDU keyword can be specified using a destination MAC mask of 00:00:00:ff:ff:ff.
Page 230 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 five-minute report interval is used for the switch. A trap is not issued if the ACL rule hit count is zero for the interval. This field is only supported for a deny action.
Page 231: Configure Mac Bindings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The login window opens. Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Security > ACL > Basic > MAC Rules.
Page 232 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the ACL ID menu, select an ACL. The fixed selection from the Direction menu is Inbound, which means that MAC ACL rules are applied to traffic entering the interface.
Page 233: View Or Delete Mac Acl Bindings In The Mac Binding Table
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the columns in the Interface Binding Status table on the page. Table 48. Interface Binding Status table Field Description Interface The interface of the ACL assigned.
Page 234: Configure An Ip Acl
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The binding is removed. The following table describes the nonconfigurable information on the page. Table 49. MAC Binding Table Field Description Interface The interface of the ACL assigned.
Page 235 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select Security > ACL > Advanced > IP ACL. The previous figure shows an example. The IP ACL page shows the current size of the ACL table compared to the maximum size of the ACL table.
Page 236: Configure Rules For A Basic Ip Acl
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Delete an IP ACL  To delete an IP ACL: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 237 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 238 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Deny. Drop packets that meet the ACL criteria. • Egress Queue. If the selection form the Action menu is Permit, you can specify the hardware egress queue identifier that is used to handle all packets matching this IP ACL rule.
Page 239 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Security > ACL > Advanced > IP Rules. The IP Rules page displays. From the ACL ID menu, select the ACL that includes the rule that you want to modify.
Page 240: Configure Rules For An Extended Ip Acl
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure Rules for an Extended IP ACL You can define rules for extended IP-based ACLs. The access list definition includes rules that specify whether traffic that is matching the criteria is forwarded normally or discarded.
Page 241 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Configure the following match criteria for the rule: • Sequence Number. Enter a whole number in the range of 1 to 10 that is used to identify the rule.
Page 242 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Src. In the Src field, enter a source IP address, using dotted-decimal notation, to be compared to a packet’s source IP address as a match criterion for the selected IP ACL rule: Enter an IP address or an IP address range.
Page 243 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Other from the menu to enter a port number. If you select Other from the menu but leave the field blank, it means any.
Page 244: Configure Ip Acl Interface Bindings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select Security > ACL > Advanced > IP Extended Rules. The IP Rules page displays. From the ACL ID menu, select the ACL that includes the rule that you want to modify.
Page 245 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  To bind an IP ACL to one or more interfaces: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 246: View Or Delete Ip Acl Bindings In The Ip Acl Binding Table
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 highest sequence number currently in use for this interface and direction is used. The valid range is 1–4294967295. To add the selected ACL to a port or LAG, in the Ports table or LAG table, click the port or LAG so that a check mark displays.
Page 247 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select Security > ACL > Advanced > Binding Table. To delete an IP ACL-to-interface binding, do the following: a. Select the check box next to the interface.
Page 248: Chapter 6 Monitor The System
Monitor the System This chapter contains the following sections: • Monitor the Switch and the Ports • Configure and View Logs • Configure Port Mirroring...
Page 249: Monitor The Switch And The Ports
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Monitor the Switch and the Ports You can display information about the amount and type of traffic that is transmitted from and received by the switch.
Page 250 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Click the Update button to refresh the page with the latest information about the switch. Click the Clear button to clear all the statistics counters, resetting all switch summary and detailed statistics to default values.
Page 251 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 52. Switch statistics (continued) Field Description Receive Packets Discarded The number of inbound packets that were chosen to be discarded, even though no errors were detected, in order to prevent their being delivered to a higher-layer protocol.
Page 252: View Port Statistics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 View Port Statistics You can display a summary of per-port traffic statistics on the switch.  To view port statistics: Connect your computer to the same network as the switch.
Page 253 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The following table describes the per-port statistics on the page. Table 53. Port statistics Field Description Interface This object indicates the interface of the interface table entry associated with this port on an adapter.
Page 254: View Detailed Port Statistics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Reset Counters for a Specific Interface  To reset the counters for a specific interface: Connect your computer to the same network as the switch.
Page 255 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Monitoring > Ports > Port Detailed Statistics.
Page 256 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 54. Detailed port statistics (continued) Field Description Port Channel ID If the port is a member of a port channel, the port channel’s interface ID and name are shown.
Page 257 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 54. Detailed port statistics (continued) Field Description Packets RX and TX 256-511 The total number of packets (including bad packets) received or transmitted that...
Page 258 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 54. Detailed port statistics (continued) Field Description Multicast Packets Received The total number of good packets received that were directed to a multicast address. This number does not include packets directed to the broadcast address.
Page 259 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 54. Detailed port statistics (continued) Field Description Packets Transmitted 65-127 The total number of packets (including bad packets) received that were between Octets 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets).
Page 260: View Eap Statistics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 54. Detailed port statistics (continued) Field Description Multiple Collision Frames A count of the number of successfully transmitted frames on a particular interface for which transmission is inhibited by more than one collision.
Page 261 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The System Information page displays. Select Monitoring > Ports > EAP Statistics. To refresh the page with the latest information about the switch, click the Update button.
Page 262: Perform A Cable Test
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 55. EAP statistics Field Description EAPOL Length Error Frames This displays the number of EAPoL frames that were received by this Received authenticator in which the frame type is not recognized.
Page 263: Configure And View Logs
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select the check boxes that are associated with the physical ports for which you want to test the cables. Click the Apply button. A cable test is performed on all selected ports. The cable test might take up to two seconds to complete.
Page 264 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 For the message log, only the latest 64 entries are displayed on the page.  To configure the memory log settings: Connect your computer to the same network as the switch.
Page 265: Message Log Format
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The updated configuration is sent to the switch. Configuration changes take effect immediately. The Memory Log table displays on the Memory Log page. The Total number of Messages field displays the number of messages the system logged in memory.
Page 266: Manage The Flash Log
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Manage the Flash Log The flash log is a persistent log, that is, is a log that is stored in persistent storage. Persistent storage survives across platform reboots. The first log type is the system startup log. The system startup log stores the first 32 messages received after system reboot.
Page 267: Manage The Server Log
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Error (3). A device error occurred, such as a port being offline. Warning (4). The lowest level of a device warning. Notice (5). Normal but significant conditions. Provides the network administrators with device information.
Page 268 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The login window opens. Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Monitoring > Logs > Server Log.
Page 269 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Monitoring > Logs > Server Log. The Server Log Configuration page displays. Specify the following settings: • IP Address Type. Specify the IP address type of the host, which can be IPv4, IPv6, or DNS.
Page 270: View The Trap Logs
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Monitoring > Logs > Server Log.
Page 271 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  View the trap logs and clear the counters: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 272: Configure Port Mirroring
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 57. Trap Logs information (continued) Field Description System Up Time The time when this trap occurred, expressed in days, hours, minutes, and seconds, since the last reboot of the switch.
Page 273 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select an Admin Mode radio button: • True. Port mirroring is enabled. • False. Port mirroring is enabled. From the Destination Port menu, select the destination port to which port traffic must be copied.
Page 274 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Tx and Rx. Monitors transmitted and received packets. • Rx. Monitors received (ingress) packets only. • Tx. Monitors transmitted (egress) packets only. Click the Apply button.
Page 275: Chapter 7 Maintenance
Maintenance This chapter contains the following sections: • Reboot the Switch • Reset the Switch to Its Factory Default Settings • Upload a File From the Switch • Download a File to the Switch • Manage Files • Perform Troubleshooting...
Page 276: Reboot The Switch
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Reboot the Switch You can reboot the switch from the web management interface.  To reboot the switch: Connect your computer to the same network as the switch.
Page 277: Upload A File From The Switch
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2  To reset the switch to the factory default settings: Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 278 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see...
Page 279: Upload A File Using Http
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the Server Address field, enter the IP address of the server in accordance with the format indicated by the server address type. The default is the IPv4 address 0.0.0.0.
Page 280: Download A File To The Switch
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the File Type menu, select the type of file: • Archive. The archive is the system software image, which is saved in one of two flash sectors called images (image1 and image2).
Page 281 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 You can also download files by using HTTP. See Download a File to the Switch Using HTTP on page 282 for additional information.  To download a file to the switch from a TFTP server: Connect your computer to the same network as the switch.
Page 282: Download A File To The Switch Using Http
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Note: We recommended that you do not overwrite the active image. If you do so, the switch displays a warning that you are trying to overwrite the active image.
Page 283 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 The default password is password. The System Information page displays. Select Maintenance > Download > HTTP File Download. From the File Type menu, select the type of file: •...
Page 284: Manage Files
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Note: After a file transfer is started, wait until the page refreshes. When the page refreshes, the option to select a file option is no longer available, indicating that the file transfer is complete.
Page 285: Delete An Image
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Select Maintenance > File Management > Dual Image Configuration. From the Image Name menu, select the image that is not the image displayed in the Current-active field.
Page 286: Display The Dual Image Status
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 From the Image Name menu, select the image that is not the image displayed in the Current-active field. The Current-active field displays the name of the active image. You cannot delete the active image.
Page 287: Perform Troubleshooting
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Perform Troubleshooting You can send a ping and perform a memory dump. Ping an IPv4 Address You can specify that the switch must send a ping request to a specified IP address. You can use this to check whether the switch can communicate with a particular IP station.
Page 288: Ping An Ipv6 Address
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 In the IP Address/Host Name field, enter the IP address or host name of the device that must be pinged. In the Count field, enter the number of echo requests that must be sent.
Page 289: Enable And Perform Remote Diagnostics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Enter the switch’s password in the Password field. The default password is password. The System Information page displays. Select Maintenance > Troubleshooting > Ping IPv6.
Page 290 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not know the IP address of the switch, see Change the Default IP Address of the Switch on page 9. The login window opens.
Page 291: Appendix A Configuration Examples
Configuration Examples This appendix contains information about how to configure the following features. The appendix contains the following sections: • Virtual Local Area Networks (VLANs) • Access Control Lists (ACLs) • Differentiated Services (DiffServ) • 802.1X • MSTP...
Page 292: Virtual Local Area Networks (Vlans)
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Virtual Local Area Networks (VLANs) A local area network (LAN) can generally be defined as a broadcast domain. Hubs, bridges, or switches in the same physical segment or segments connect all end node devices. End nodes can communicate with each other without the need for a router.
Page 293: Vlan Configuration Examples
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Packets leaving the switch are either tagged or untagged, depending on the setting for that port’s VLAN membership properties. A U for a given port means that packets leaving the switch from that port are untagged.
Page 294: Access Control Lists (Acls)
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 untagged packet as it leaves port 6. For port 5, the outgoing packet leaves as a tagged packet with VLAN ID 20. Access Control Lists (ACLs) ACLs ensure that only authorized users can access specific resources while blocking off any unwarranted attempts to reach network resources.
Page 295: Standard Ip Acl Sample Configuration
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Match Every. False • CoS. 0 • Destination MAC. 01:02:1A:BC:DE:EF • Destination MAC Mask. 00:00:00:00:FF:FF • EtherType. User Value. • Source MAC. 02:02:1A:BC:DE:EF •...
Page 296: Differentiated Services (Diffserv)
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 For additional information about IP ACL rules, see Configure Rules for a Basic IP ACL page 236. Click the Add button. On the IP Rules page, create a second rule for IP ACL 1 with the following settings: •...
Page 297: Class
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Two basic types of QoS are supported: • Integrated Services. Network resources are apportioned based on request and are reserved (resource reservation) according to network management policy (RSVP, for example).
Page 298: Diffserv Traffic Classes
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 DiffServ Traffic Classes With DiffServ, you define which traffic classes to track on an ingress interface. You can define simple BA classifiers (DSCP) and a wide variety of multifield (MF) classifiers: •...
Page 299: Diffserv Example Configuration
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 definition to convey some QoS characteristics to downstream switches that do not routinely look at the DSCP value in the IP header. • Policing. A method of constraining incoming traffic associated with a particular class so that it conforms to the terms of the TCS.
Page 300: 300
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 • Source Mask. 255.255.255.0. • Source L4 Port. Other, and enter 4567 as the source port value. • Destination IP Address. 192.12.2.0. • Destination Mask. 255.255.255.0.
Page 301 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 point of attachment to the LAN, such as a port of a MAC bridge and an association between stations or access points in IEEE 802.11 wireless LANs.
Page 302: 802.1X Example Configuration
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 controls the authorized/unauthorized state of the controlled port depending on the outcome of the RADIUS-based authentication process. Figure 1. 802.1X authentication roles 802.1X Example Configuration This example shows how to configure the switch so that 802.1X-based authentication is...
Page 303: Mstp
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 On the RADIUS Server Configuration page (see Add a Primary RADIUS Authentication Server to the Switch on page 182), configure a RADIUS server with the following settings: •...
Page 304 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 ensures that frames with a given VLAN ID are assigned to one and only one of the MSTIs or the IST within the region, that the assignment is consistent among all the networking devices in the region, and that the stable connectivity of each MSTI and IST at the boundary of the region matches that of the CST.
Page 305: Mstp Example Configuration
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 MSTP Example Configuration This example shows how to create an MSTP instance from the switch. The example network includes three different switches that serve different locations in the network. In this example, ports 1/0/1–1/0/5 are connected to host stations, so those links are not subject to network...
Page 306 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 If you do not specify a root bridge and all switches are assigned the same bridge priority value, the switch with the lowest MAC address is elected as the root bridge (see Configure CST Settings on page 119).
Page 307: Appendix B Specifications And Default Settings
Specifications and Default Settings This appendix describes the default settings for the switch and for its software features. The appendix contains the following sections: • Switch Default Settings • General Feature Default Settings • System Setup and Maintenance Settings • Port Characteristics •...
Page 308: Switch Default Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Switch Default Settings The following table describes the switch default settings. Table 59. Switch default settings Feature Default IP address 192.168.0.239 Subnet mask 255.255.255.0 Default gateway 192.168.0.254...
Page 309: General Feature Default Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 59. Switch default settings (continued) Feature Default MAC table address aging 300 seconds (dynamic addresses) Default VLAN ID Default VLAN name Default Voice VLAN...
Page 310 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 60. General feature default settings (continued) Feature Name/Setting Default EAPOL Flood Mode Disabled Port Control Auto Guest VLAN ID Guest VLAN Period Periodic Reauthentication...
Page 311 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 60. General feature default settings (continued) Feature Name/Setting Default CST Path Cost CST Priority Link Aggregation Lag Name LAG <n> where n is 1 to 8...
Page 312 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 60. General feature default settings (continued) Feature Name/Setting Default 802.1p to Queue Mapping (802.1p -> Queue) 0 -> 1 1 -> 0 2 -> 2 3 ->...
Page 313 NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 60. General feature default settings (continued) Feature Name/Setting Default DSCP to Queue Mapping (DSCP -> Queue) (11) 001011 -> 0 (continued from previous page) (13) 001101 ->...
Page 314: System Setup And Maintenance Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Table 60. General feature default settings (continued) Feature Name/Setting Default 802.1p to Queue Mapping (802.1p –> Queue) 0 -> 1 1 -> 0 2 -> 2 3 ->...
Page 315: Port Characteristics
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Port Characteristics The following table describes the port characteristics. Table 62. Port characteristics Feature Sets Supported Default Energy Efficient Ethernet (EEE) All ports Disabled Auto negotiating speed and...
Page 316: Quality Of Service Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 Quality of Service Settings The following table describes the Quality of Service settings. Table 64. Quality of Service settings Feature Sets Supported Default Number of queues 802.1p...
Page 317: System Management Settings
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2 System Management Settings The following table describes the system management settings. Table 66. System management settings Feature Sets Supported Default Multi-session web connections Enabled SNMPv1/v2...

NETGEAR GS724TPv2 User Manual

Chapter 1 Get Started

Chapter 2 Configure System Information

Chapter 3 Configure Switching

Chapter 4 Configure Quality of Service

Chapter 5 Manage Device Security

Chapter 6 Monitor the System

Chapter 7 Maintenance

Appendix A Configuration Examples

Appendix B Specifications and Default Settings

Quick Links

Need help?

Questions and answers

Related Manuals for NETGEAR GS724TPv2

Summary of Contents for NETGEAR GS724TPv2
