System 5 IP Software Setup

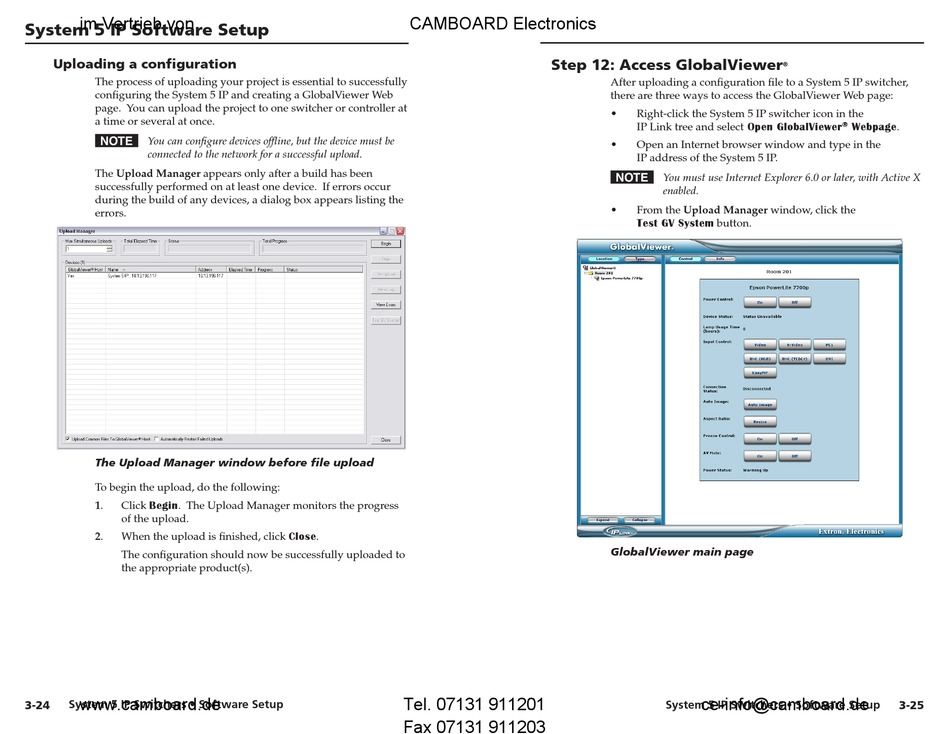

Uploadng a configuraton
The process of uploading your project is essential to successfully
configuring the System 5 IP and creating a GlobalViewer Web
page. You can upload the project to one switcher or controller at
a time or several at once.
N
You can configure devices offline, but the device must be
connected to the network for a successful upload.
The Upload Manager appears only after a build has been
successfully performed on at least one device. If errors occur
during the build of any devices, a dialog box appears listing the
errors.
The Upload Manager window before file upload
To begin the upload, do the following:
1. Click Begin. The Upload Manager monitors the progress
of the upload.
2. When the upload is finished, click Close.
The configuration should now be successfully uploaded to
the appropriate product(s).
www.camboard.de
3-24 System 5 IP Switchers • Software Setup
CAMBOARD Electronics
Step 12: Access GlobalVewer
Tel. 07131 911201
Fax 07131 911203
®
After uploading a configuration file to a System 5 IP switcher,
there are three ways to access the GlobalViewer Web page:
• Right-click the System 5 IP switcher icon in the
IP Link tree and select Open GlobalViewer
• Open an Internet browser window and type in the
IP address of the System 5 IP.
N
You must use Internet Explorer 6.0 or later, with Active X
enabled.
• From the Upload Manager window, click the
Test GV System button.
GlobalViewer main page
ce-info@camboard.de
System 5 IP Switchers • Software Setup
® Webpage.
3-25
