Set-up and installation

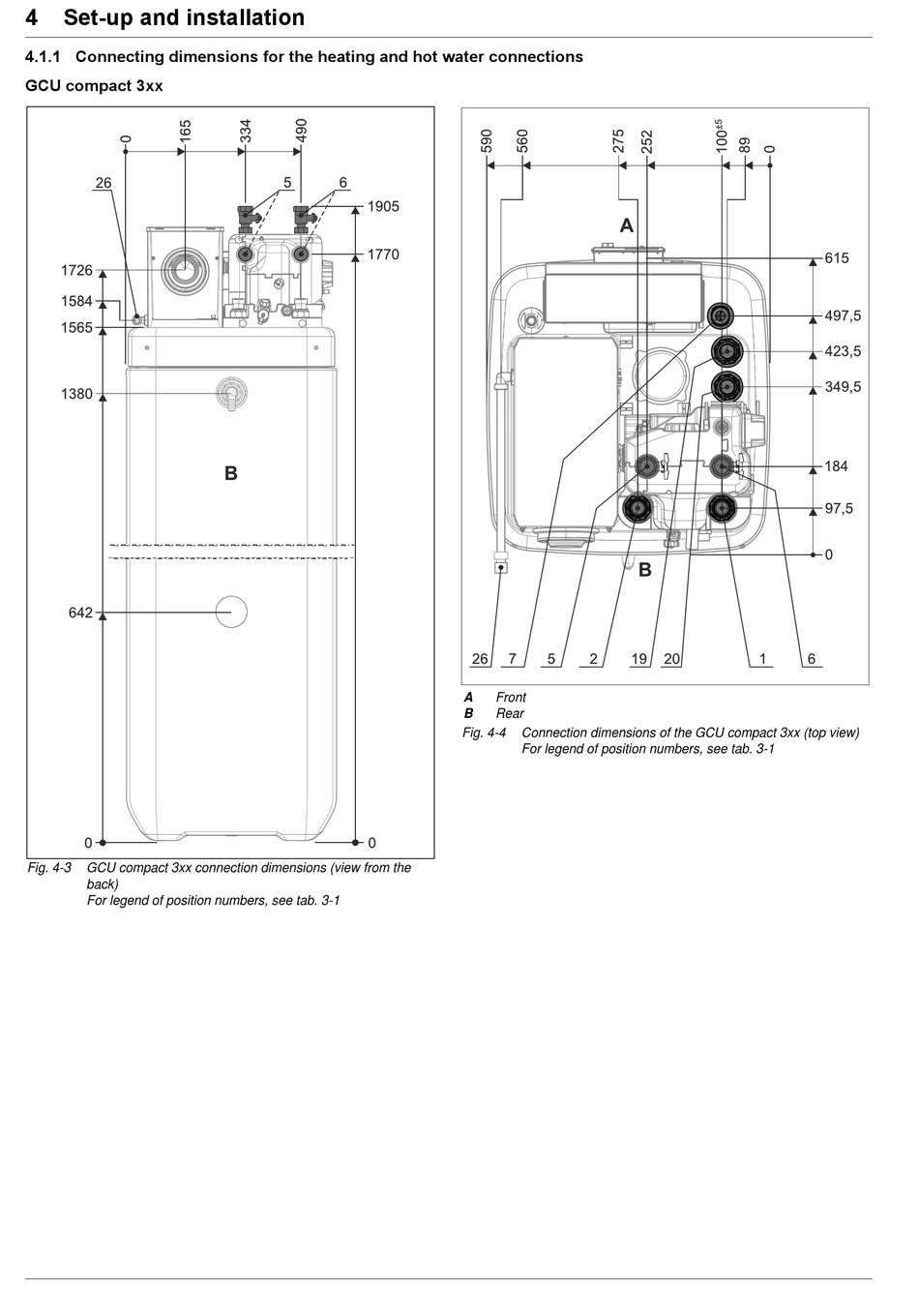

4.1.1 Connecting dimensions for the heating and hot water connections

GCU compact 3xx

Fig. 4-3

GCU compact 3xx connection dimensions (view from the



back)

For legend of position numbers, see tab. 3-1

Front

Rear

Fig. 4-4

Connection dimensions of the GCU compact 3xx (top view)

For legend of position numbers, see tab. 3-1


