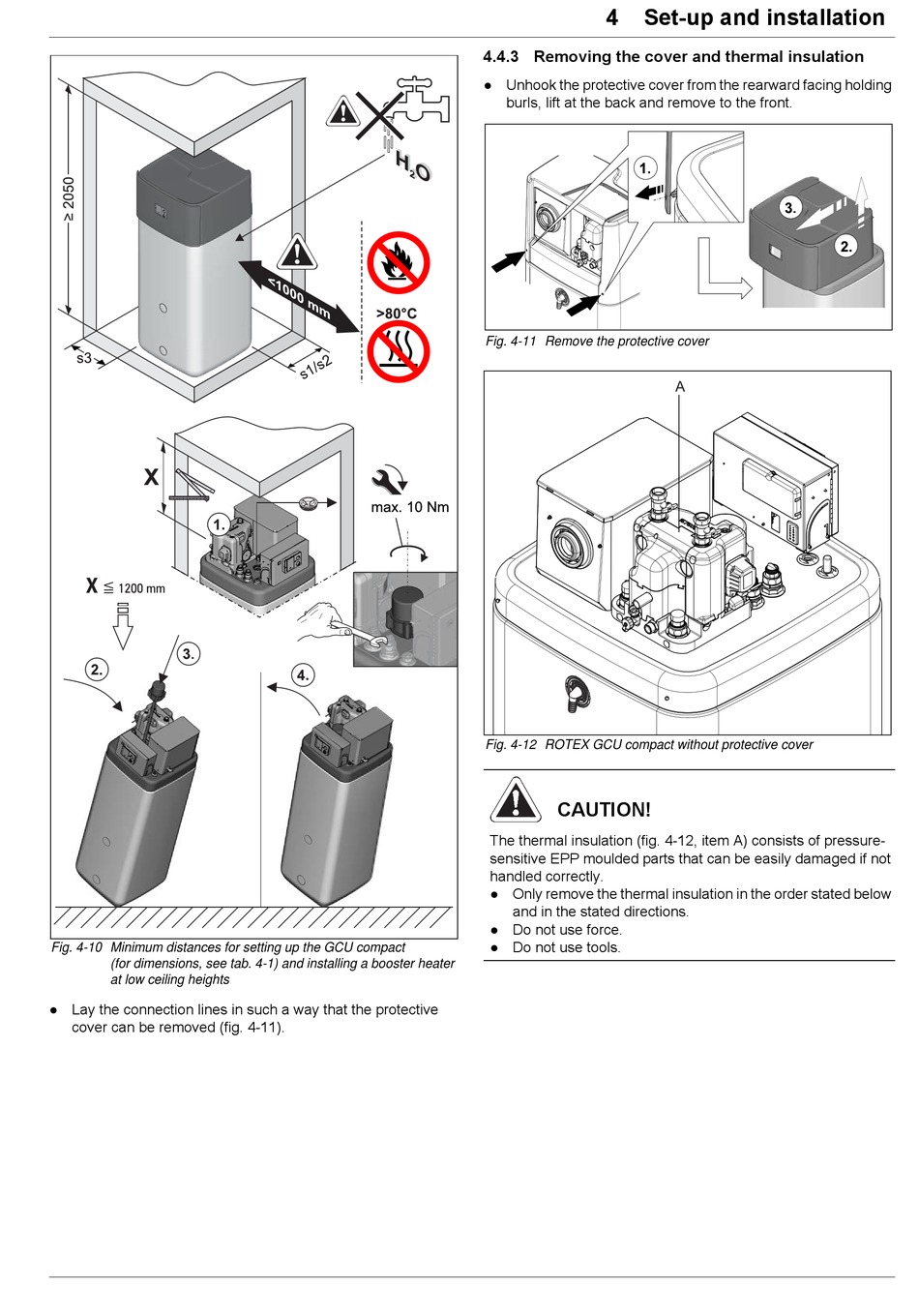

Fig. 4-10 Minimum distances for setting up the GCU compact
(for dimensions, see tab. 4-1) and installing a booster heater
at low ceiling heights
● Lay the connection lines in such a way that the protective
cover can be removed (fig. 4-11).

4.4.3 Removing the cover and thermal insulation

● Unhook the protective cover from the rearward facing holding
burls, lift at the back and remove to the front.
Fig. 4-11 Remove the protective cover
Fig. 4-12 ROTEX GCU compact without protective cover
CAUTION!
The thermal insulation (fig. 4-12, item A) consists of pressure-
sensitive EPP moulded parts that can be easily damaged if not
handled correctly.
● Only remove the thermal insulation in the order stated below
and in the stated directions.
● Do not use force.

● Do not use tools.
